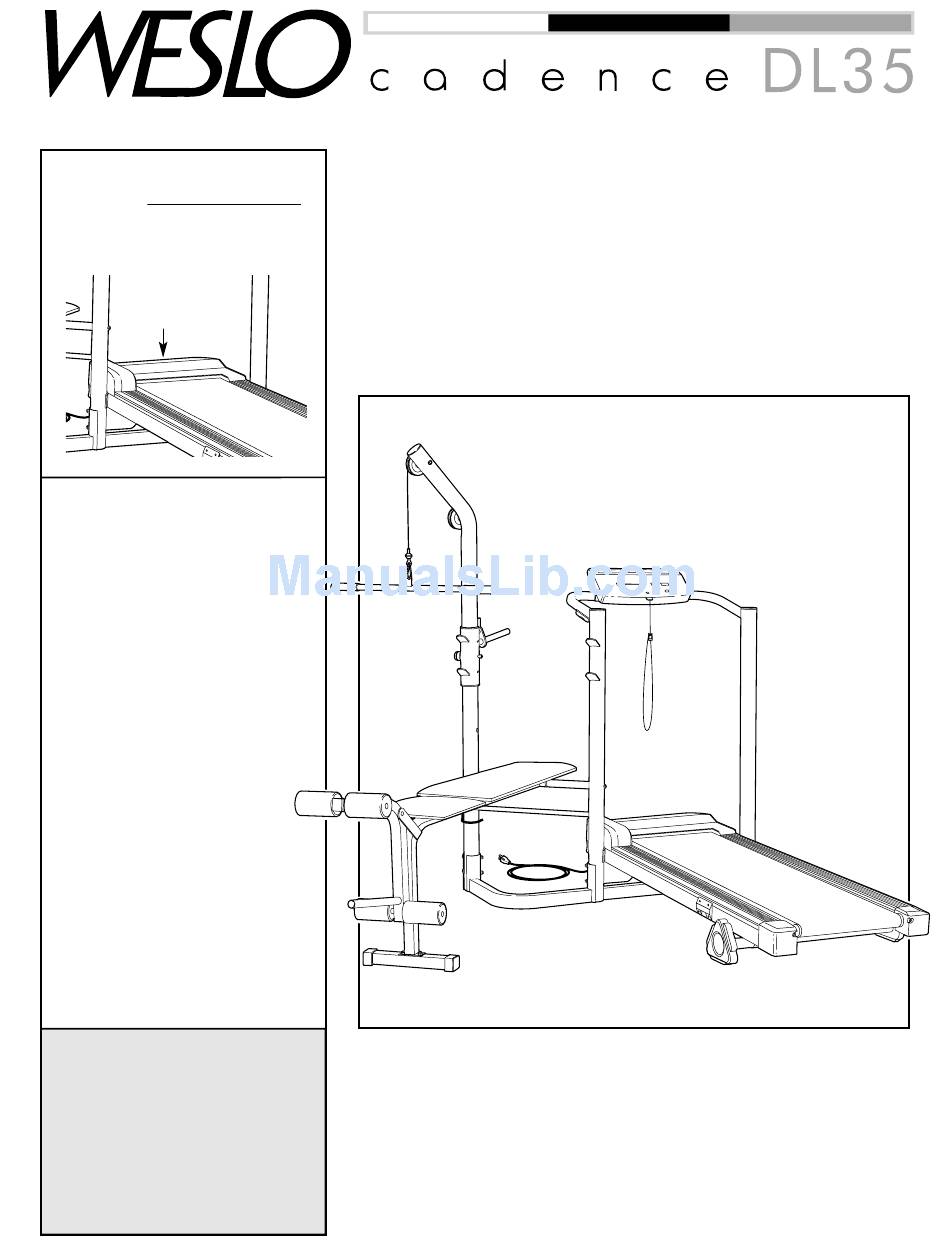

Model No. WLTL46080
Serial No.
Write the serial number in the
space above for future reference.
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are
committed to providing com-
plete customer satisfaction. If
you have questions, or if
there are missing parts, we
will guarantee complete satis-
faction through direct assis-
tance from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DI-
RECT TO OUR TOLL-FREE
CUSTOMER HOT LINE.
The trained technicians on
our customer hot line will
provide immediate assis-
tance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and
instructions in this manual
before using this equipment.
Keep this manual for future
reference.
USER'S MANUAL
Patent Pending

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WLTL46080 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Weslo WLTL46080

Summary of Contents for Weslo WLTL46080

  • Page 1 ® Model No. WLTL46080 Serial No. Write the serial number in the space above for future reference. Serial Number Decal QUESTIONS? As a manufacturer, we are committed to providing com- plete customer satisfaction. If you have questions, or if there are missing parts, we...

  • Page 2: Table Of Contents

    ® Table of Contents IMPORTANT PRECAUTIONS ..............3 BEFORE YOU BEGIN .

  • Page 3: Important Precautions

    WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and information before operating the WESLO 1. It is the responsibility of the owner to ensure that all users of the CADENCE DL35 are adequately informed of all warnings and precautions.
  • Page 4 23. The pulse sensor is not a medical device. Various factors, including the user's move- ment, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general. 24.

  • Page 5: Before You Begin

    Please note the product model num- ber and serial number before calling. The model num- ber is WLTL46080. The serial number can be found on a decal attached to the CADENCE DL35 (see the front cover of this manual for the location of the decal).

  • Page 6: Part Identification Chart

    Part Identification Chart This chart is provided to help you identify the small parts used in assembly. The number in parenthesis below each part refers to the key number of the part, from the Part List on page 23. 3/8" Jam Nut (11) Square Nut (30) 5/16"...

  • Page 7: Assembly

    Assembly Everything in this manual is designed to ensure that the CADENCE DL35 can be assembled suc- cessfully by anyone. However, it is important to recognize that the CADENCE DL35 contains many parts and that the assembly process will take time. Most people find that by setting aside plenty of time and by deciding to make the task enjoyable, assembly will go more smoothly.
  • Page 8 3. You have one of two types of Carriage Pins (38). If you have type 2 (refer to the drawing), make sure the Carriage Pin Knob (39) is attached to the Carriage Pin (38). Slide the Weight Carriage (23) onto the Lat Tower (34).
  • Page 9 6. Lay the Lat Cable (40) over a Pulley (42). Slide the Cable Trap (47) and Pulley onto a 3/8” x 1 1/2” Pulley Bolt (46). Next, insert a Square Nut (30) into the bracket on the Lat Tower (34) and insert a screwdriver up into the bracket to hold the Square Nut in place.
  • Page 10 10. Lubricate the 3/8” x 2 1/4” Bolt (10). Attach the Leg Lever (14) to the Bench Frame (5) with the Bolt and a 3/8” Jam Nut (11). Do not overtighten the Jam Nut. The Leg Lever must pivot freely. 11.
  • Page 11 14. Attach the Seat (9) to the bracket on the Bench Frame (5) with two 1/4” x 3/4” Screws (3). 15. Press a Frame Cap (7), into the Bench Frame (5). Insert the Bench Pivot Rod (8) through the Bench Frame (5) as shown.
  • Page 12 17. Insert the left end of the Bench Pivot Rod (8) into the indicated hole in the Lat Tower (34). Loosely thread a Bench Pivot Bolt (41) with a 5/16” Washer (102) into the end of the Bench Pivot Rod. Next, insert the right end of the Bench Pivot Rod (8) into the Upright (70) and slide the Corner Base (33) against the lower end of the Upright.

  • Page 13: How To Operate The Treadmill

    How to Operate the Treadmill THE PERFORMANT LUBE WALKING BELT Your treadmill features a walking belt coated with PERFORMANT LUBE , a high-performance lubricant. Important: Never apply silicone spray or other sub- stances to the walking belt or the walking platform. They will deteriorate the walking belt and cause ex- cessive wear.
  • Page 14 HOW TO LOWER THE TREADMILL FOR USE CAUTION: You must be able to safely lift 50 pounds (23 kg) in order to lower the treadmill. To lower the treadmill, hold the upper end of the treadmill with your right hand as shown.
  • Page 15 DIAGRAM OF THE CONSOLE Speed Control Note: If there is a thin sheet of clear plastic on the console, remove it. CAUTION: Before operating the con- sole, read the following important precautions. • Do not stand on the walking belt when turning on the power.
  • Page 16 Press the MODE button to select the desired monitor mode. The monitor offers five different modes to provide instant exercise feedback: • SPEED—displays your speed, in miles per hour. • TIME—displays the elapsed time. • DISTANCE—dis- plays the distance that you have walked or run, in miles.

  • Page 17: How To Exercise On The Treadmill

    How to Exercise on the Treadmill WARNING: Before beginning this or any exercise program, consult your physician. This is especially important for in- dividuals over the age of 35 or individuals with pre-existing health problems. The pulse sensor is not a medical device. Various factors, including the user's move- ment, may affect the accuracy of heart rate readings.

  • Page 18: Suggested Stretches

    SUGGESTED STRETCHES Move slowly as you stretch—never bounce. 1. Hamstring Stretch Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg. Reach toward your toes as far as possible. Hold for 15 counts, then relax.
  • Page 19 HOW TO ADJUST THE BACKREST To use the backrest in an inclined posi- Support tion, first lift the backrest. Insert the support rod Hook through the in- dicated holes in the lat tower and the up- right. Rotate the support rod to the locked position, with the hook clipped onto the lat tower as shown.

  • Page 20: How To Exercise On The Weight Bench

    How to Exercise on the Weight Bench The treadmill offers a variety of exercises designed to trim, tone, and strengthen the body. Please read these guidelines before using the weight bench. WARNING: Before beginning any exercise pro- gram, consult your physician. This is especially important for persons over the age of 35 or per- sons with pre-existing health problems.

  • Page 21: Trouble-Shooting And Maintenance

    Trouble-Shooting and Maintenance Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department toll- free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). PROBLEM: The power does not turn on SOLUTION: a.
  • Page 22 PROBLEM: The walking belt is off-center or slips when walked on SOLUTION: a. If the walking belt has shifted to the left, first re- move the key and UNPLUG THE POWER CORD. Using the allen wrench, turn the left rear roller adjust- ment bolt clockwise, and the right bolt counterclock- wise, 1/4 of a turn each.

  • Page 23: Part List

    Part List—Model No. WLTL46080 To identify parts listed below, refer to the Exploded Drawing attached in the center of this manual. To order replacement parts, see the back cover of this manual. Specifications are subject to change without notice. No. Qty.

  • Page 24: How To Order Replacement Parts

    • The KEY NUMBER and DESCRIPTION of the part(s) (see the Part List on page 23 of this manual and the Exploded Drawing attached in the center of this manual). WESLO is a registered trademark of ICON Health & Fitness, Inc. ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of pur- chase.
  • Page 26 Exploded Drawing—Model No. WLTL46080 R0898E...
