Weslo WLEL45070 User Manual

Weslo WLEL45070 User Manual

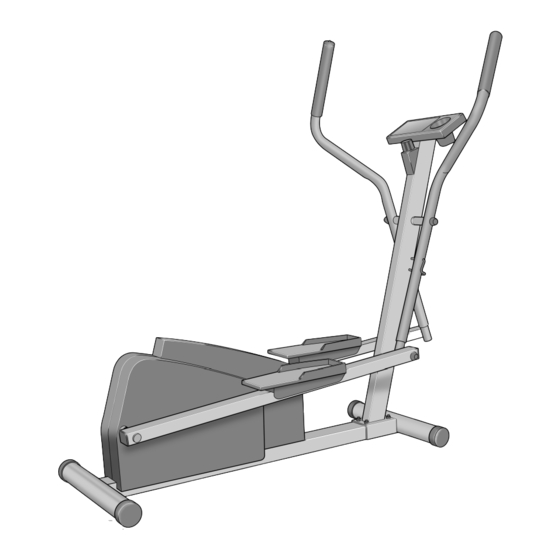

Low impact elliptical exerciser

Advertisement

¨
Model No. WLEL45070
Serial No.
QUESTIONS?
If you have questions, or if there
are missing or damaged parts,
please call direct to our toll-free
Customer Hot Line. The trained
technicians on our Customer Hot
Line will provide immediate
assistance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.ÐFri., 6 a.m.Ð6 p.m. MST
Patent Pending
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Serial
Number
Decal
USERÕS MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WLEL45070 and is the answer not in the manual?

Questions and answers

Summary of Contents for Weslo WLEL45070

  • Page 1 ¨ Model No. WLEL45070 Serial No. Serial Number Decal QUESTIONS? If you have questions, or if there are missing or damaged parts, please call direct to our toll-free Customer Hot Line. The trained technicians on our Customer Hot Line will provide immediate assistance, free of charge to you.
  • Page 2: Table Of Contents

    ASSEMBLY ................5 HOW TO USE THE WESLO ¨...
  • Page 3: Before You Begin

    To help us assist you, please note the product model number and serial number before calling. The model number is WLEL45070. The serial number can be found on a decal attached to the ECLIPSE II (see the front cover of this manual for the location of the decal).
  • Page 4: Part Identification Chart

    PART IDENTIFICATION CHART Use the chart below to identify the small parts used in assembly. The number in parenthesis below each part is the key number of the part, from the PART LIST on 3/8" Nylon Locknut (54)Ñ4 Handlebar Spacer (46)Ñ2 Crank Spacer (41)Ñ2 *Some small parts may have been pre-attached.
  • Page 5: Assembly

    ASSEMBLY Assembly requires two persons. Place all parts of the WESLO packing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires the included grease packet, a phillips screwdriver wrenches , and a rubber mallet 1. Remove the #8 x 3/4Ó Tec Screw (42) from the Cable Cover (53).
  • Page 6 3. Slide a Handlebar Spacer (46) onto the left axle on the Upright (2). Make sure that the open side of the Handlebar Spacer is facing the Upright. Next, make sure that there are two Handlebar Bushings (40) in the Left Handlebar (6). Slide the Left Handlebar onto the left axle on the Upright.
  • Page 7: How To Use The Weslo

    HOW TO USE THE WESLO HOW TO EXERCISE ON THE WESLO To mount the ECLIPSE II, hold the handlebars and step onto the pedal that is in the lowest position. Next, step onto the other pedal. Push the pedals until they begin to move with a continuous motion.
  • Page 8 DIAGRAM OF THE CONSOLE DESCRIPTION OF THE CONSOLE The innovative console offers a manual mode and three pacer programs. The pacer programs are designed to help you achieve your exercise goals by pacing your exercise. The programs include a stamina- building Interval program, an Aerobic program, and a Fat Burn program.
  • Page 9 ¥ DistanceÑThis mode shows the total number of repetitions (strides) you have completed, up to 999. The display will then reset to zero and continue counting. ¥ Fat calories (FAT CALS)ÑThis mode shows the approximate number of fat calories you have burned.
  • Page 10: Maintenance

    MAINTENANCE CONSOLE TROUBLE-SHOOTING If the console does not function properly, the batteries should be replaced. To replace the batteries, see assembly step 5 on page 6. In addition, make sure that the extension wire is plugged into the console. (See assembly step 1 on page 5.) HOW TO ADJUST THE REED SWITCH If the console does not display correct feedback, the reed switch should be adjusted.
  • Page 11: How To Adjust The Drive Belt

    HOW TO ADJUST THE DRIVE BELT If the Drive Belt (32) slips as you exercise on the ECLIPSE II, the Drive Belt should be adjusted. To adjust the Drive Belt, the side shield must first be removed. Refer to the instructions on page 10 and remove the side shield.
  • Page 12: Conditioning Guidelines

    CONDITIONING GUIDELINES The following guidelines will help you to plan your exercise program. Remember that proper nutrition and adequate rest are essential for successful results. WARNING: Before beginning this or any exercise program, consult your physician. This is especial- ly important for individuals over the age of 35 or individuals with pre-existing health problems.
  • Page 13: Suggested Stretches

    A cardiovascular exercise period, including 20 to 30 minutes of exercise with your heart rate in your training zone. A cool-down, with 5 to 10 minutes of stretching. Thorough stretching helps to offset problems caused when you stop exercising suddenly. Stretching after exercise is also very effective for increasing flexibility.
  • Page 14: Part List

    PART LISTÑModel No. WLEL45070 Key No. Qty. Description Base Upright Pedal Leg Pedal Bracket Extension Tube Left Handlebar Right Handlebar Pedal Bolt 1/2Ó Nylon Jam Nut Crank Arm Crank Shaft Crank Bearing Bearing Cup Keyed Washer Slotted Crank Nut Tri-notch Crank Nut Crank Nut 5/16Ó...
  • Page 15: Exploded Drawing

    EXPLODED DRAWINGÑModel No. WLEL45070 R1197A...
  • Page 16: How To Order Replacement Parts

    Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared to give the following information when calling: ¥ The MODEL NUMBER of the product (WLEL45070). ¥ The NAME of the product (WESLO ¥...
