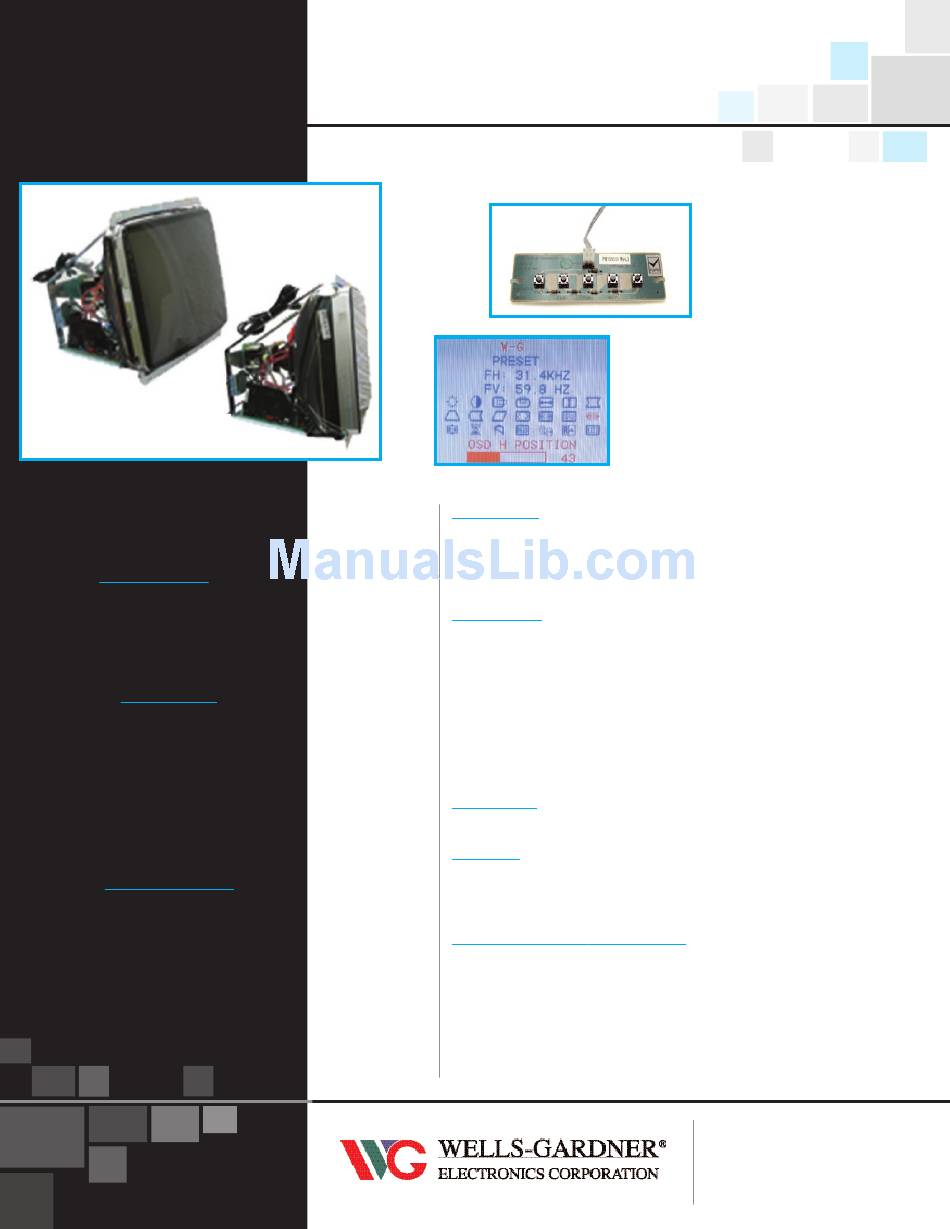

Wells-Gardner D9400 Series Specification

D9400/D9410
Series
D9400
D9410

Power Input

• Input voltage: 90-265 VAC,
47-63 Hz.
• Maximum power: 80 watts type;
95 watts Max.
Resolution
Graphics mode: CGA: 640 X 240
EGA: 773 X 384
VGA: 640 X 200,
640 X 350,
640 X 480
SVGA: 800 X 600
• Video bandwidth: 70 MHz typical.
Miscellaneous
• 105 Degree Capacitors for long
life and reliability.
• Operating temperature: 0 to 55
degree C.
• Agency compliance: UL, CUL,
DHHS.
Monitor Specifications
D i g i t a l M o n i t o r
Specification
• CRT size (diagonal measure): 27", 33" (OPTIONAL)
• Phosphor type: P22
• Color Temperature: 9300ºK /8500K ± 300ºK/User Adjustable
• Dot trio spacing: 0.83 mm (27"), 0.92mm (33")
Input Signals
• Video Input connector 1:15 pin D-sub high density male; VGA
compatible Analog .7 to 1volt level with 75 Ohm input.
• Video Input connector 2: 10 pin connector Analog 2.2 to 4 volt
level at 250/350 Ohm; CGA/EGA 0.156 center header.
• Sync type: TTL & Standard CGA / EGA / VGA/ sync (positive or
negative).
• Sync input: Separate or composite sync from 1 volt to 5 volt input.
• Sync Input Impedance: 2.2K Ohm (H sync and V sync)
• Horiz. / Vert. sync frequency: 15.75 to 40 KHz / 40 to 100 Hz.
Light Output
• 70 Ft-L min. (center block)
Geometry
• Horizontal linearity: Less than 7% Vertical linearity: Less than 5%
• Picture size regulation: 2%
• Geometric distortion: ±2% max.
User Controls Digitally Controlled
• Brightness, contrast, horizontal position, vertical position, horizontal
size, vertical size, pin cushion, trapezoid, bow, parallel, OSD H
position,OSD V position, OSD timer, degauss, color , language,
Recall (factory reset), exit.
• Tilt, OSD menu
• Automatic Degauss: Manual Degauss, OSD menu.
Specification subject to change without notice.
P u s h B u t t o n
C o n t r o l B o a r d
O n - S c r e e n D i s p l a y
