Wells H-006UL Owner's Manual

Built-in hotplate
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

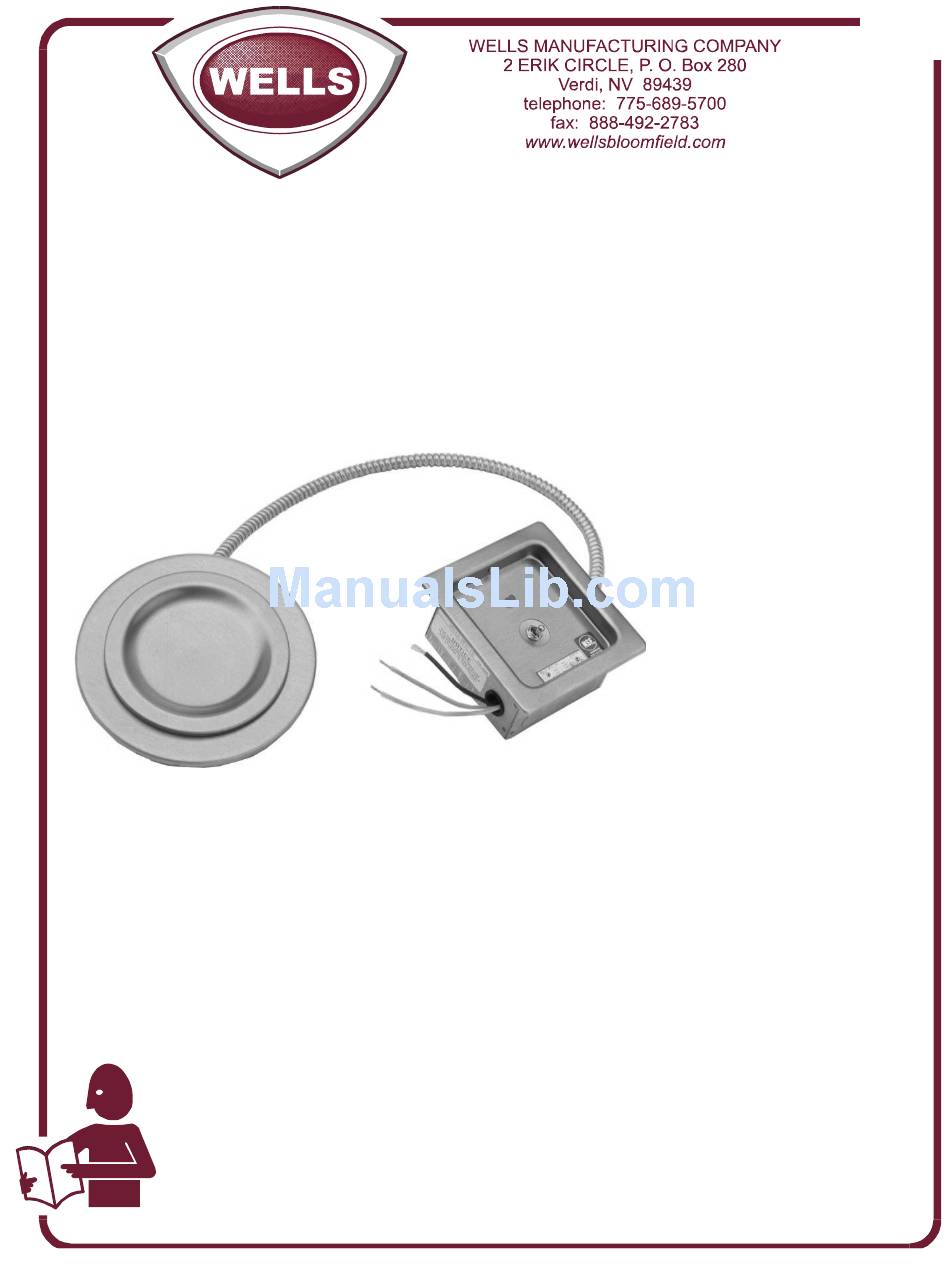

019

OWNERS MANUAL

Built-In Hotplate
MODEL
H-006UL
Includes
INSTALLATION
USE & CARE
PARTS LIST
Model H-006UL
IMPORTANT: DO NOT DISCARD THIS MANUAL
This manual is considered to be part of the appliance and is to be given to the OWNER or
MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of
this appliance. Additional manuals are available from your WELLS DEALER.
THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR
INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any
questions concerning installation, operation or maintenance of this equipment.
p/n 305816 Rev. (-)
M019 012303 cps

Advertisement

Table of Contents
loading

Related Manuals for Wells H-006UL

Summary of Contents for Wells H-006UL

  • Page 1: Owners Manual

    Additional manuals are available from your WELLS DEALER. THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any questions concerning installation, operation or maintenance of this equipment.

  • Page 2: Shipping Damage Claim Procedure

    Seller’s obligation under this warranty is limited to the repair of defects without charge by a Wells Mfg. Co. factory authorized service agency or one of its sub-service agen- cies.

  • Page 3: Specifications

    PARTS & SERVICE CUSTOMER SERVICE DATA Thank You for purchasing this Wells Manufacturing Co. appliance. Proper installation, professional operation and consistent maintenance of this appliance will ensure that it gives you the very best performance and a long, economical service life.

  • Page 4: Features & Operating Controls

    FEATURES & OPERATING CONTROLS Fig 1. H-006UL Features and Operating Controls ITEM DESCRIPTION CONTROL PANEL Mounted to front of counter. Toggle switch controls power. Indicator glows when power is "ON". HOTPLATE Mounts to top of counter. Top surface is hot when "ON". Bowl-shaped to position and hold containers.

  • Page 5: Precautions And General Information

    This appliance is intended for use in commercial establishments only. This appliance is intended to hold pre-heated beverage at temperature for human consumption. No other use is recommended or authorized by the manufacturer or its agents. Operators of this appliance must be familiar with the appliance use, limitations and associated restrictions.

  • Page 6: Installation

    Damage caused by failure to use these gaskets is not covered by warranty. ELECTRICAL INSTALLATION Fig. 2 H-006UL Wiring Diagram Electrical flex-conduit is provided to allow the hotplate to be located up to 32" from the control panel. Excess conduit must be coiled and secured to prevent damage.

  • Page 7: Operation

    PREPARATION 1. Examine hotplate and control panel for condition before turning the ON/OFF SWITCH "ON". Clean as necessary before use. 2. Turn the ON/OFF SWITCH "ON" and allow the hotplate to pre-heat for 15 minutes before use . 1. Set the container of pre-heated beverage on the hotplate. The heating surface of the hotplate is bowl-shaped to safely hold curved-bottom containers, specifically standard coffee decanters.

  • Page 8: Exploded View And Parts List

    EXPLODED VIEW AND PARTS LIST ITEM DESCRIPTION 50413 COFFEE WELL, STAINLESS STEEL 502459 ELEMENT 120V 70W H006 COVER, ELEMENT H006 50177 FIBER WASHER 8706-109 FITTING FLEX CONDUIT 3/8" x 90º 50416 GASKET, WARMER PLATE PLATE, ADAPTER H006 51647 GASKET COFFEE WARMER INSULINER, 3/8"...

  • Page 9: Parts And Service

    IMPORTANT: Use only factory authorized service parts and replacement filters. For factory authorized service, or to order factory authorized replacement parts, contact your Wells authorized service agency, or call: Wells Manufacturing Co. 2 Erik Circle P. O. Box 280 Verdi, NV 89439...
