Weil-McLain Series 2 User's Information Manual

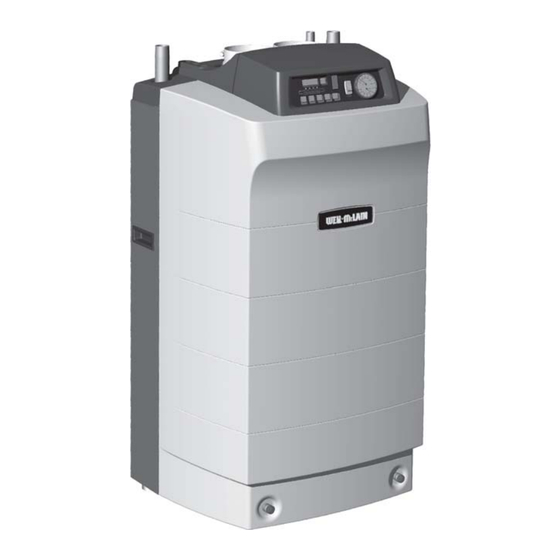

Ultra gas-fired water boiler series 2
Hide thumbs Also See for Series 2:
Table of Contents

Advertisement

Quick Links

See also: Manual
NOTICE:
Series 1/Series 2 identification
Read the boiler rating plate to
determine the series number. The
rating plate is located on the right
side of the boiler.
If the information in this manual is not followed exactly, a fire or
explosion may result, causing property damage, personal injury or
loss of life.
Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use any phone in your
building.
•
Immediately call your gas supplier from a neighbor's phone. Follow
the gas supplier's instructions.
•
If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service
technician or the gas supplier.
WHAT TO DO IF YOU SMELL GAS
Gas-fired
Water boiler
Series 2
User's
Information
Manual
Ultra-80, -105, -155, -230 & -310
with
Part No. 550-100-027/0404
