Summary of Contents for Omnitronix Poll-Safe PS635

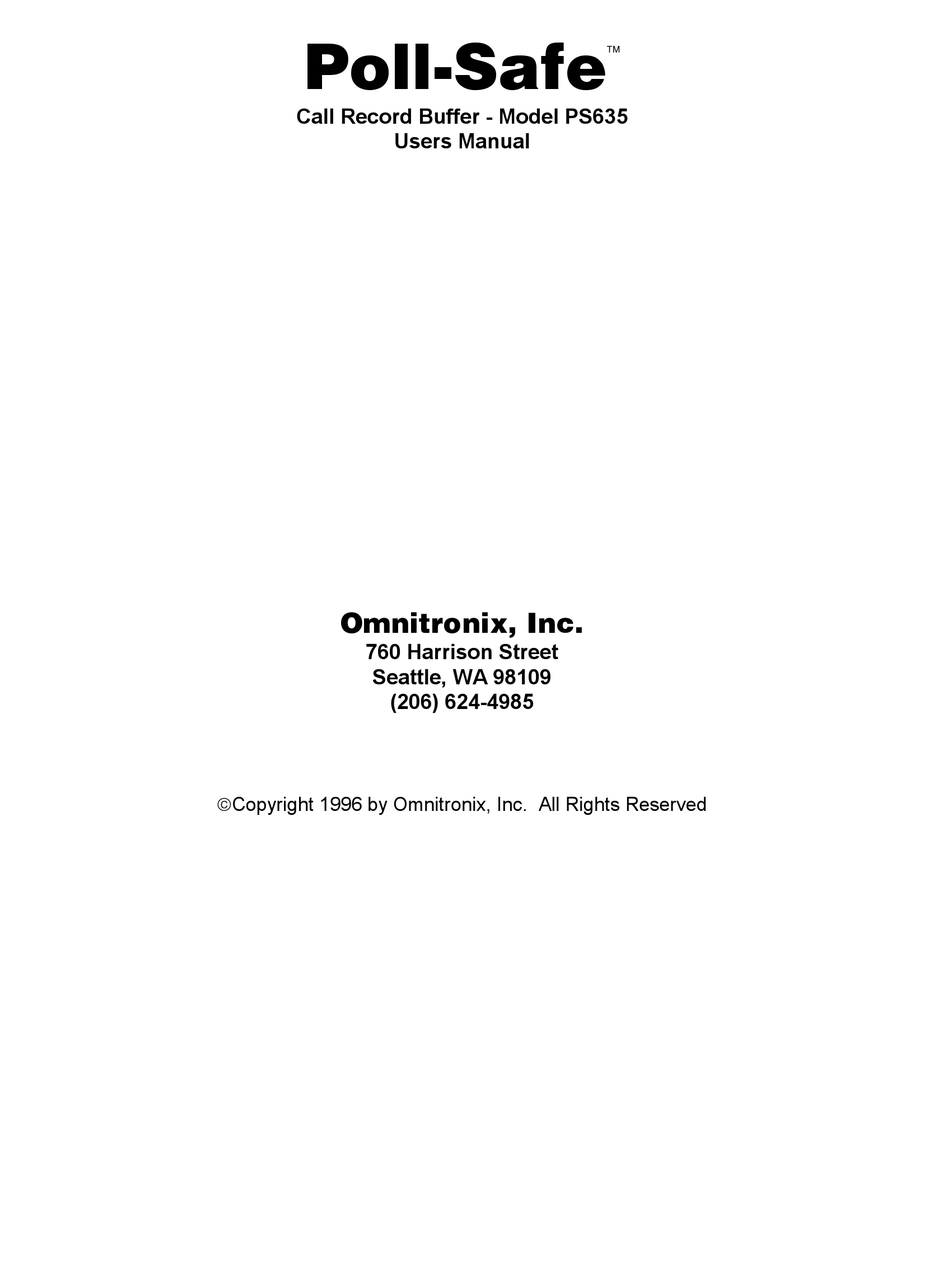

- Page 1 Poll-Safe Call Record Buffer - Model PS635 Users Manual Omnitronix, Inc. 760 Harrison Street Seattle, WA 98109 (206) 624-4985 Copyright 1996 by Omnitronix, Inc. All Rights Reserved...
-
Page 2: Table Of Contents
Contents Introduction......................1 General Operating Features Input/Output Port Connections................2 DIP Switch Configuration LED Indications..................... 4 PS635 Power Up Sequence PS635 General Operation..................PS635 Commands PS635 Other Operational Information..............9 Resetting The PS635 Battery Backup Operation..................10 Test Features Warranty Information.................... 11 Canadian Department Of Communications Notice Internal Modem Information................. -
Page 3: Introduction
Additional assistance with installation and operation of the PS635 can be obtained by calling Omnitronix Technical Support at (206) 624-4985. GENERAL OPERATING FEATURES The PS635 is a versatile data recording device designed for collection, storage and transfer of phone- related call records or other types of record-oriented data. -
Page 4: Input/Output Port Connections
INPUT and OUTPUT PORT CONNECTIONS The INPUT port of the PS635 is a male DB25 RS232 connector. The INPUT port connects to the PBX or other source of call records. The Input port is configured as DTE, similar to a PC serial port. The PS635 Input port only requires connections to Ground and Receive Data to receive data from the PBX. -
Page 5: Dip Switch Configuration
DIP SWITCH CONFIGURATIONS Baud Rate 9600 Two DIP switch banks on the bottom side of the PS635 control the baud rate, parity, and stop bit parameters of the PS635 Input and Output ports. These switches are labeled A and B. These 1200 switch "banks"... -
Page 6: Led Indications
LED INDICATIONS The front panel of the PS635 has 12 indicator LEDs. These indicators Poll-Safe Omnitronix, Inc. PS635 show the current operating C a ll R e c o rd B u ff e r status of the PS635. Below 100%... -
Page 7: Ps635 Power Up Sequence
10 seconds. 6)If the PS635 fails any part of the above tests, it will indicate this by repeatedly flashing the Percent Full LEDs. This is a fatal error, and Omnitronix Technical Support should be contacted immediately. PS635 General Operation The PS635c has a limited set of commands designed to provide a Compressed Binary Block polling protocol and other PollCat compatible features. -
Page 8: Ps635 Commands
COMMANDS Command: 00 Function: SET DATA PARTITION Sets a partition containing all the records in the buffer at the time of sending the 00 command. Any records received after the 00 command will not be included in the CBB release until a new 00 command is issued. - Page 9 Provides prompts for setting callback phone number and other settings. Command: 16 Function: STATUS Displays simple status screen. Command: 20 Function: RECORD COUNT Displays the record count within the current partition. Command: 21 Function: FREE MEMORY Displays the amount of free memory. Command: 29 Function: BYPASS MODE Enters bypass mode.
- Page 10 A test command to allow record to be input to memory via the modem or output port. After the command is issued, any further characters sent to the 635c via the modem or output port will be taken as though they cam in the input port and stored in memory accordingly. FILLUP mode is exited by hitting the ESC key three times.
-
Page 11: Ps635 Other Operational Information
Other Operational Information Line Tag Mode - This option is always included in CCB release mode. It appends a 6 digit number (from 000001 counting upwards, one for each record) to the front of each record. CCB Release Mode -The 01 command always transmits data using the CBB protocol. There is no option to set this to other release modes. -
Page 12: Battery Backup Operation
BATTERY BACKUP OPERATION The PS635 is supplied with a lithium battery. If while connected and running, the AC power source is interrupted, the internal battery will maintain the PS635 database memory until the AC power source is re-established or the battery’s charge is exhausted. -
Page 13: Warranty Information
WARRANTY INFORMATION Omnitronix, Inc. hereby warrants that it will, as the buyers sole remedy, repair or replace, at its option, any part of the Poll-Safe Model PS635 which proves to be defective by reason of improper materials or workmanship, without charge for parts or labor, for a period of 12 (twelve) months. This warranty period commences on the date of first retail purchase, and applies only to the original retail purchaser. -
Page 14: Canadian Department Of Communications Notice
CANADIAN DEPARTMENT OF COMMUNICATIONS NOTICE NOTICE: The Canadian Department of Communications Label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational and safety requirements. The Department does not guarantee the equipment will operate to the user’s satisfaction. -
Page 15: Internal Modem Information
raccordement (cordon prolongateur téléphonique interne). L’abonné ne doit pas oublier qu’il est possible que la conformité aux conditions énoncées ci-dessus n’empechent pas la dégradation du service dans certaines situations. Actuellement, les entreprises de télécommunication ne permettent pas que l’on raccorde leur matériel a des jacks d’abonné, sauf dans les cas précis prévus pas les tarrifs particuliers de ces entreprises. - Page 16 If they do, you will be notified in advance to give you an opportunity to maintain uninterrupted telephone service. If you experience trouble with the modem, contact Omnitronix at (206) 624-4985 for information on obtaining service or repairs. The telephone company may ask you to disconnect the device from the network until the problem has been corrected or until you are sure that the device is not malfunctioning.
