Weider WEEVSY87210 User Manual

Weider WEEVSY87210 User Manual

Fitness and exercise equipment

Advertisement

Model No. WEEVSY87210
Serial No.
Write the serial number in the
space above for future reference.
Serial Number Decal
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts,
please call:
08457 089 009
Or write:
ICON Health & Fitness Ltd.
Unit 4
Revie Road Industrial Estate
Revie Road
Beeston
Leeds, LS11 8JG
UK
email: csuk@iconeurope.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
Class HC Fitness Product
Visit our website at
www.iconeurope.com

Advertisement

loading

Summary of Contents for Weider WEEVSY87210

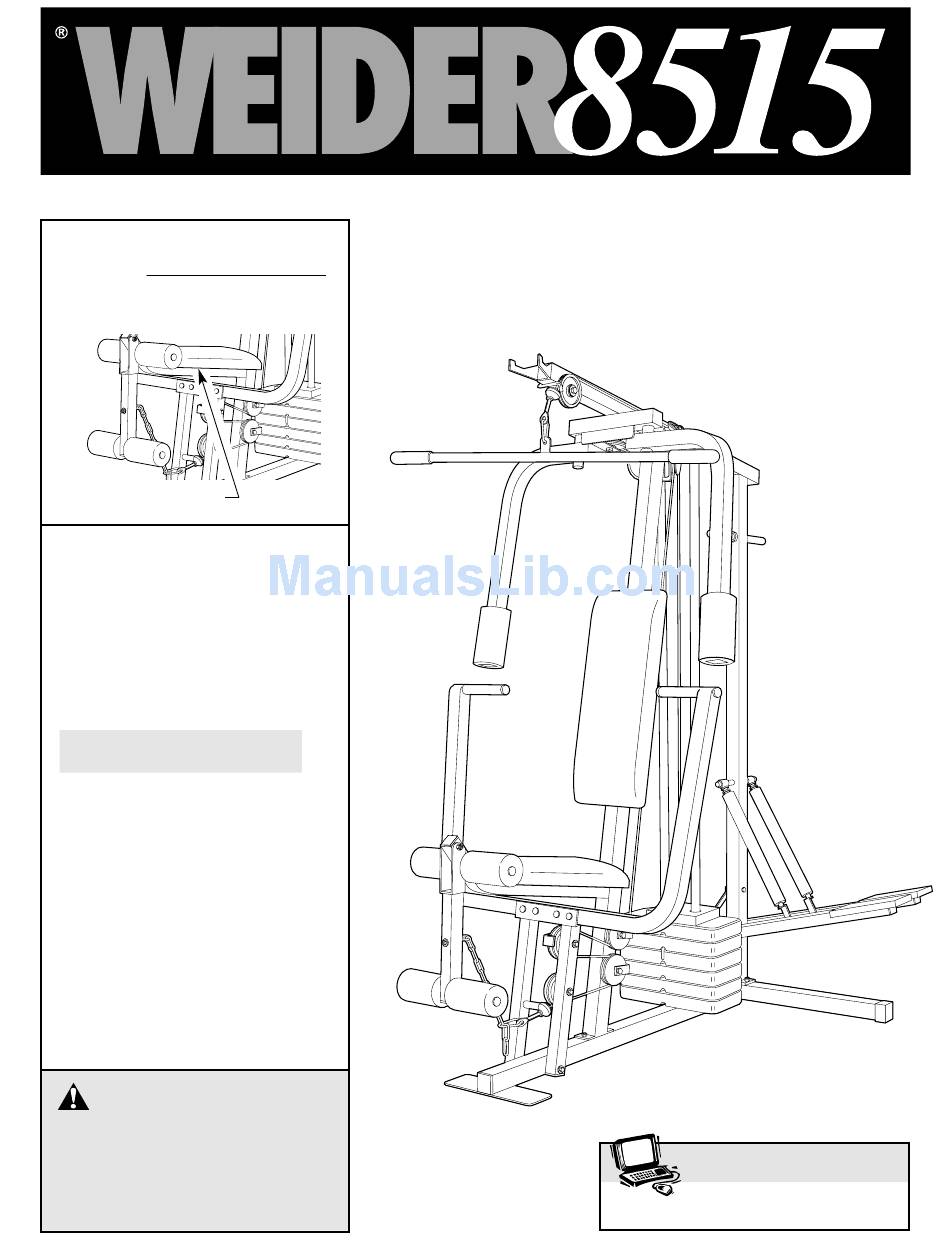

  • Page 1 Model No. WEEVSY87210 Serial No. Write the serial number in the space above for future reference. Serial Number Decal QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or if there are...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT PRECAUTIONS .............3 BEFORE YOU BEGIN .
  • Page 3: Important Precautions

    The decals shown below have been placed on the weight system in the locations shown. If decals are missing or illegible, please call our Customer Service Department to order free replacement decals (see the back cover of this manual). Apply the decals in the locations shown. WARNING •...
  • Page 4: Before You Begin

    WEIDER 8515 weight system will help you to achieve the specific results you want. For your benefit, read this manual carefully before using the weight system.
  • Page 5: Assembly

    ASSEMBLY Before beginning assembly, carefully read the following information and instructions: • Place all parts of the weight system in a cleared area and remove the packing materials; do not dispose of the packing materials until assembly is completed. • The assembly is divided into four stages: 1) frame assembly, 2) arm assembly, 3) cable assembly, and 4) seat assembly.
  • Page 6 2. Slide the Front Upright (42) onto the 5/16” x 2 1/2” Carriage Bolts (1) in the Base (4). Hand tighten a 5/16” Nylon Locknut (3) onto each Carriage Bolt. Do not tighten the Nylon Locknuts yet. Press a 1” Square Inner Cap (65) into the Front Upright (42).
  • Page 7 5. Lubricate the pedal axles on the Rear Upright (56). Slide the Left Pedal (79) onto the left pedal axle, and the Right Pedal (78) onto the right pedal axle. Note: Make sure that the Pedals are on the correct sides; the slot- ted brackets must be on the insides of the Pedals.
  • Page 8 9. Press the Weight Tube Bumper (64) into the end of the Weight Tube (63). Insert the Weight Tube into the stack of Weights (25). Be sure that the pins on the Weight Tube are sitting in the pin grooves in the top Weight.
  • Page 9 12. Wet the handle of one Press Arm (46) with soapy water. Slide a 5” Plastic Grip (31) onto the handle. Press a 1” Round Inner Cap (49) into the other end of the handle. Press a 1 3/4” Square Inner Cap (44) into the top of the Press Arm.
  • Page 10 As you assemble the cables and pulleys in steps 14 through 22, please refer to the CABLE DIAGRAM on page 22 of this manual. 14. Route the Long Cable (23) around the 3 1/2” Pulley (15) attached to the Top Frame (55). Be sure that the end of the Cable with the ball is on the indicated side of the Pulley and that the Cable is between the Pulley...
  • Page 11 16. Route the Long Cable (23) around the “V”- Pulley (6) on the Right Arm (48). Be sure that the Cable is in the groove of the “V”-Pulley and that the Long Cable Trap (50) is turned to hold the Cable in place. Tighten the 3/8” x 2 1/2”...
  • Page 12 18. Route the Long Cable (23) around the 3 1/2” Pulley (15) attached to the bracket on the Top Frame (55). Tighten the 3/8” x 2” Bolt (12) and the 3/8” Nylon Locknut (21). (Note: This Pulley is pre-assembled. It has been shown disassembled for easy part identifi- cation.) Be sure that the Cable is in the groove of the Pulley and that the Cable...
  • Page 13 20. Route the Short Cable (58) around the 3 1/2” Pulley (15) attached to the upper hole in the Press Frame (17). Be sure that the Cable Trap (66) is in the “3 o’clock” position and that the Cable is routed around the Pulley as shown.
  • Page 14 22. Attach the Long Cable (23) to the Small “U”- Bracket (67) with a 1/4” Nylon Locknut (2) and a 1/4” Washer (10). Do not completely tighten the Nylon Locknut. It should be threaded onto the end of the Cable so only a couple of threads are showing above the Nylon Locknut, as shown in the inset drawing.
  • Page 15 25. Press a 1 1/2” Square Inner Cap (32) into the Leg Lever (29). Lubricate the 5/16” x 2 1/4” Bolt (33). Attach the Leg Lever (29) to the Seat Frame (36) with the 5/16” x 2 1/4” Bolt and a 5/16” Nylon Locknut (3).
  • Page 16 28. Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in HOW TO USE THE WEIGHT SYSTEM, beginning on page 17. Before using the weight system, pull each cable a few times to be sure that the cables move smoothly over the pulleys.
  • Page 17: How To Use The Weight System

    HOW TO USE THE WEIGHT SYSTEM The instructions below describe how each part of the weight system can be adjusted. IMPORTANT: When attaching the lat bar or nylon strap, make sure that the attachments are in the correct starting position for the exercise to be performed.
  • Page 18 ATTACHING AND REMOVING THE SEAT Set the bracket on the Seat Frame (36) onto the indi- cated pins on the Front Upright (42). Attach the Seat Frame to the Front Upright with the 5/16” x 2 3/4” Carriage Bolt (14) and the Seat Knob (40). For some exercises, the Seat (13) must be removed.
  • Page 19 LOCKING THE WEIGHT STACK When the weight system is not in use, the Lock Pin (90) and Lock (91) should be attached. Insert the Lock Pin through a Weight Guide (62). Attach the Lock to the Lock Pin.
  • Page 20 WEIGHT RESISTANCE CHART This chart shows the approximate weight resistance at each station. “Top” refers to the 6.5-lb. top weight. The other numbers refer to the 12.5 lbs. weight plates. Weight resistance shown for the butterfly arm station is for each butterfly arm.
  • Page 21: Troubleshooting And Maintenance

    TROUBLESHOOTING AND MAINTENANCE Inspect and tighten all parts often and replace any worn parts immediately. The weight system can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use solvents. TIGHTENING THE CABLES Woven cable, the type of cable used on the weight system, can stretch slightly when it is first used.
  • Page 22: Cable Diagram

    CABLE DIAGRAM The cable diagram below shows the proper routing of the Short Cable (58) and the Long Cable (23). Use the diagram to be sure that the two cables and the cable traps have been assembled correctly. If the cables have not been correctly routed, the weight system will not function properly and damage may occur.
  • Page 23 NOTES...
  • Page 24: Ordering Replacement Parts

    • The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and EXPLODED DRAWING attached at the centre of this manual). WEIDER is a registered trademark of ICON Health & Fitness, Inc. Part No. 175494 R0202B Printed in Canada © 2002 ICON Health & Fitness, Inc.
  • Page 25 REMOVE THIS PART IDENTIFICATION CHART FROM THE MANUAL This chart is provided to help you identify the small parts used in assembly. Important: Some parts may have been pre-assembled for shipping purposes. If you cannot find a part in the parts bags, check to see if it has been pre-assembled.
