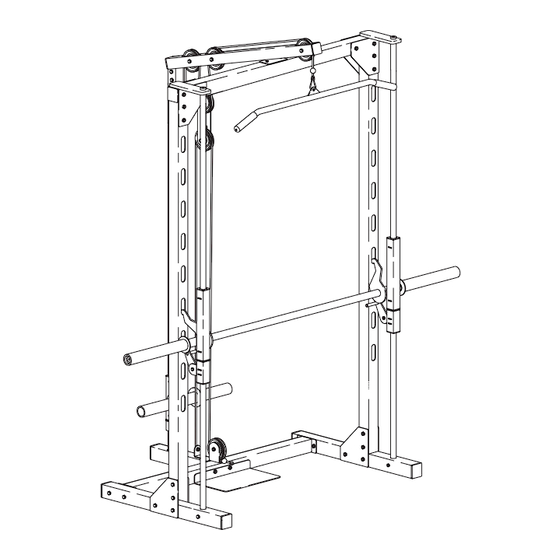

Model No. WEBE19300
Serial No.
Write the serial number in the
space above for reference.
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you have
questions, or if there are missing
parts, we will guarantee complete
satisfaction through direct assis-
tance from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained techni-
cians on our customer hot line
will provide immediate assis-
tance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.ÐFri., 6 a.m.Ð6 p.m. MST
CAUTION
Read all precautions and instruc-
tions in this manual before
using this equipment. Save this
manual for future reference.
¨
USERÕS MANUAL
Visit our website at
www.weiderfitness.com
new products, prizes,
fitness tips, and much more!
Advertisement
Related Manuals for Weider WEBE19300
Summary of Contents for Weider WEBE19300
- Page 1 Model No. WEBE19300 Serial No. Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or if there are missing...
-
Page 2: Table Of Contents
Limited Warranty ............. . . Back Cover Note: A Part List/Exploded Drawing is attached in the center of this manual. Remove the Part List/Exploded Drawing before beginning assembly. WEIDER is a registered trademark of ICON Health & Fitness, Inc. -
Page 3: Important Precautions
Important Precautions WARNING: To reduce the risk of serious injury, read the following important precautions before using the weight rack. 1. Read all instructions in this manual before using the weight rack. Use the weight rack only as described in this manual. 2. -
Page 4: Before You Begin
The model number is WEBE19300. The serial number can be found on a decal attached to the weight rack (see the front cover of this manual). -
Page 5: Part Identification Chart
Part Identification ChartÑModel No. WEBE19300 Refer to the drawings below to identify small parts used in assembly. The number in parentheses below each drawing is the key number of the part, from the Part List in the center of this manual. The number following the key number is the quantity needed for assembly. -
Page 6: Assembly
Assembly Before beginning assembly, carefully read the following information and instructions: Make Things Easier for Yourself! This manual is designed to ensure that the weight rack can be assembled successfully by anyone. By setting aside plenty of time, and by deciding to make the task enjoyable, assembly will go smoothly. - Page 7 3. Attach an Upright (1) to each Base (7) using two Joint Plates (12), four M10 x 80mm Bolts (41), and four M10 Nylon Locknuts (11). Make sure the Uprights are oriented exactly as shown. Do not tighten the Nylon Locknuts yet. 4.
- Page 8 6. Press a 38mm Bushing (29) into each end of the Right Weight Glider (31). Slide the Right Weight Glider onto the indicated end of the Barbell (35) and attach it to the Barbell using an M8 x 16mm Screw (50). Do not tighten the Screw yet. Make sure the Right Weight Glider is oriented exactly as shown.
- Page 9 10. Press a 60mm Square Inner Cap (55) into each end of the Top Crossbar (9). Attach the Top Crossbar to the Uprights (1) using four Joint Plates (12), eight M10 x 80mm Bolts (41), and eight M10 Nylon Locknuts (11). Do not tighten the Nylon Locknuts yet.
- Page 10 13. Press a 50mm Square Inner Cap (10) into each end of the Pulley Bar (59). Slide the bracket on the Pulley Bar into the top of the Rear Upright (2). Attach the Pulley Bar to the Rear Upright using two M10 x 65mm Bolts (56), four M10 Small Washers (6), and two M10 Nylon Locknuts (11).
- Page 11 17. Slide the indicated end of the High Cable (13) onto the M10 x 20mm Bolt (26) in the Weight Carriage (22). Tighten an M10 Nylon Locknut (11) onto the Bolt. 18. Route the High Cable (13) around a Pulley (5) as shown.
-
Page 12: Adjusting The Weight Rack
Replace any worn parts immediately. The weight rack can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents. USING THE WEIGHT ADAPTER A Weight Adapter (42) and Pin (52) have been included for use with the WEIDER ¨ PRO XT15 weight bench (model number WEBE0910). - Page 13 USING THE SAFETY SPOTTERS To move the Safety Spotters (23, 24 [not shown]) to a new position, grip the handles on the spotter hooks and pull the hooks out of the slots in the Uprights (1). Raise or lower the Safety Spotters to new positions and pivot the hooks back into the slots in the Uprights.
-
Page 14: Exercise Guidelines
Exercise Guidelines THE FOUR BASIC TYPES OF WORKOUTS Muscle Building The only way to increase the size and strength of your muscles is to push them to a high percentage of their capacity. As you progressively increase the intensity of your exercise, your muscles will continual- ly adapt and grow. - Page 15 Make sure to rest for a short period of time after each set. The ideal resting periods are: ¥ Rest three minutes after each set for a muscle build- ing workout. ¥ Rest one minute after each set for a toning workout. ¥...
-
Page 16: Ordering Replacement Parts
¥ The MODEL NUMBER of the product (WEBE19300) ¥ The NAME of the product (WEIDER XT55 PRO weight rack) ¥ The SERIAL NUMBER of the product (see the front cover of this manual) ¥... - Page 17 REMOVE THIS PART LIST/EXPLODED DRAWING FROM THE MANUAL SAVE THIS PART LIST/EXPLODED DRAWING AND THE USERÕS MANUAL FOR FUTURE REFERENCE...
- Page 18 Part ListÑModel No. WEBE19300 Key No. Qty. Description Upright Rear Upright Rear Base Foot Plate Pulley M10 Small Washer Base Low Cable Top Crossbar 50mm Square Inner Cap M10 Nylon Locknut Joint Plate High Cable Cable Clip Pulley Spacer Lat Bar...
