Weider WEBE17100 User Manual

Weider user's manual 495 weight bench webe17100
Hide thumbs

Advertisement

Table of Contents

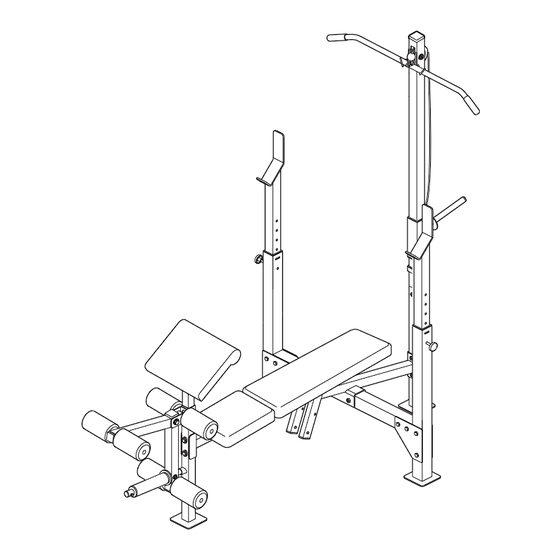

Model No. WEBE17100
Serial No.
Write the serial number in the space
above for future reference.
Serial Number Decal (Under Seat)
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing parts, we will guarantee
complete satisfaction through
direct assistance from our
factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE.
The trained technicians on our
customer hot line will provide
immediate assistance, free of
charge.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.ÐFri., 6 a.m.Ð6 p.m. MST
CAUTION
Read all precautions and instruc-
tions in this manual before
using this equipment. Save this
manual for future reference.
¨
USERÕS MANUAL
www.weiderfitness.com
new products, prizes,
fitness tips, and much more!
495
495
Visit our website at

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WEBE17100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Weider WEBE17100

Summary of Contents for Weider WEBE17100

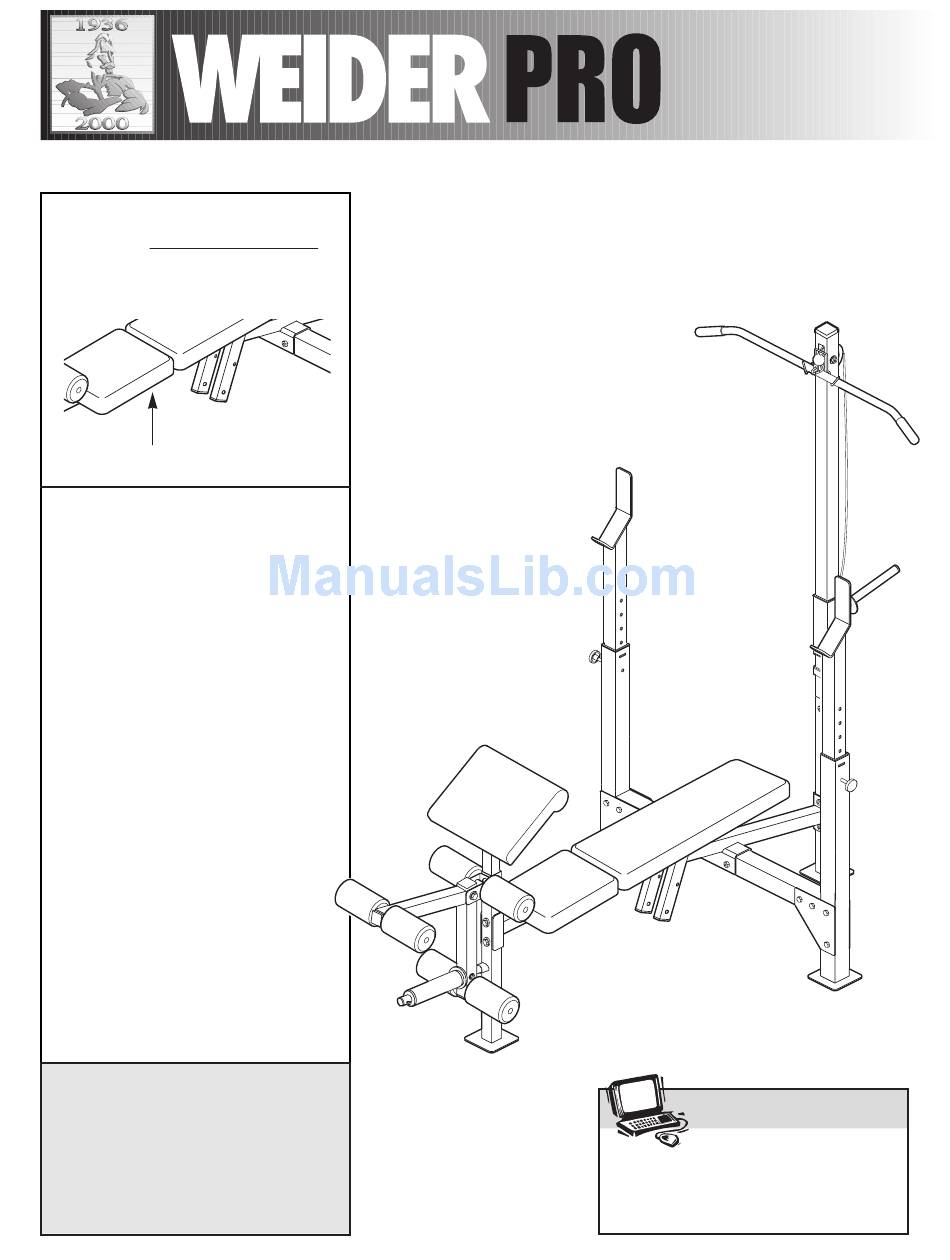

  • Page 1 Model No. WEBE17100 Serial No. Write the serial number in the space above for future reference. Serial Number Decal (Under Seat) QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or if there are...
