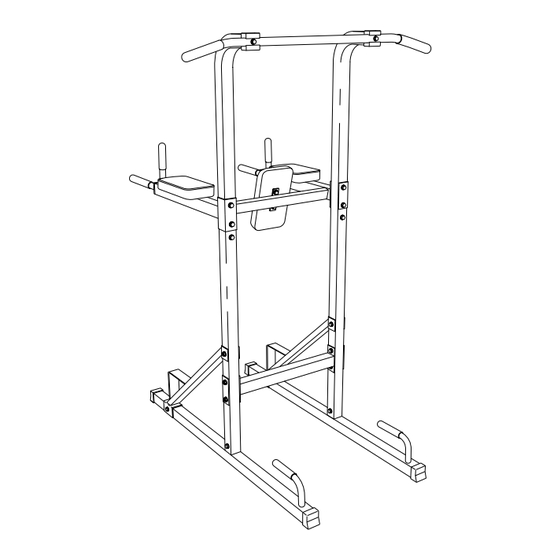

Model No. WEBE13010
Serial No.
Write the serial number in the
space above for reference.
Serial Number Decal
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing parts, we will guarantee
complete satisfaction through
direct assistance from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained techni-
cians on our customer hot line
will provide immediate assis-
tance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and instruc-
tions in this manual before
using this equipment. Save this
manual for future reference.
USER'S MANUAL
Visit our website at
www.weiderfitness.com
new products, prizes,
fitness tips, and much more!
Advertisement
Table of Contents
Related Manuals for Weider WEBE13010
Summary of Contents for Weider WEBE13010
- Page 1 Model No. WEBE13010 Serial No. Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or if there are missing parts, we will guarantee complete satisfaction through direct assistance from our factory.
-
Page 2: Table Of Contents
Customer Service Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time, to order a free replacement decal. Apply the replacement decal in the location shown. WEIDER is a registered trademark of ICON Health & Fitness, Inc. -
Page 3: Important Precautions
IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read the following important precautions before using the exercise rack. 1. Read all instructions in this manual before using the exercise rack. Use the exercise rack only as described in this manual. 2. -
Page 4: Before You Begin
To help us assist you, please note the product model number and serial number before calling. The model number is WEBE13010. The serial number can be found on a decal attached to the exercise rack (see the front cover of this manual). -
Page 5: Part Identification Chart
PART IDENTIFICATION CHART Refer to the drawings below to identify small parts used in assembly. The number in parentheses by each draw- ing is the key number of the part, from the PART LIST on page 14 of this manual. Note: Some small parts may have been pre-attached. -
Page 6: Assembly
ASSEMBLY Make Things Easier for Yourself This manual is designed to ensure that the exercise rack can be assembled successfully by anyone. Most people find that by setting aside plenty of time, assembly will go smoothly. Before beginning assembly, carefully read the following information and instructions: •... - Page 7 3. Attach the Bottom Crossbar (15) to an Upright Base (3) with two 3/8” x 2.85” Bolts (23), four 3/8” Washers (18), and two 3/8” Nylon Locknuts (19). Do not tighten the Nylon Locknuts yet. Attach the Bottom Crossbar (15) to the other Upright Base (3) in the same manner.
- Page 8 6. Orient the Left Dip Arm (4) as shown, so that the large hole is on top. Attach the Left Dip Arm to the left Upright (2) with a 3/8” x 2.85” Bolt (23), two 3/8” Washers (18), and a 3/8” Nylon Locknut (19).
- Page 9 10. Attach an Arm Pad (10) to each Dip Arm (4, 25) with two M8 x 60mm Bolts (16) and two 3/8” Washers (18). 11. Attach the Backrest (9) to the Top Crossbar (6) with two M8 x 16mm Bolts (17) and two 3/8” Washers (18).
-
Page 10: Exercise Guidelines
EXERCISE GUIDELINES THE FOUR BASIC TYPES OF WORKOUTS Muscle Building To increase the size and strength of your muscles, push them close to their maximum capacity. Your mus- cles will continually adapt and grow as you progres- sively increase the intensity of your exercise. You can adjust the intensity level of an individual exercise in two ways: •... -
Page 11: Cooling Down
Rest for a short period of time after each set. The ideal resting periods are: • Rest for three minutes after each set for a muscle building workout. • Rest for one minute after each set for a toning work- out. - Page 12 EXERCISE MONDAY Date: AEROBIC EXERCISE TUESDAY Date: WEDNESDAY EXERCISE Date: THURSDAY AEROBIC EXERCISE Date: EXERCISE FRIDAY Date: Make photocopies of this page for scheduling and recording your workouts. WEIGHT WEIGHT WEIGHT SETS REPS SETS REPS SETS REPS...
- Page 13 EXERCISE MONDAY Date: AEROBIC EXERCISE TUESDAY Date: WEDNESDAY EXERCISE Date: THURSDAY AEROBIC EXERCISE Date: EXERCISE FRIDAY Date: Make photocopies of this page for scheduling and recording your workouts. WEIGHT WEIGHT WEIGHT SETS REPS SETS REPS SETS REPS...
-
Page 14: Part List
PART LIST—Model No. WEBE13010 Key No. Qty. Description Pull-up Bar Upright Upright Base Left Dip Arm Stabilizer Top Crossbar Angle Support Handle Backrest Arm Pad Endcap Handgrip Bushing Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover of the user’s manual for information about ordering replacement parts. -
Page 15: Exploded Drawing
EXPLODED DRAWING—Model No. WEBE13010 22 18 R0901A... -
Page 16: Ordering Replacement Parts
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared to give the following information when calling: • The MODEL NUMBER of the product (WEBE13010) • The NAME of the product (WEIDER •...
