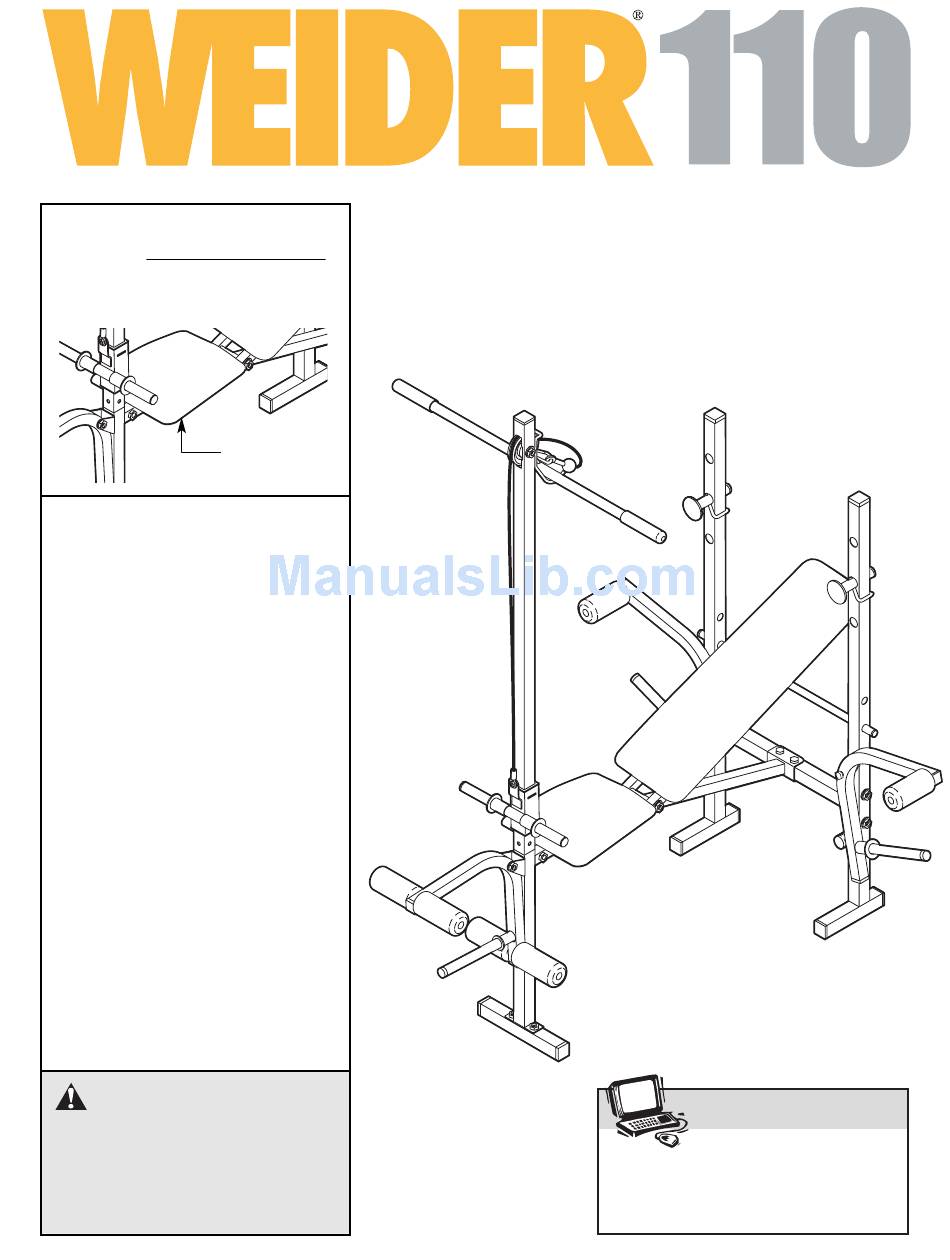

Model No. WEBE03820
Serial No.
Write the serial number in the
space above for future reference.
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing parts, we will guarantee
complete satisfaction through
direct assistance from our facto-
ry.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE.
The trained technicians on our
customer hot line will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
Visit our website at
www.weiderfitness.com
new products, prizes,
fitness tips, and much more!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Weider WEBE03820
Summary of Contents for Weider WEBE03820
- Page 1 Model No. WEBE03820 Serial No. Write the serial number in the space above for future reference. Serial Number Decal QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or if there are...
-
Page 2: Table Of Contents
Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached in the center of this manual. Remove the PART IDENTIFICATION CHART and the PART LIST/EXPLODED DRAWING before beginning assembly. WEIDER is a registered trademark of ICON Health & Fitness, Inc. -
Page 3: Important Precautions
IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read the following important precautions before using the weight bench. 1. Read all instructions in this manual before using the weight bench. Use the weight bench only as described in this manual. 2. -
Page 4: Before You Begin
To help us assist you, please note the product model number and serial number before calling. The model number is WEBE03820. The serial number can be found on a decal attached to the weight bench (see the front cover of this manual). -
Page 5: Assembly
ASSEMBLY Make Things Easier for Yourself This manual is designed to ensure that the weight bench can be assembled successfully by anyone. Most people find that by setting aside plenty of time, assembly will go smoothly. Before beginning assembly, carefully read the following information and instructions: •... - Page 6 3. Attach the Frame (2) to the Crossbar (3) with two M8 x 55mm Bolts (18) and two M8 Nylon Locknuts (17). Do not tighten the Locknuts yet. Be sure that the Frame is attached on the indicated side of the Crossbar. 4.
- Page 7 7. Tap two 25mm Square Inner Caps (35) into each of the two Backrest Tubes (5). Attach each Backrest Tube (5) to the Backrest (6) with two M6 x 38mm Screws (30) and two M6 Washers (26). Do not tighten the Screws yet. 8.
- Page 8 11. Tap a Fly Arm Stop (15) onto the welded tube on each Upright (1). Press two Plastic Bushings (14) into the indicated holes in an Upright (1). Attach a Fly Arm (25) to the Upright using an M10 x 115mm Bolt (19) and a Butterfly Knob (13).
- Page 9 14. Press two 25mm Round Inner Caps (24) into the ends of the Weight Rests (51). Insert the Weight Rests (51) into set of holes in the Uprights (1). Rotate the Weight Rests to the locked position, with the locking pin wrapped around the Upright.
-
Page 10: Exercise Guidelines
ADJUSTMENTS The weight bench is designed to be used with your own weight set (not included). The steps below explain how the weight bench can be adjusted. See EXERCISE GUIDELINES on page 13 for important exercise information and refer to the accompanying exercise guide to see the correct form for several exercises. Make sure all parts are properly tightened each time you use the weight bench. - Page 11 REMOVING AND ATTACHING THE FLY ARMS Some exercises are easier to perform if the Fly Arms (25) are removed from the weight bench. To remove the Fly Arms, remove the Butterfly Knob (13) and the M10 x 115mm Bolt (19) from each Fly Arm and Upright (1).
- Page 12 ATTACHING THE LAT BAR Attach the Lat Bar (37) to the Cable (39) with a Cable Clip (41). Rest the Lat Bar on the lat bar rest on the Lat Tower (40). WARNING: Always remove the Lat Bar (37) when performing an exer- cise that does not require it.
-
Page 13: Exercise Guidelines
EXERCISE GUIDELINES THE FOUR BASIC TYPES OF WORKOUTS Muscle Building To increase the size and strength of your muscles, push them close to their maximum capacity. Your mus- cles will continually adapt and grow as you progres- sively increase the intensity of your exercise. You can adjust the intensity level of an individual exercise in two ways: •... -
Page 14: Cooling Down
Rest for a short period of time after each set. The ideal resting periods are: • Rest for three minutes after each set for a muscle building workout. • Rest for one minute after each set for a toning work- out. - Page 15 EXERCISE MONDAY Date: AEROBIC EXERCISE TUESDAY Date: EXERCISE WEDNESDAY Date: THURSDAY AEROBIC EXERCISE Date: EXERCISE FRIDAY Date: Make photocopies of this page for scheduling and recording your workouts. WEIGHT WEIGHT WEIGHT SETS REPS SETS REPS SETS REPS...
-
Page 16: Ordering Replacement Parts
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared to give the following information when calling: • The MODEL NUMBER of the product (WEBE03820) • The NAME of the product (WEIDER •... - Page 17 REMOVE THIS PART IDENTIFICATION CHART PART LIST/EXPLODED DRAWING SAVE THIS PART IDENTIFICATION CHART PART LIST/EXPLODED DRAWING FOR FUTURE REFERENCE...
-
Page 18: Part Identification Chart
PART IDENTIFICATION CHART This chart is provided to help you identify the small parts used in assembly. The number in parenthesis below each part refers to the key number of the part from the PART LIST in the center of this manual. Important: Some parts may have been pre-assembled for shipping purposes. - Page 19 PART LIST—Model No. WEBE03820 Key No. Qty. Description Upright Frame Crossbar Leg Lever Backrest Tube Backrest Support Rod Front Leg 19mm Round Inner Cap Long Pad Tube Seat Short Pad Tube Butterfly Knob Plastic Bushing Fly Arm Stop M8 Washer...
- Page 20 EXPLODED DRAWING—Model No. WEBE03820 R0902A...
