TP-Link EAP115-Wall Quick Installation Manual

Quick Installation Guide

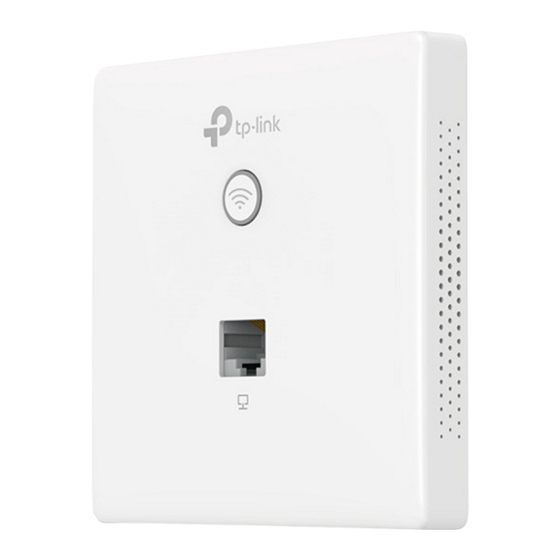

300Mbps Wireless N Wall-Plate Access Point
EAP115-Wall

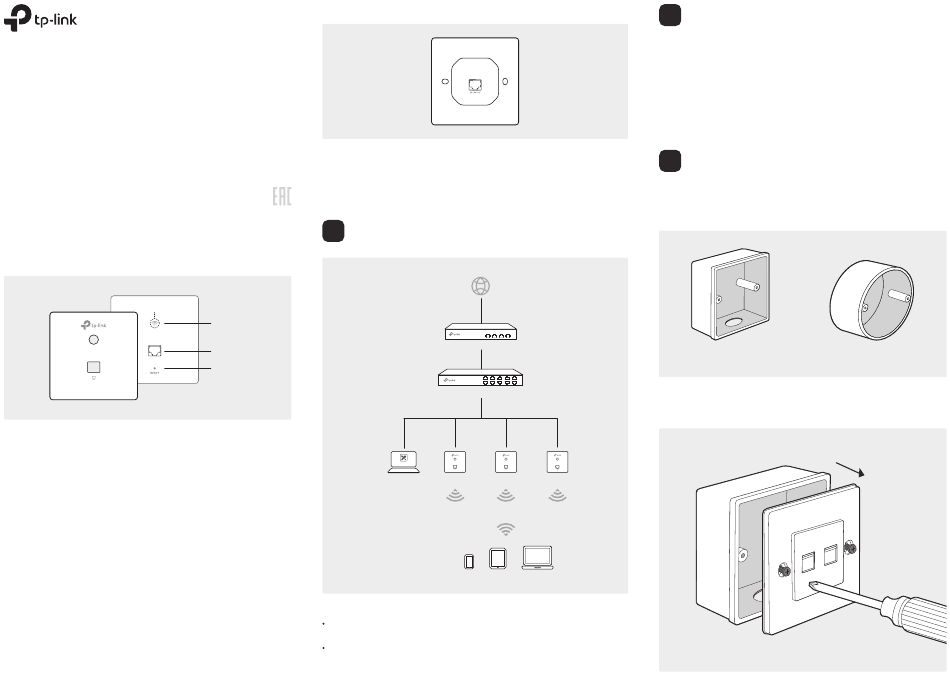

Hardware Overview

Front Panel
LED

LED/Wi-Fi Button

When the EAP is working in Standalone Mode and enabled with Wi-Fi
Control, press the button to turn on/off both of the Wi-Fi and LED. In other
cases, press the button to turn on/off the LED only.

LAN Port

A wired device can be connected to the LAN port via an Ethernet cable
and access the network.

RESET

With the EAP powered on, press and hold the button for about 5 seconds
until the LED flashes. The EAP will restore to factory default settings.

LED Indicator

On: Working normally/Initializing.
Off: Working abnormally/Power off/LED is turned off.
Flashing:
Initialization: The LED flashes twice after initialization is complete.
Upgrade: The LED flashes once per second while upgrading.
Reset: The LED flashes five times in quick session during the reset. The
EAP will then reboot.
Rear Panel
UPLINK+PoE Port
Connected to a PSE (Power Sourcing Equipment), such as a PoE switch, for
both data transmission and Power.

Network Topology

1
LED/Wi-Fi Button
LAN Port
RESET
The EAP115-Wall can only be powered by a PSE device, such as a PoE switch.
Connect the PoE switch to the UPLINK+PoE port with an Ethernet cable.
A DHCP server (typically a router) with DHCP function enabled is required to
assign IP addresses to the EAPs and clients in your local network.
Internet
Router
PoE Switch
EAP Controller
PC EAP EAP EAP
Clients
2

Pre-Installation Checklist

Before installation, be sure that you have the following items:
1. A pre-installed wall junction box 4. A Phillips screwdriver
2. An RJ45 plug 5. A PoE switch
3. A triangular screwdriver

Installation Steps

3
EAP115-Wall can be mounted into either an 86mm wall junction box or a
standard EU wall junction box. The junction box should be pre-installed with
a running-in-wall Ethernet cable connected to a PoE switch.
86mm wall junction box Standard EU wall junction box
1. Detach the faceplate of the junction box with a Phillips screwdriver
(demonstrated with an 86mm wall junction box).
