Seven externally connected temperature diodes and one internal diode are available for temperature sensing. The system shutdown temperature is configurable as is the alert alarm levels. All of the functions of the EMC1428 can be tested and observed with the USB-based EVB-EMC1428. A block diagram of this EVB is shown in Figure 1.1. -
Page 3: Getting Started
Follow the instructions in the readme.txt file to complete the installation process. 3. Start the EVB Software by selecting the Chip Manager application from the SMSC folder from the Programs Windows Start menu. The EVB will initialize and the Chip Manager Quick Help screen... - Page 4 EMC1428 EVB User Manual Figure 2.1 Chip Manager Quick Help Startup Screen Revision 1.0 (08-21-07) SMSC EMC1428...
- Page 5 EMC1428 EVB User Manual Figure 2.2 Chip Manager Help Screen SMSC EMC1428 Revision 1.0 (08-21-07)
-
Page 6: Board Layout

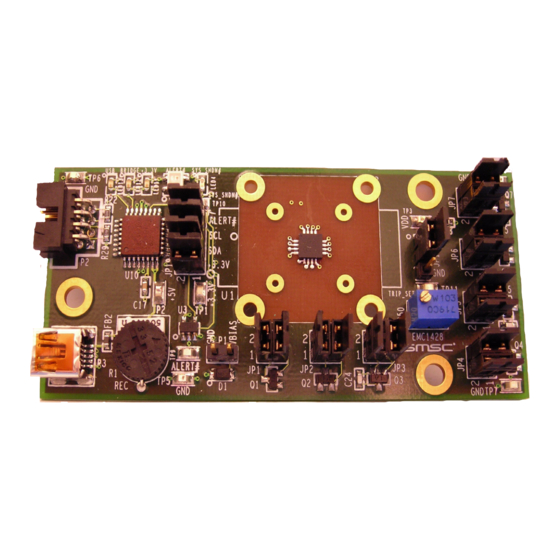

The EVB was designed for ease of use and user experimentation with easily accessible jumpers and access to the SMBus data lines. Figure 2.3 below shows the silk-screen for the EVB-EMC1428. Figure 2.3 EVB-EMC1428 Board Outline and Silk-screen Revision 1.0 (08-21-07) -
Page 7: Hardware Description
3.2.1 Direct SMBus Connect Option It is also possible to connect an external SMBus master to the EVB-EMC1428. A few jumper settings are all that is required to drive the EMC1428 on the EVB: Simply remove the jumpers on JP19 and connect the SMBus master to the SCL, SDA and ALERT pins, as well as an external supply for +3.3V. -
Page 8: Led Indicators
Pin 3 to the ‘remote-‘ terminal of the remote diode. Make sure a common ground exists between the remote diode (GPU, etc.) and the EVB-EMC1428. Also ensure that the remote diode is properly biased according to the diode manufacture. -
Page 9: Default Jumper Settings
- / open A unique feature of the EMC1428 devices is the ability to select the Hardware System shutdown temperature based on the resistor attached to the TRIP_SET pin and the tri-state setting of the SHDN_SEL pin. The EVB allows the user to quickly evaluate each of the many temperature values by adjusting R50. - Page 10 Note: dashed line indicates jumper position 3.10 Other Sensor Features Other features such as Ideality Factor Configuration, Conversion Rate, and Digital Filtering can be controlled with EMC1428 registers. See the datasheet register description for details. Revision 1.0 (08-21-07) SMSC EMC1428...
-
Page 11: Software Description
EMC1428. Figure 4.1below is a typical Temperature History with the external diode of the EMC1428 starting at room temp and then being heated by simply placing a finger on Q1. Figure 4.1 EMC1428 Temperature History Graph SMSC EMC1428 Revision 1.0 (08-21-07) - Page 12 EMC1428 EVB User Manual Revision 1.0 (08-21-07) SMSC EMC1428...
