Weider 831.150471 User Manual

Weider user's manual home gym 831.150471
Hide thumbs Also See for 831.150471:
Table of Contents

Advertisement

Quick Links

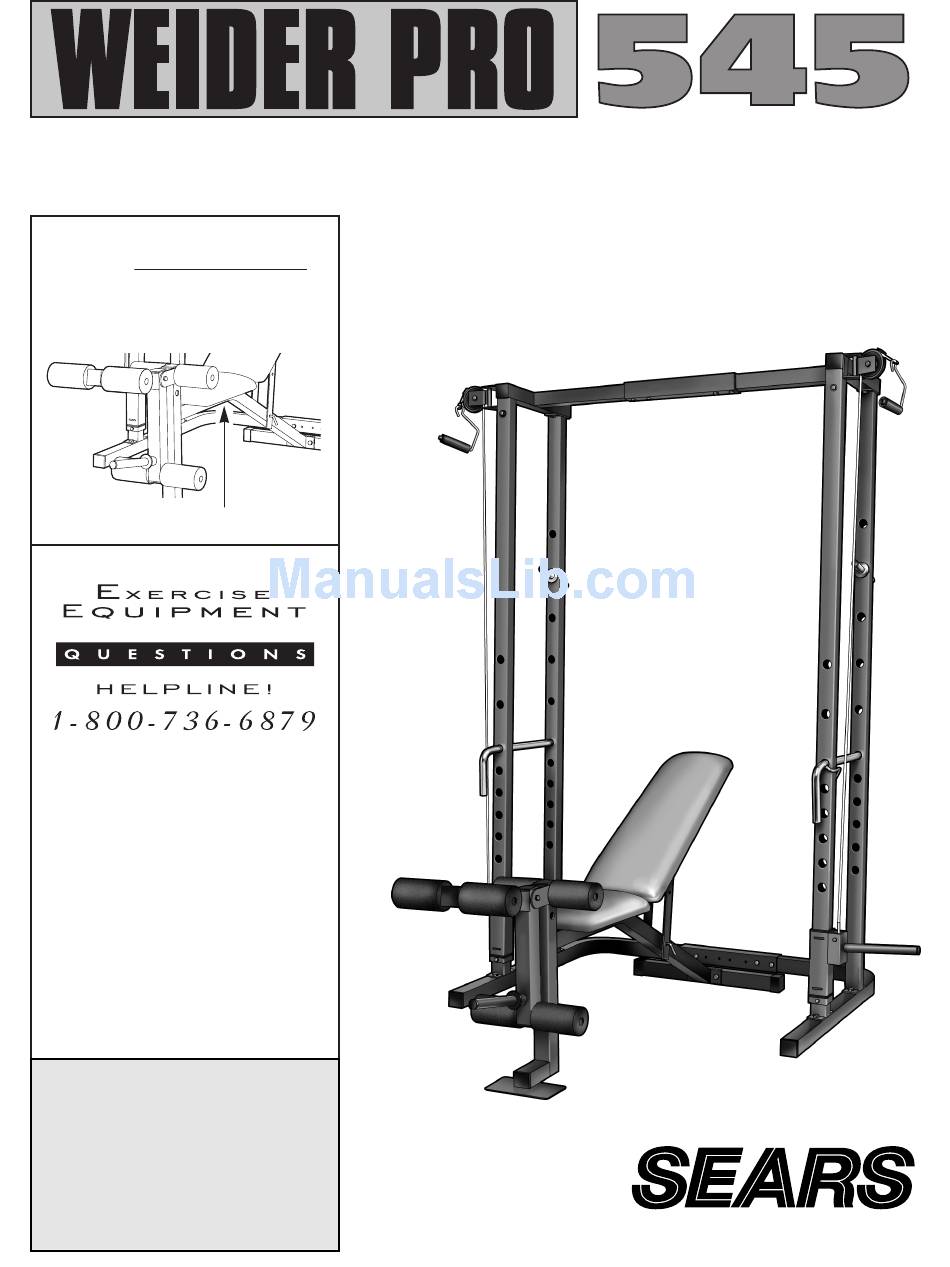

PATENT PENDING
USER'S MANUAL
Model No. 831.150471
Serial No.
The serial number can be found in the
location shown below. Write the serial
number in the space above.
Serial Number Decal (under seat)
CAUTION
Read all precautions and instruc-
tions in this manual before
using this equipment. Save this
manual for future reference.
SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 831.150471 and is the answer not in the manual?

Questions and answers

Related Manuals for Weider 831.150471

Summary of Contents for Weider 831.150471

  • Page 1 PATENT PENDING USER'S MANUAL Model No. 831.150471 Serial No. The serial number can be found in the location shown below. Write the serial number in the space above. Serial Number Decal (under seat) CAUTION Read all precautions and instruc- tions in this manual before using this equipment.

  • Page 2: Table Of Contents

    ADJUSTING THE WEIDER PRO 545 ........

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read the following important precautions before using the weight bench. 1. Read all instructions in this manual before using the weight bench. 2. Use the weight bench only as described in this manual.

  • Page 4: Warning Decal Placement

    WARNING DECAL PLACEMENT The decal shown below has been placed on the weight bench and on the squat rack. If either decal is missing, or if either decal is not legible, please call our toll-free HELPLINE at 1-800-736-6879, Monday through Saturday, 7 a.m. until 7 p.m. Central Time (excluding holidays), to order a free replacement decal. Apply the replacement decal to the location shown.

  • Page 5: Before You Begin

    To help us assist you, please note the prod- uct model number and serial number before calling. The model number is 831.150471. The serial number can be found on a decal attached to the PRO 545 Weight Bench (see the front cover of this manual).

  • Page 6: Assembly

    ASSEMBLY Before beginning assembly, carefully read the following information and instructions: • Assembly requires two people. • Place all parts in a cleared area and remove the packing materials; do not dispose of the packing materials until assembly is completed. •...
  • Page 7 3. Press 20mm x 40mm Inner Caps (44) into the ends of both Backrest Tubes (25). Lubricate an M10 x 152mm Bolt (11). Attach the Backrest Tubes (25) to the Bench Frame (49) with the Bolt and an M10 Nylon Locknut (14). See the inset drawing.
  • Page 8 7. Press three 50mm Square Inner Caps (36) into the Leg Lever (32). Press a 1” Round Inner Cap (41) into the Leg Lever. Press a 1” Angle Cap (5) onto the Leg Lever. 8. Lubricate the M10 x 75mm Bolt (10). Attach the Leg Lever (32) to the Front Leg (22) with the Bolt and an M10 Nylon Locknut (14).
  • Page 9 11. Note: The WEIDER PRO 545 is designed to be used with both olympic and standard barbells. If you will be using an olympic barbell, assemble the base in the wide position, as shown in the main drawing. If you will be using a standard barbell, assemble the base in the narrow position, as shown in the inset drawing.
  • Page 10 14. Insert a Weight Rest (37) into each Rear Upright (19). Be sure that the Weight Rests are inserted at the same level on both sides. 15. Slide a Front Upright (18) onto the indicated M8 x 58mm Carriage Bolts (6) in either section of the Base (20, 55).
  • Page 11 17. Slide a Carriage Stop (54) onto a Front Upright (18). Be sure that the 60mm Square Bushing (53) is facing up. Align the holes in the Carriage Stop with the holes in the Front Upright. Insert an M8 x 68mm Bolt (8) through the Carriage Stop and Front Upright.
  • Page 12 19. Attach each section of the Top Frame (21, 39) to the Front Uprights (18) with an M8 x 68mm Bolt (8), two M8 Washers (13), and an M8 Nylon Locknut (12). Attach each section of the Top Frame (21, 39) to the Rear Uprights (19) with two M8 x 68mm Bolts (8), two M8 Washers (13), and two M8 Nylon Locknuts (12).
  • Page 13 23. Press a 1” Round Inner Cap (41) into each end of a Spotter Tube (4). Press a 1” Round Inner Cap into each end of the other Spotter Tube (not shown). 24. Insert a Spotter Tube (4) through a Front Upright (18) and into a Rear Upright (19).

  • Page 14: Adjusting The Weider Pro 545

    ADJUSTING THE WEIDER PRO 545 The weight bench is designed to be used with your own weight set (not included). The steps below explain how the weight bench can be adjusted. See EXERCISE GUIDELINES on page 17 for important exercise information and refer to the accompanying exercise poster to see the correct form for each exercise.
  • Page 15 ADJUSTING THE WEIGHT RESTS Squat exercises and toe raise exercises naturally require that the Weight Rests (37) be set to a different height than bench press exercises. You should always set the Weight Rests to a height which is comfortable for the exercise you will perform.
  • Page 16 ADJUSTING THE POSITION OF THE PAD TUBE For some exercises you may want to move the Pad Tube (38) to the lower hole in the Front Leg (22). For other exercises you will want to leave the Pad Tube in the upper hole.

  • Page 17: Exercise Guidelines

    EXERCISE GUIDELINES THE FOUR BASIC TYPES OF WORKOUTS • Muscle Building In order to increase the size and strength of your muscles, you must push your muscles to a high per- centage of their capacity. You must also progressively increase the intensity of your exercise so that your muscles will continually adapt and grow.

  • Page 18: Muscle Chart

    for 3 minutes after each set if you are doing a muscle building workout, 1 minute after each set if you are doing a toning workout, and 30 seconds after each set if you are doing a weight loss workout. Plan to spend the first couple of weeks familiarizing yourself with the equipment and learning the proper form for each exercise.
  • Page 19 EXERCISE MONDAY Date: AEROBIC EXERCISE TUESDAY Date: EXERCISE WEDNESDAY Date: THURSDAY AEROBIC EXERCISE Date: EXERCISE FRIDAY Date: Make photocopies of this page for scheduling and recording your workouts. WEIGHT WEIGHT WEIGHT SETS REPS SETS REPS SETS REPS...
  • Page 20 M8 Nylon Locknut (12)—30 M10 Nylon Locknut (14)—9 M6 Washer (42)—7 M8 Washer (13)—12 M6 x 60mm Screw (16)—1 M6 x 48mm Screw (35)—4 M10 x 90mm Bolt (7)—2 M6 x 16mm Screw (17)—2 M8 x 68mm Bolt (8)—22 M8 x 58mm CarriageBolt (6)—8 M10 x 75mm Bolt (10)—3 M10 x 48mm Bolt (9)—2 M10 x 152mm Bolt (11)—2...
  • Page 21 3/8" Dome Cap (3)—2 3/4" Round Inner Cap (43)—6 1” Angle Cap (5)—1 1" Round Inner Cap (41)—11 20mm x 40mm Inner Cap (44)—4 50mm Square Outer Cap (40)—2 50mm Square Inner Cap (36)—11 60mm Square Bushing (53)—6...
  • Page 22 PART LIST—Model No. 831.150471 Part Qty. Description 139870 Spacer Tube 139871 Foam Grip 139872 3/8” Dome Cap 139873 Spotter Tube 139874 1” Angle Cap 139875 M8 x 58mm Carriage Bolt 139876 M10 x 90mm Bolt 139877 M8 x 68mm Bolt...
  • Page 23 EXPLODED DRAWING—Model No. 831.150471 R0997A...

  • Page 24: Replacement Parts

    SEARS, ROEBUCK AND CO., DEPT. 817WA, HOFFMAN ESTATES, IL 60179 Part No. 141602 G03215AC R0997B The model number and serial number of your WEIDER are listed on a decal attached to the frame. See the front cover of this manual to find the location of the decal.
