Model No. 831.150340
Serial No.
Write the serial number in the
space above for future reference.
Serial
Number
Decal
• Assembly
• Adjustments
• Part List and Drawing
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.

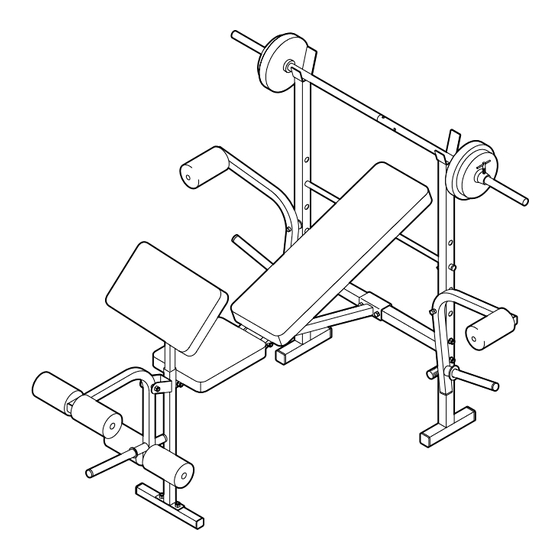

WEIGHT BENCH EXERCISER
Sears, Roebuck and Co., Hoffman Estates, IL 60179
User's Manual
Advertisement
Table of Contents
Related Manuals for Weider 831.150340
Summary of Contents for Weider 831.150340
- Page 1 Model No. 831.150340 Serial No. Write the serial number in the space above for future reference. Serial Number Decal • Assembly • Adjustments • Part List and Drawing CAUTION Read all precautions and instruc- tions in this manual before using this equipment.
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT PRECAUTIONS .............3 BEFORE YOU BEGIN . -
Page 3: Important Precautions
IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read the following important precautions before using the weight bench. 1. Read all instructions in this manual before using the weight bench. Use the weight bench only as described in this manual. 2. -
Page 4: Before You Begin
(1-800-469-4663). To help us assist you, please note the product model number and serial number before calling. The model number is 831.150340. The serial number can be found on a decal attached to the weight bench (see the front cover of this manual). -
Page 5: Assembly
ASSEMBLY Make Things Easier for Yourself This manual is designed to ensure that the weight bench can be assembled successfully by anyone. Most people find that by setting aside plenty of time, assembly will go smoothly. Before beginning assembly, carefully read the following information and instructions: •... - Page 6 3. Attach the Front Leg (8) to the Frame (2) with two M8 x 43mm Bolts (39), four M8 Washers (16), and two M8 Nylon Locknuts (17). Note: Do not tighten the Locknuts yet. 4. Attach the Frame (2) to the Crossbar (3) with two M8 x 55mm Bolts (18) and two M8 Nylon Locknuts (17).
- Page 7 8. Tap four 25mm Square Inner Caps (35) into the ends of the two Backrest Tubes (5). Attach the Backrest Tubes (5) to the Backrest (6) with four M6 x 38mm Screws (30) and four M6 Washers (26). Do not tighten the Screws yet. 9.
- Page 8 12. Press two Plastic Bushings (14) into the indicated holes in an Upright (1). Attach a Fly Arm (25) to the Upright with an M10 x 120mm Bolt (19) and an M10 Nylon Locknut (33). Make sure the Fly Arm is on the outside of the Fly Arm Stop (15). Do not overtighten the Locknut;...
-
Page 9: Adjustments
ADJUSTMENTS The steps below explain how the weight bench can be adjusted. Refer to the accompanying exercise guide to see the correct form for several exercises. Make sure all parts are properly tightened each time the weight bench is used. Replace any worn parts immediately. The weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. -
Page 10: Exercise Guidelines
ATTACHING THE CURL PAD For some exercises, the Curl Pad (45) needs to be attached to the weight bench. To do this, remove the 30mm Square Inner Cap (22) from the Front Leg (8). Insert the Curl Post (46) into the Front Leg and align an adjustment hole in the Curl Post with the adjust- ment hole in the Front Leg. -
Page 11: Exercise Form
WORKING OUT Each workout should include 6 to 10 different exercis- es. Select exercises for every major muscle group, emphasizing areas that you want to develop most. To give balance and variety to your workouts, vary the exercises from session to session. Schedule your workouts for the time of day when your energy level is the highest. -
Page 12: Part Identification Chart
PART IDENTIFICATION CHART This chart is provided to help you identify the small parts used in assembly. The number in parenthesis below each part refers to the key number of the part from the PART LIST in the center of this manual. Important: Some parts may have been pre-assembled for shipping purposes. -
Page 13: Parts List
PART LIST—Model No. 831.150340 Key No. Qty. Description Upright Frame Crossbar Leg Lever Backrest Tube Backrest Support Rod Front Leg 19mm Round Inner Cap Long Pad Tube Seat Short Pad Tube Stabilizer Plastic Bushing Fly Arm Stop M8 Washer M8 Nylon Locknut... - Page 14 EXPLODED DRAWING—Model No. 831.150340 R0803A...
- Page 15 WARRANTY For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this WEIGHT BENCH EXERCISER, contact the nearest Sears Service Center throughout the United States and Sears will repair or replace the WEIGHT BENCH EXERCISER, free of charge. This warranty does not apply when the WEIGHT BENCH EXERCISER is used commercially or for rental purposes.
