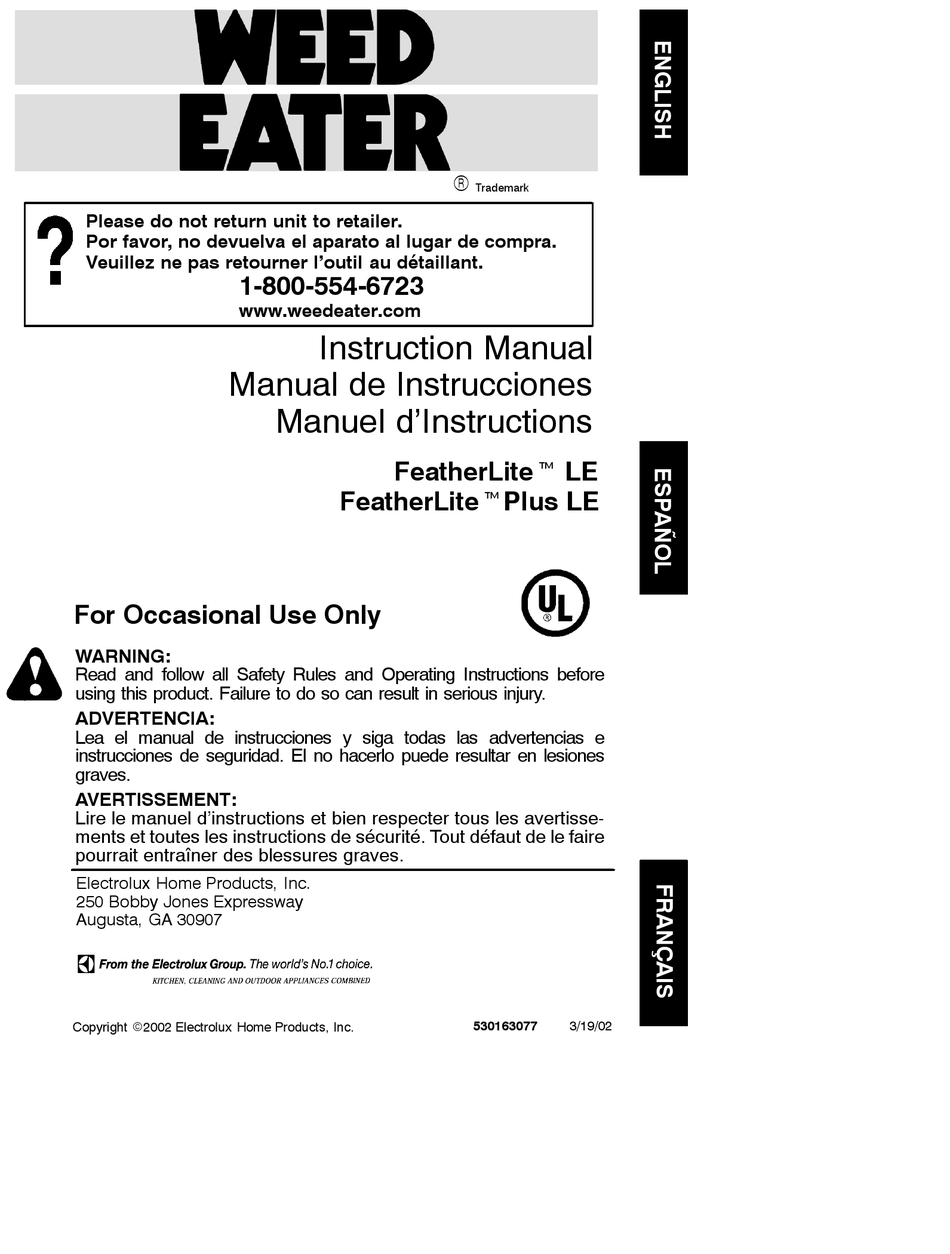

Please do not return unit to retailer.
Por favor, no devuelva el aparato al lugar de compra.
Veuillez ne pas retourner l'outil au détaillant.
1-800-554-6723
www.weedeater.com
Manual de Instrucciones
For Occasional Use Only
WARNING:
Read and follow all Safety Rules and Operating Instructions before
using this product. Failure to do so can result in serious injury.
ADVERTENCIA:
Lea el manual de instrucciones y siga todas las advertencias e
instrucciones de seguridad. El no hacerlo puede resultar en lesiones
graves.
AVERTISSEMENT:
Lire le manuel d'instructions et bien respecter tous les avertisse-
ments et toutes les instructions de sécurité. Tout défaut de le faire
pourrait entraîner des blessures graves.
Electrolux Home Products, Inc.
250 Bobby Jones Expressway
Augusta, GA 30907
Copyright E2002 Electrolux Home Products, Inc.
R
Instruction Manual
Manuel d'Instructions
FeatherLitet LE
FeatherLitetPlus LE
530163077
Trademark
3/19/02
Advertisement
Table of Contents
Related Manuals for Weed Eater FeatherLite 530163077
Summary of Contents for Weed Eater FeatherLite 530163077
- Page 1 Please do not return unit to retailer. Por favor, no devuelva el aparato al lugar de compra. Veuillez ne pas retourner l’outil au détaillant. 1-800-554-6723 www.weedeater.com Instruction Manual Manual de Instrucciones Manuel d’Instructions FeatherLitetPlus LE For Occasional Use Only WARNING: Read and follow all Safety Rules and Operating Instructions before using this product.
-
Page 2: Safety Rules
Keep others away when making carburetor adjustments. Use only recommended Weed Eater" ac- cessories and replacement parts. Have all maintenance and service not ex- plained in this manual performed by an autho- rized service dealer. - Page 3 CUTTING SAFETY WARNING: Inspect the area before each use. Remove objects (rocks, broken glass, nails, wire, etc.) which can be thrown by or become entangled in line. Hard objects can damage the trimmer head and be thrown causing serious injury. Use only for trimming, scalping, mowing and sweeping.
-
Page 4: Operation
2-cycle air-cooled engine oil designed to be mixed at a ratio of 40:1. Poulan/Weed Eater brand synthetic oil is recommended. Mix gasoline and oil at a ratio of 40:1. A 40:1 ratio is obtained by mixing 3.2 ounces of oil with 1 gallon of... -
Page 5: Starting A Flooded Engine
Engine Choke Lever ON/STOP Switch HALF FULL HOW TO START YOUR UNIT WARNING: The trimmer head will turn while starting the engine. Avoid any con- tact with the muffler. A hot muffler can cause serious burns. STARTING A COLD ENGINE (or a warm engine after running out of fuel) Starting Position... -
Page 6: Trimmer Line Advance
To stop engine: S Release the throttle trigger. S Push and release the engine ON/STOP switch. TRIMMER LINE ADVANCE The trimmer line will advance approximately 2 in. (5 cm) each time the bottom of the trimmer head is tapped on the ground with the engine running at full throttle. -
Page 7: Maintenance
MAINTENANCE WARNING: Disconnect the spark plug before performing maintenance except for carburetor adjustments. CHECK FOR LOOSE FASTENERS AND PARTS S Spark Plug Boot S Air Filter S Housing Screws S Assist Handle Screws S Debris Shield CHECK FOR DAMAGED OR WORN PARTS Contact an authorized service dealer for re- placement of damaged or worn parts. -
Page 8: Service And Adjustments
SERVICE AND ADJUSTMENTS LINE REPLACEMENT 1. Remove spool by firmly pulling on tap button. 2. Clean entire surface of hub and spool. 3. Replace with pre--wound spool, or cut a length of 20 feet of 0.080! (2 mm) diameter Weed Eaterr brand line. - Page 9 TROUBLESHOOTING TABLE WARNING: Always stop unit and disconnect spark plug before performing all of the recommended remedies below except remedies that require operation of the unit. TROUBLE CAUSE Engine will not 1. Engine flooded. start. 2. Fuel tank empty. 3. Spark plug not firing. 4.
-
Page 10: Limited Warranty
EMISSION CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OBLIGA- TIONS: The U.S. Environmental Protection Agency/California Air Resources Board and POULAN/WEED EATER, DIVISION OF WCI OUTDOOR PRODUCTS are pleased to ex- plain the emissions control system warranty on your year 2000--2003 small off--road engine. In... - Page 11 DIAGNOSIS: The owner shall not be charged for diagnostic labor which leads to the deter- mination that a warranted part is defective if the diagnostic work is performed at an approved POULAN/WEED EATER servicing center. CONSEQUENTIAL DAMAGES: POULAN/ WEED EATER...
