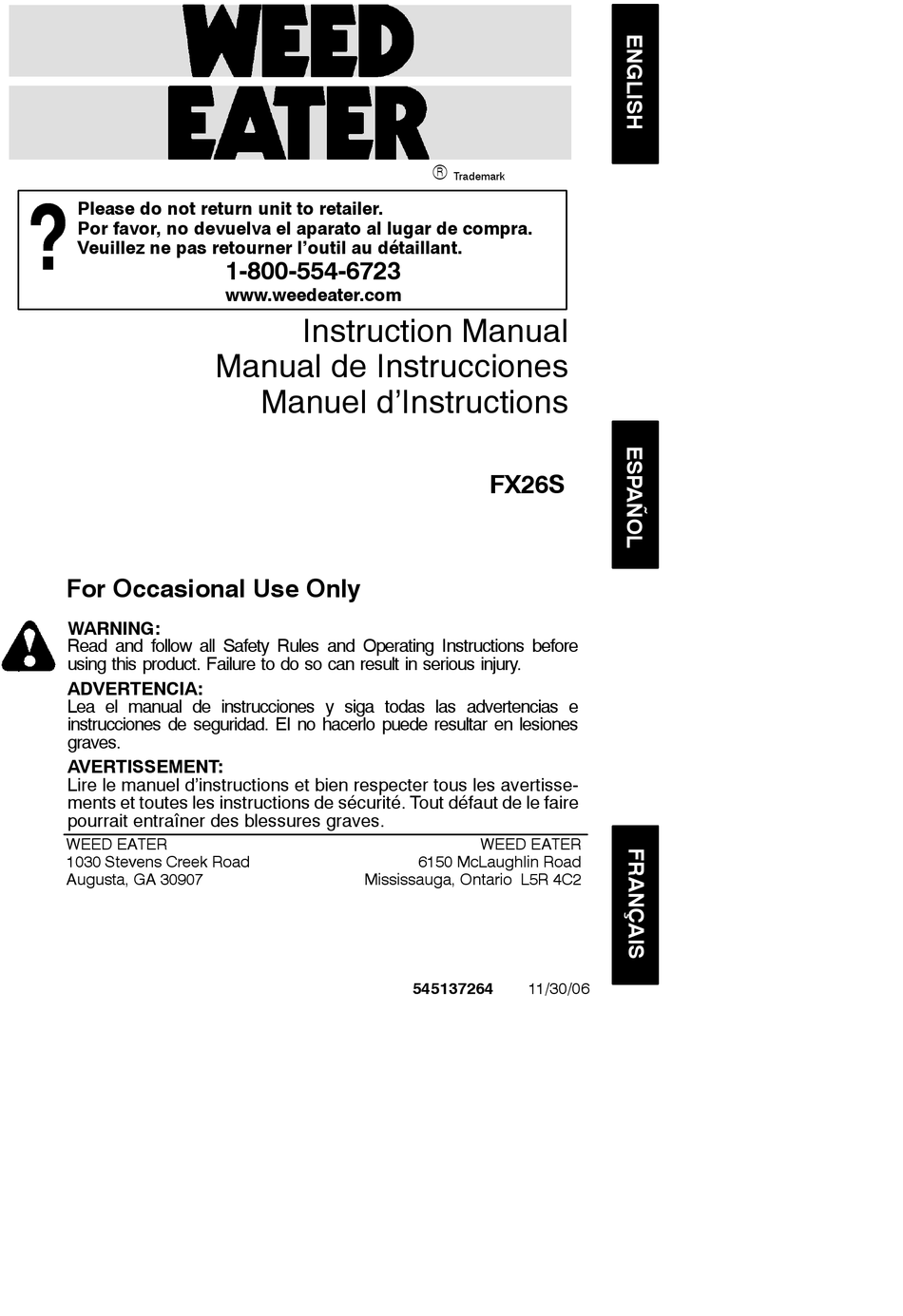

Please do not return unit to retailer.
Por favor, no devuelva el aparato al lugar de compra.
Veuillez ne pas retourner l'outil au détaillant.
1-800-554-6723
www.weedeater.com
Manual de Instrucciones
For Occasional Use Only
WARNING:
Read and follow all Safety Rules and Operating Instructions before
using this product. Failure to do so can result in serious injury.
ADVERTENCIA:
Lea el manual de instrucciones y siga todas las advertencias e
instrucciones de seguridad. El no hacerlo puede resultar en lesiones
graves.
AVERTISSEMENT:
Lire le manuel d'instructions et bien respecter tous les avertisse-
ments et toutes les instructions de sécurité. Tout défaut de le faire
pourrait entraîner des blessures graves.
WEED EATER
1030 Stevens Creek Road
Augusta, GA 30907
Instruction Manual
Manuel d'Instructions
6150 McLaughlin Road
Mississauga, Ontario L5R 4C2
545137264
R
Trademark
FX26S
WEED EATER
11/30/06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 545137264 and is the answer not in the manual?

Questions and answers

Summary of Contents for Weed Eater 545137264

  • Page 1 AVERTISSEMENT: Lire le manuel d’instructions et bien respecter tous les avertisse- ments et toutes les instructions de sécurité. Tout défaut de le faire pourrait entraîner des blessures graves. WEED EATER 1030 Stevens Creek Road Augusta, GA 30907 Trademark Instruction Manual...
  • Page 2: Safety Rules

    Keep others away when making carburetor adjustments. Use only recommended WEED EATER ac- cessories and replacement parts. Have all maintenance and service not ex- plained in this manual performed by an autho- rized service dealer.
  • Page 3: Transporting And Storage

    WARNING: Inspect the area before each use. Remove objects (rocks, broken glass, nails, wire, etc.) which can be thrown by or become entangled in line. Hard objects can damage the trimmer head and be thrown causing serious injury. Use only for trimming, scalping, mowing and sweeping.
  • Page 4: Operation

    This engine is certified to operate on unleaded gasoline. Before operation, gasoline must be mixed with a good quality synthetic 2-cycle air-cooled engine oil designed to be mixed at a ratio of 40:1. Poulan/WEED EATER brand synthetic oil is recommended. Mix gasoline and Slot Bracket...
  • Page 5 mixing 3.2 ounces (95 ml) of oil with 1 gallon (4 liters) of unleaded gasoline. DO NOT USE automotive oil or marine oil. These oils will cause engine damage. When mixing fuel, follow instructions printed on container. Once oil is added to gasoline, shake container momentarily to assure that the fuel is thoroughly mixed.
  • Page 6: Operating Position

    Flooded engines can be started by placing the choke lever in the RUN position; then, pull the rope to clear the engine of excess fuel. This could require pulling the starter handle many times depending on how badly the unit is flooded.
  • Page 7: Maintenance

    If any dealer other than an authorized service dealer performs work on the product, WEED EATER may not pay for repairs under warranty. It is your re- sponsibility to maintain and perform general maintenance.
  • Page 8: Service And Adjustments

    2. Clean entire surface of hub and spool. 3. Replace with a pre-wound spool, or cut two lengths of 12-1/2 feet of 0.080″ (2 mm) di- ameter WEED EATER brand line. WARNING: Never use wire, rope, string, etc., which can break off and become a dangerous missile.
  • Page 9 STORAGE WARNING: Perform the following steps after each use: S Allow engine to cool, and secure the unit before storing or transporting. S Store unit and fuel in a well ventilated area where fuel vapors cannot reach sparks or open flames from water heaters, electric motors or switches, furnaces, etc.
  • Page 10 WARNING: Always stop unit and disconnect spark plug before performing all of the recommended remedies below except remedies that require operation of the unit. TROUBLE CAUSE Engine will not 1. Engine flooded. start. 2. Fuel tank empty. 3. Spark plug not firing. 4.
  • Page 11: Limited Warranty

    You are responsible for presenting your small off- -road engine to an WEED EATER au- thorized repair center as soon as a problem ex- ists. Warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.
  • Page 12: Maintenance, Replacement And Repair Of Emission Related Parts

    PARTS: The use of add- -on or modified parts can be grounds for disallowing a warranty claim. WEED EATER is not liable to cover fail- The information on the product label indicates which standard your engine is certified. Example: (Year) EPA Phase 1 or Phase 2 and/or CALIFORNIA.
