Operating Manual
PSMEGA 1
Microcontroller, Single pump control
Options
FS PSMEGA1Freiluftsäule
Messglocke V4A
Schwimmschalter
Tauchsensor
PSMEGA1_2v0 / 04092020
LESA Messtechnik
Hegholt 59
22179 Hamburg
Germany
Phone +49 40 641 00 41
www.lesa.de
Fax
+49 40 641 18 36

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSMEGA 1 and is the answer not in the manual?

Questions and answers

Summary of Contents for LESA Messtechnik PSMEGA 1

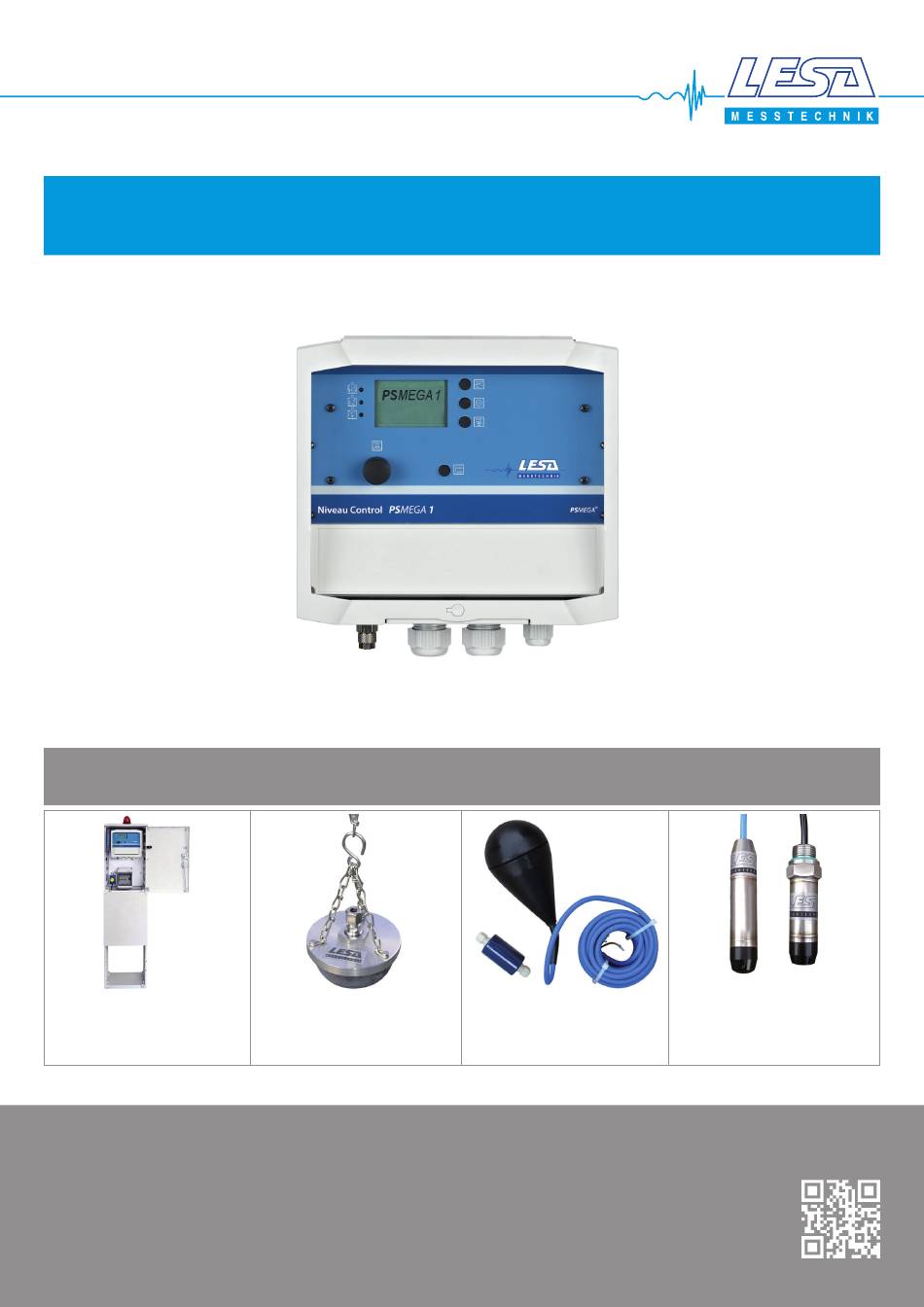

  • Page 1 Operating Manual PSMEGA 1 Microcontroller, Single pump control Options FS PSMEGA1Freiluftsäule Messglocke V4A Schwimmschalter Tauchsensor PSMEGA1_2v0 / 04092020 LESA Messtechnik Hegholt 59 22179 Hamburg Germany Phone +49 40 641 00 41 www.lesa.de +49 40 641 18 36...

  • Page 2: Table Of Contents

    PSMEGA 1 Table of contents General About this document Safety Identification of information in the operating instructions Warning and safety information Applications Personnel qualifications Safety instructions for the operator 2.3.1 Electrical work Dangers of non-compliance with safety information Operating instructions...

  • Page 3: General

    PSMEGA 1 General Personnel qualifications Personnel tasked with the installation, commissioning and About this document maintenance of the switchgear must hold the requisite These operating instructions are part of the product. They must be qualifications. kept in the vicinity of the product at all times. The careful observance...

  • Page 4: Impermissible Use

    - Monitoring of all three phases - Motor contactor monitoring Product description The pump control PSMEGA 1 is used for the level control of liquid Optional functions and/or components levels. The filling level is optionally determined via dynamic pressure, (only included in delivery if specified specifically in the bubbler system, external sensor (4 - 20 mA) or float switch.

  • Page 5: Display

    PSMEGA 1 Pushbutton switch – Manual operation The pump is switched based on the level. The green LED is lit continuously. If power is interrupted during manual mode, then the Pushbutton switch – Off control system will return to the automatic mode. The operation modes “Auto”...
  • Page 6 PSMEGA 1 Configuration menu The following table shows the configuration possibilities. The display’s top line shows the option, the bottom line is the value that can be changed. 1. line of Display Option for Setting Explanation Last fault 1-4 Delete value The last 4 errors remain stored in the non-volatile memory and can be deleted in the position “Last fault 1”...

  • Page 7: Supplements To The Individual Items In The Configuration Menu

    Menu items factory settings, data import and 5.2.6 Inspection export The PSMEGA 1 can issue a message on the display on when servicing is to be performed. The configuration possibilities are 90, 180 or Menüpunkt Erklärung 365 days. The function can also be turned off at this point in the Preferences reset All settings can be reset with this function.
  • Page 8 At this point, the file name is assigned for the configuration and log It can be selected whether the control system will run via the internal files. The file name PSMEGA 1 is preset. A code page can be opened level sensor (dynamic pressure, bubbler system), an external 4 - by pressing the select/ acknowledge button.
  • Page 9 PSMEGA 1 Fault messages, possible malfunctions, corrections Fault messages on the display Message on Display Possible cause Correction Thermal Fault 1 The controller contact of the If the pump in use does not come with the required thermal according pump initiates.

  • Page 10: The Settings In The Menu Cannot Be Changed

    Installation The connections L1 L2 L3 of the pump are directly attached to the The control unit PSMEGA 1 is placed in a control box that measures motor contactor. The protective earth conductor is connected to the 250 x 225 x 115 mm (H x W x D) with screw fittings and air remaining PE terminal.

  • Page 11: Fault Signaling Outputs

    PSMEGA 1 7.4 - 9 Electrical connection of the fault signalling External level sensor 4 – 20 mA outputs and the signal inputs (image 2 annex) “4 - 20 mA interface” must be selected in the menu under “Level Fault signalling outputs control”.

  • Page 12: Test Mode Without Pump

    PSMEGA 1 Test mode without pump 10.0 Norms: In order to test the control unit without pumps the following needs to be considered Applicable EC directives: - It is sufficient to connect N1 and L1 EC Low Voltage Directive 2014/35/EC...
  • Page 13 PSMEGA 1 12.0 Annex: Terminal block wiring diagrams Terminal connection of 3~ motors Terminal connection of 1~ motors Caution! When connecting 1~ motors the maximum connected load is 2,4 KW. www.lesa.de...
  • Page 14 PSMEGA 1 Relay outputs, signal inputs and analogue outputs www.lesa.de...
  • Page 15 PSMEGA 1 A=180 mm B=180mm o = 5,0mm www.lesa.de...
