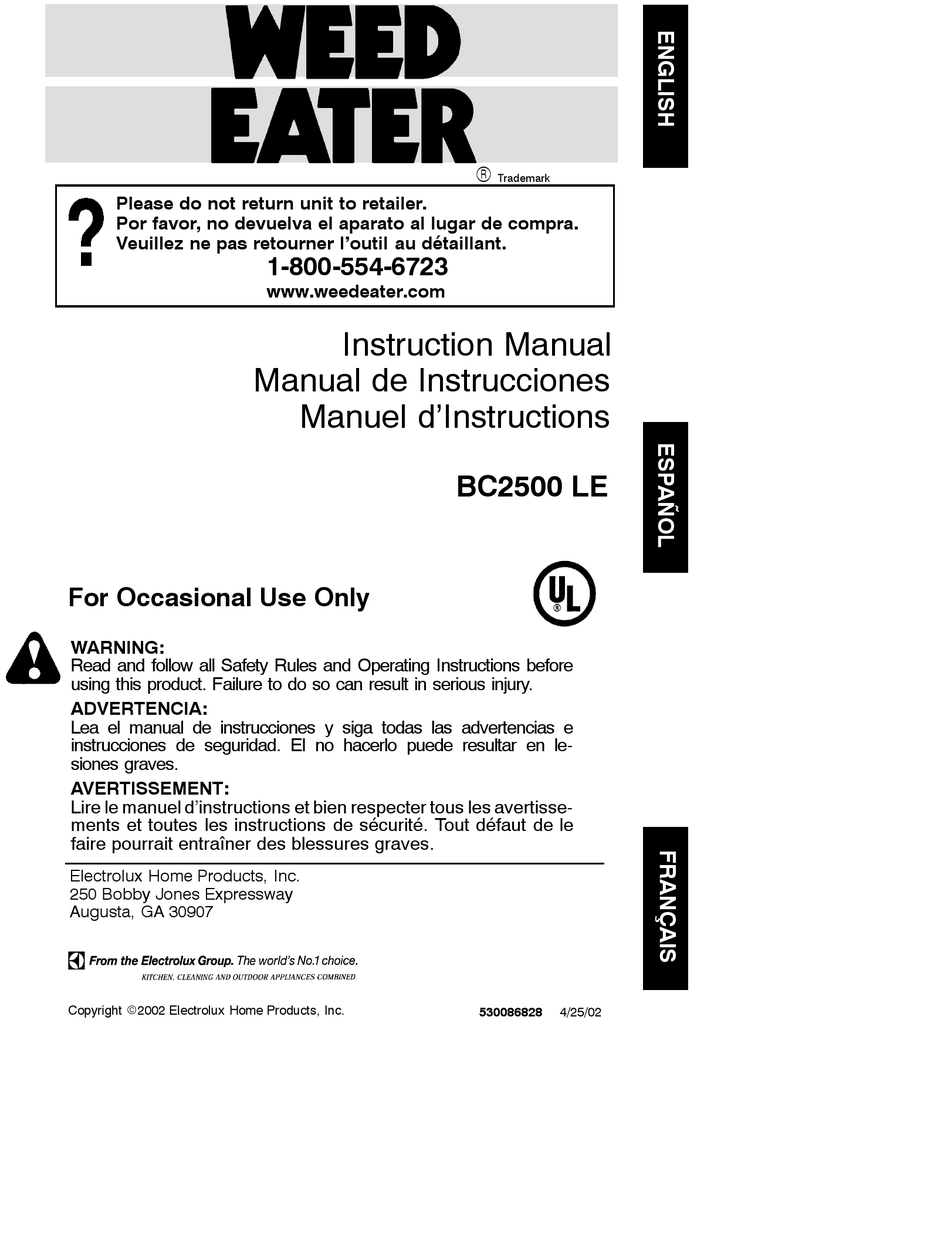

Please do not return unit to retailer.
Por favor, no devuelva el aparato al lugar de compra.
Veuillez ne pas retourner l'outil au détaillant.
1-800-554-6723
www.weedeater.com
Manual de Instrucciones
For Occasional Use Only
WARNING:
Read and follow all Safety Rules and Operating Instructions before
using this product. Failure to do so can result in serious injury.
ADVERTENCIA:
Lea el manual de instrucciones y siga todas las advertencias e
instrucciones de seguridad. El no hacerlo puede resultar en le-
siones graves.
AVERTISSEMENT:
Lire le manuel d'instructions et bien respecter tous les avertisse-
ments et toutes les instructions de sécurité. Tout défaut de le
faire pourrait entraîner des blessures graves.
Electrolux Home Products, Inc.
250 Bobby Jones Expressway
Augusta, GA 30907
Copyright E2002 Electrolux Home Products, Inc.
R
Trademark
Instruction Manual
Manuel d'Instructions
BC2500 LE
530086828
4/25/02
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Weed Eater 530086828
Summary of Contents for Weed Eater 530086828
- Page 1 Lire le manuel d’instructions et bien respecter tous les avertisse- ments et toutes les instructions de sécurité. Tout défaut de le faire pourrait entraîner des blessures graves. Electrolux Home Products, Inc. 250 Bobby Jones Expressway Augusta, GA 30907 Copyright E2002 Electrolux Home Products, Inc. Trademark BC2500 LE 530086828 4/25/02...
-
Page 2: Safety Rules
SAFETY RULES WARNING: When using gardening appliances, basic safety precautions must al- ways be followed to reduce the risk of fire and serious injury. DANGER: This power tool can be dangerous! This unit can cause serious injury including amputation or blindness to the op- erator and others. - Page 3 S Keep handles free of oil and fuel. S Always use the handlebar and a properly adjusted shoulder strap with a blade (see ASSEMBLY). UNIT/MAINTENANCE SAFETY WARNING: Stop unit and disconnect the spark plug before performing mainte- nance (except carburetor adjustments). S Look for and replace damaged or loose parts before each use.
- Page 4 equipped with a spark arresting screen. If you operate in a locale where such regulations ex- ist, you are legally responsible for maintaining the operating condition of these parts. Failure to do so is a violation of the law. For normal homeowner use, the muffler and spark arrest- ing screen will not require any service.
- Page 5 NOTE: Remove the blade and metal shield before attaching the plastic shield and trim- mer head. To remove blade, push in locking lever and hold. Rotate blade nut until the lock- ing lever falls into one of the grooves in the dust cup.
- Page 6 Do not use any blades, or fastening hardware other than the washers and nuts shown in the following illustrations. These parts must be provided by Poulan/Weed Eater and installed as shown below. Failure to use proper parts can cause the blade to fly off and seriously hurt you or others.
-
Page 7: Operation
Before operation, gasoline must be mixed with a good quality synthetic 2-cycle air-cooled engine oil. We recommend Poulan/Weed Eater brand synthetic oil. Mix gasoline and oil at a ratio of 40:1 . A 40:1 ratio is obtained by mixing 3.2 ounces of oil with 1 gallon of unleaded gasoline. -
Page 8: Starting A Flooded Engine
HOW TO START YOUR UNIT WARNING: The trimmer head will turn while starting the engine. Avoid any con- tact with the muffler. A hot muffler can cause serious burns. STARTING A COLD ENGINE (or a warm engine after running out of fuel) Starting Position Starter Handle... -
Page 9: Trimmer Line Advance
OPERATING INSTRUCTIONS FOR USE WITH TRIMMER HEAD WARNING: Always wear eye protec- tion. Never lean over the trimmer head. Rocks or debris can ricochet or be thrown into eyes and face and cause blindness or other serious injury. Before trimming, bring engine to a speed suffi- cient to cut material to be trimmed. - Page 10 SWEEPING -- The fanning action of the rotating line can be used to blow away loose debris from an area. Keep the line parallel to and above the area surface and swing the tool from side to side. OPERATING INSTRUCTIONS FOR USE WITH WEED BLADE S Blade Thrust is a reaction that only occurs when using a bladed unit.
-
Page 11: Maintenance
MAINTENANCE WARNING: Disconnect the spark plug before performing maintenance except for carburetor adjustments. CHECK FOR LOOSE FASTENERS AND PARTS S Spark Plug Boot S Air Filter S Housing Screws S Assist Handle Screw S Debris Shield CHECK FOR DAMAGED OR WORN PARTS Contact an authorized service dealer for re- placement of damaged or worn parts. -
Page 12: Service And Adjustments
SERVICE AND ADJUSTMENTS REPLACING THE LINE 1. Remove spool by firmly pulling on tap button. 2. Clean entire surface of hub and spool. 3. Replace with a pre-wound spool, or cut two lengths of 12-1/2 feet of 0.080! (2 mm) dia- meter Weed Eaterr brand line. - Page 13 TROUBLESHOOTING TABLE WARNING: Always stop unit and disconnect spark plug before performing all of the recommended remedies below except remedies that require operation of the unit. TROUBLE CAUSE Engine will not 1.ON/OFF switch in OFF start. position. 2. Engine flooded. 3.
-
Page 14: Limited Warranty
Where a warrantable condition exists, POULAN/ WEED EATER will repair your small off--road engine at no cost to you. Expenses covered under warranty include diagnosis, parts and labor. MANUFACTURER’S WARRANTY COVERAGE: If any emissions related part... - Page 15 POULAN/WEED EATER serv- icing center. CONSEQUENTIAL DAM- AGES: POULAN/WEED EATER may be li- able damages other engine components caused by the failure of a war- ranted part still under warranty.
