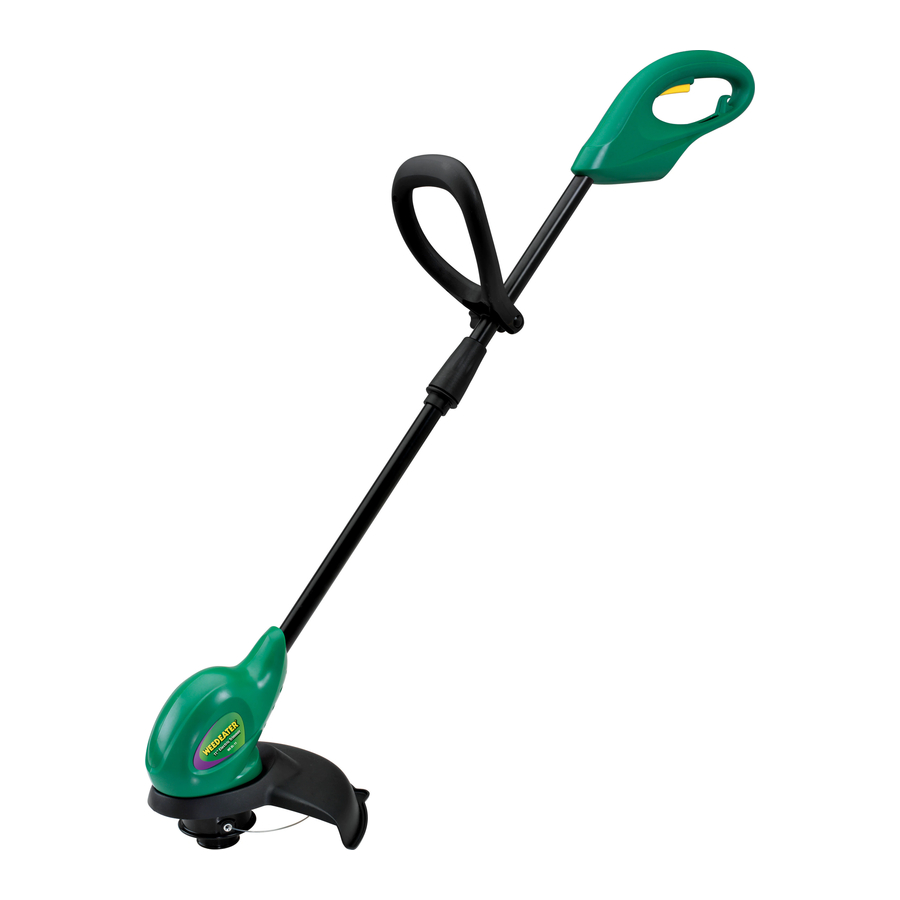

Weed Eater 115253326 Instruction Manual

Weed Eater 115253326 Instruction Manual

Weed eater trimmer instruction manual

Advertisement

Please do not return unit to retailer.
Por favor, no devuelva el aparato al lugar de compra.
Veuillez ne pas retourner l'outil au détaillant.
Register your product online at:
Registre su producto en línea en:
Enregistrez votre produit en ligne à l'adresse :
245157
WARNING:
Read and follow all Safety Rules and Operating Instructions before
using this product. Read instructions carefully before assembling.
Failure to do so can result in serious injury.
ADVERTENCIA:
Lea el manual del operador y siga todas las advertencias e instruc-
ciones de seguridad. Antes de ensamblar el producto lea cuidado-
samente el instructivo. El no hacerlo puede resultar en lesiones gra-
ves.
AVERTISSEMENT:
Veuillez lire le manuel de l'utilisateur et bien respecter tous les
avertissements et toutes les instructions de sécurité. Bien lire les
instructions avant d'assembler l'outil. Tout défaut de le faire pourrait
entraîner des blessures graves.
WEED EATER
7349 Statesville Road
Charlotte, NC 28269
1-800-554-6723
www.weedeater.com
Instruction Manual
Manual de Instrucciones
Manuel d'Instructions
Mississauga, Ontario L5V 0B4
115253326
Rev.3 05/07/10 JBW
®
Trademark
WE EL-11
WEED EATER
850 Matheson Blvd. West

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 115253326 and is the answer not in the manual?

Questions and answers

Summary of Contents for Weed Eater 115253326

  • Page 1 Veuillez lire le manuel de l’utilisateur et bien respecter tous les avertissements et toutes les instructions de sécurité. Bien lire les instructions avant d’assembler l’outil. Tout défaut de le faire pourrait entraîner des blessures graves. WEED EATER 7349 Statesville Road Charlotte, NC 28269 115253326 ®...
  • Page 2: Safety Rules

    SAFETY RULES WARNING: When using electric gar- dening appliances, basic safety precautions must always be followed to reduce the risk of fire, electric shock, and serious injury. Read and follow all instructions. SAFETY INFORMATION ON THE UNIT This power unit can be dangerous! Operator is responsible for following the warnings and instructions in this manual and on the unit.
  • Page 3: Unit Safety

    Never use wire, rope, string, etc. S Use specified trimmer spool. Make sure spool is properly installed and all parts are securely fastened. S Use only WEED EATER replacement parts and accessories as recommended. CUTTING SAFETY WARNING: Inspect area to be cut.
  • Page 4: Tube Assembly

    ASSEMBLY WARNING: If received assembled, review all assembly steps to ensure your unit is properly assembled and all fasteners are secure. TUBE ASSEMBLY Upper Locking Sleeve Assembly Wire protector Wires Lower Locking Sleeve Assembly 1. Remove the wire protector from the tubes and discard.
  • Page 5: Operation

    Holes Bolt Twist shield in this direction to assemble CAUTION: Sharp line limiter blade OPERATION KNOW YOUR TRIMMER READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with the location of the various controls and adjustments.
  • Page 6: Attach Extension Cord

    Use only a voltage supply as specified on your unit. SELECT AN EXTENSION CORD Extension Cord Gauge Chart Length of Cord Gauge 18 Gauge 25 Ft. (7.5 m) 16 Gauge 50 Ft. (15 m) 16 Gauge 100 Ft. (30 m) Extension cords are available for this unit.
  • Page 7: Sweeping

    3. Clean entire surface of hub and spool. 4. Replace with a pre-wound spool or cut a length of 30 feet of 0.065″ (1.65 mm) di- ameter WEED EATER brand line. Use of heavier lines could overload and damage unit.
  • Page 8: Replaceable Service Parts

    REPLACEMENT PART Spool with 0.065″ Trimmer Line t s i t l o M6x1 Knob Bolt STORAGE WARNING: Perform the following steps after each use. • Stop the unit and disconnect the power source when not in use. • Carry the unit with motor stopped. •...
  • Page 9: Limited Warranty

    WEED EATER brand electric or cordless product within two (2) years from the original date of purchase. If your WEED EATER brand electric or cordless product should fail within the limited warranty period, you may return it in complete condition,...
