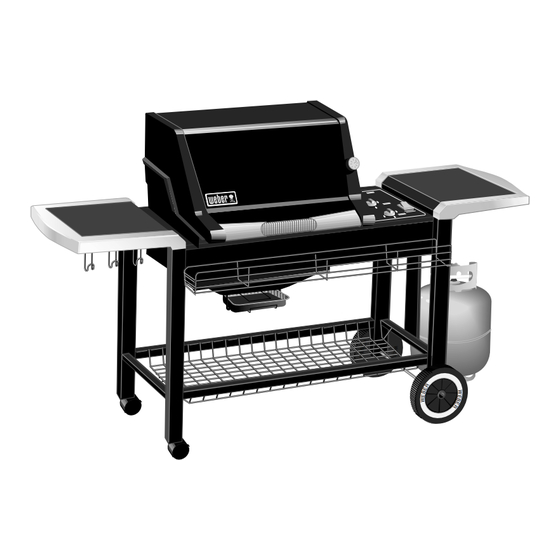

Owners Guide
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. Open lid
4. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
Leaking gas may cause a fire or explosion
which can cause serious bodily injury or
death, or damage to property.
WARNING
1. Do not store spare liquid propane
cylinder within 10 feet (3m) of this
appliance.
2. Do not store or use gasoline or other
flammable liquids or vapors within 25
feet (8m) of this appliance.
WARNING: Follow all leak-check
procedures carefully in this manual prior
to barbecue operation. Do this even if the
barbecue was dealer-assembled.
NOTICE TO INSTALLER: These
instructions must be left with the owner
and the owner should keep them for future
use.
THIS GAS APPLIANCE IS DESIGNED FOR
OUTDOOR USE ONLY.
WARNING: Do not try to light this
appliance without reading the "Lighting"
Instructions section of this manual
Liquid Propane Gas
Y
OU MUST READ THIS
BEFORE OPERATING YOUR GAS GRILL
A127.c
B018.a
C016.c
D002.g
O
G
WNERS
UIDE
55059 05/16/01
Advertisement
Table of Contents
Related Manuals for Weber GENESIS GOLD B A127.C
Summary of Contents for Weber GENESIS GOLD B A127.C
- Page 1 Owners Guide DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flames. 3. Open lid 4. If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department. Leaking gas may cause a fire or explosion which can cause serious bodily injury or death, or damage to property.
-
Page 2: Warranty
Improper assembly may be dangerous. Please carefully follow the assembly instructions in this manual. After a period of storage, and/or nonuse, the Weber Gas Barbecue should be checked for gas leaks and burner obstructions before use. See instructions in this manual for correct procedures. - Page 3 If you are required to return defective parts, transportation charges must be prepaid. Weber will return parts to the purchaser, freight or postage prepaid. This Limited Warranty does not cover any failures or...
-
Page 4: Table Of Contents
Contents Danger & Warnings ... A-2 Warranty ... A-3 General Instructions ... A-5 Exploded View ... A-6 Parts List ... A-10 Assembly Instructions ... B-1 Installing work surfaces and gas supply Guidelines ... C-1 Operating ... D-1 Lighting ... D-1 Manual Lighting ... -
Page 5: General Instructions
The closed lid and Flavorizer® Bars produce that “outdoor” flavor in the food. The Weber Gas Barbecue is portable so you can easily change its location in your yard or on your patio. Portability means you can take your Weber Gas Barbecue with, if you move. - Page 6 Genesis Gold-B LP 051601...
- Page 7 Hair Pin Cotter Hinge Pin Left Endcap Shroud 1/4-20 x 1 1/4 inch Bolt Handle lock Handle Warm-Up ™ Basket Warming Rack Cooking Grates Flavorizer ® Bars Cooking Box 1/4-20 keps nut Slide Out Bottom Tray Catch Pan Holder Work Surface Trim Work Surface Side Frame (Right front/Left rear) Side Frame (Left front/Right rear)
- Page 8 ® of Weber-Stephen Products Co., 200 East Daniels Road, Palatine, IL, 60067-6266, U.S.A. This product is covered by one or more United States patents and patents in other nations globally. Printed in the U.S.A.
- Page 9 Remove Packaging from Grill Remove all tape from packaging. Remove bottom rack from top of packaging. Remove outer box. Pull out bottom tray from cooking box. Remove packaging material from bottom tray, catch pan holder, catch pan, and drip pan. Remove Grill from Lower Packaging WARNING: Lifting the barbecue from the lower packaging requires at least two people.
- Page 10 You will need: Phillips screwdriver 7/16 open-end or an adjustable wrench Flavorizer Bars - 5 Cooking Grates - 2 Condiment basket - 1 Bottom Shelf - 1 Slide Out Buttom Tray - 1 Catch pan holder - 1 Catch Pan - 1 Disposable Drip Pans - 2 1/2 inch bolts (1/4 x 20 x 1/2 inch bolts) - 4 Nylon Washers - 4...
-
Page 11: Assembly Instructions
Assembly Instructions Install the slide out bottom tray You will need: the slide out bottom tray(1), catch pan holder(2), catch pan and one disposable drip pan. Hook the ends of the catch pan holder into the hole in the slide out bottom tray. The front of the catch pan holder must be on the same side as the finger grip(1) of the bottom tray. - Page 12 Installing the Warm-Up™ Basket You will need: Warm-Up Basket Insert one end of the Weber Warm-Up Basket into the hole at the right side of the inside of the lid, and the other end into the slot at the left side of the lid.
- Page 13 Installing work Surfaces & Gas Connection Guidelines Install Left Work Surface You will need left work surface, two 1/2 inch bolts, two nylon washers and a 7/16 inch or adjustable wrench. Insert the left work surface tabs in the slots in the frame(1).
- Page 14 NEVER store a spare LP Cylinder under or near this barbecue. NEVER fill the tank beyond 80% full. Your Weber gas grill is equipped with a cylinder supply system designed for vapor withdrawal. WARNING: Only use this grill outdoors in a well- ventilated area.
- Page 15 Connect filled liquid propane cylinder WARNING: Make sure that the cylinder valve is closed. Close by turning clockwise. Remove plastic dust cover from the fuel cylinder valve. Screw the regulator coupling onto the tank valve(1), clockwise, or to the right. Hand tighten only. Note: This is a new type of connection.
- Page 16 The burners have been flame-tested. As a safety precaution however, you should recheck all fittings for leaks before using your Weber Gas Barbecue. Shipping and handling may loosen or damage a gas fitting. WARNING: Perform these leak checks even if your barbecue was dealer or store assembled.
- Page 17 Reinstall control panel (after checking for gas leaks) (1) Set the control panel in place over both sides of the frame. Hold the crossover ignition button up while setting the control panel in place. (2) Line up the control panel with the white plastic plugs in the frame brace.
-
Page 18: Operating
If the hose is found to be damaged in any way, do not use the barbecue. Replace using only Weber authorized replacement hose. Contact the Cus- tomer Service Representative in your region using the contact information sheet provided with your manual. -
Page 19: Manual Lighting
Manual Lighting DANGER Failure to open the lid while igniting the barbecue’s burners, or not waiting 5 min- utes to allow the gas to clear if the barbe- cue does not light, may result in an explo- sive flame-up which can cause serious bodily injury or death. -
Page 20: Cooking
You can adjust the FRONT and BACK burners as desired. The control settings: High (H), Medium (M), Low (L), or Off (O) are described in your Weber cookbook. The cookbook uses these notations to describe the settings of the FRONT and BACK burn- ers. - Page 21 1) Turn the LP cylinder so the opening of the valve is either to the front, side or rear of the Weber Gas Barbecue. Lift and hook the cylinder onto the fuel guage.
- Page 22 2) Loosen the cylinder lock wing nut. Swing the cylinder lock down. Tighten the wing nut. To Connect the hose to the cylinder: 3) Remove the plastic dust cover from the valve. 4) Screw the regulator coupling onto the tank valve, clockwise, or to the right.
- Page 23 This vent should be free of dirt, grease, bugs etc. The LP cylinder and connections supplied with your Weber Gas Barbecue have been designed and tested to meet government, American Gas Association, and Underwriters Laboratories requirements.
-
Page 24: Annual Maintenance
The burners have been flame tested. As a safety precaution however, you should recheck all fittings for leaks before using your Weber Gas Barbecue. Shipping and handling may have loosened or damaged a gas fitting. WARNING: Perform these leak checks even if your barbecue was dealer- or store-assembled. -
Page 25: General Maintenance
General Maintenance Weber Spider Stopper™ Guards Your Weber Gas Barbecue, as well as any outdoor gas appliance, is a target for spiders and other insects. They can nest in the venturi section (Venturi(1), air shutter(2), venturi fin(3) ) of the burner tubes. This blocks the normal gas flow, and can cause the gas to flow back out of the air shutter. -
Page 26: Replacing Main Burners
Replacing Main Burners 1) Your Weber Gas Barbecue must be OFF and cool. 2) Turn gas OFF at source. 3) To remove control panel: take off the burner control knobs. Remove the screws holding the control panel in place. Lift off the control panel. -
Page 27: Crossover Ignition System Operations
9) Reinstall the Spider Stopper Guards. Slightly rotate the Spider Stopper Guards so that the seams are in line with the Venturi fins(1). There should be no gaps in the seams or in the fit around the burners(2) and valves(3). CAUTION: If the Spider Stopper Guards do not fit tightly, contact the Customer Service Represen- tative in your region using the contact information... -
Page 28: Troubleshooting
If problems cannot be corrected by using these methods, please contact the Customer Service Representative in your region using the contact information sheet provided with your manual. Troubleshooting Check Inspect Weber Spider Stopper Guards for possible obstructions. (Blockage of holes.) The excess flow satety device, which is part of the barbecue to cylinder connection, may have activated.
