Summit 400 NG
WARNING: Follow all leak check
procedures carefully in this manual prior to
barbecue operation. Do this even if
barbecue was dealer assembled.
NOTICE TO INSTALLER: These instructions
must be left with the owner and the owner
should keep them for future use.
FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
SUMMIT
Natural Gas Barbecues
400 & 600
TM
Step-By-Step Guide

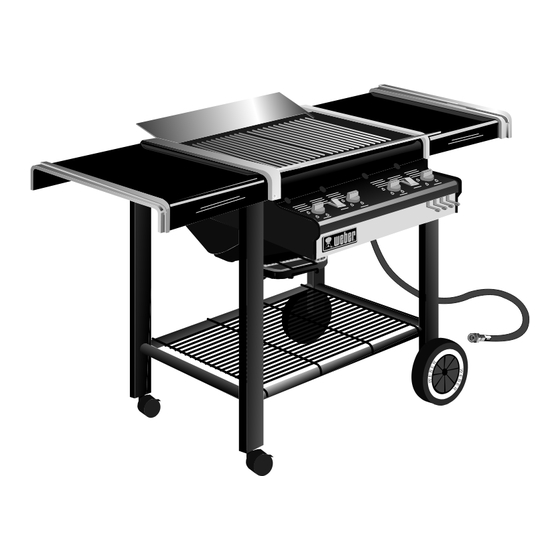

Summit 600 NG
WARNING: Do not try to light this appliance
without reading "Lighting" instructions
section of this manual.
THIS GAS APPLIANCE IS DESIGNED FOR
OUTDOOR USE ONLY.
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, immediately call your
gas supplier or your fire department.
CANADIAN GAS ASSOCIATION
®
A P P R O V E D
R
97463
10/97
