Operating Guide

















WARNING: Follow all leak check
procedures carefully in this manual prior
to barbecue operation. Do this even
though the barbecue is assembled.
NOTICE TO INSTALLER: These
instructions must be left with the owner
and the owner should keep them for
future use.
THIS GAS APPLIANCE IS DESIGNED FOR
OUTDOOR USE ONLY.
WARNING: Do not try to light this
appliance without reading "Lighting"
instructions section of this manual.

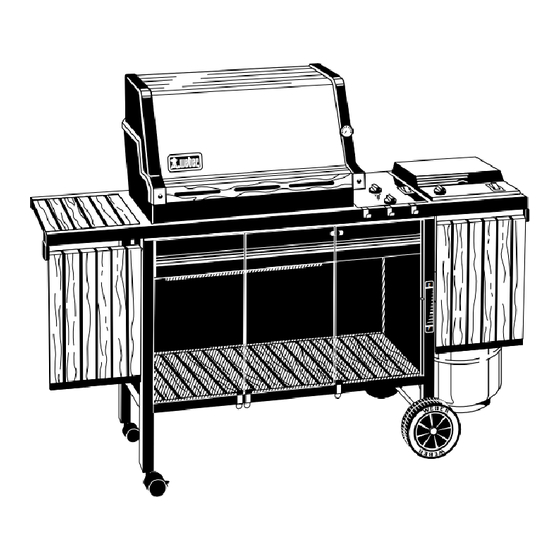

LP Gas Barbecue
®









3400 Series
Serial Number
Please use this number in registering your warranty and
any correspondence with the factory.

E
F
National
FOR YOUR SAFETY
1. Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
2. An LP tank not connected for use shall
not be stored in the vicinity of this or
any other appliance.
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, immediately call
your gas supplier or your fire
department.
®
PROPANEGAS
Association
63602
gama
2/95

Advertisement

Table of Contents
loading

Related Manuals for Weber 3400 Series

Summary of Contents for Weber 3400 Series

  • Page 1 OUTDOOR USE ONLY. WARNING: Do not try to light this appliance without reading "Lighting" instructions section of this manual. 3400 Series LP Gas Barbecue Serial Number Please use this number in registering your warranty and any correspondence with the factory.
  • Page 2 Improper assembly may be dangerous. Please carefully follow the assembly instructions in this manual. After a period of storage, and/or nonuse, the Weber Gas Barbecue should be checked for gas leaks and burner obstructions before using. See instructions in this manual for correct procedures.

  • Page 3: Warranty

    Weber-Stephen Products Co. (Weber) hereby warrants to the ORIGINAL PURCHASER of this Weber Gas Barbecue that it will be free of defects in material and workmanship from the date of purchase as follows: Aluminum Castings, 10 years, Recycled Work Surfaces, 10 years...

  • Page 4: Patents And Trademarks

    Printed in the U.S.A. IMPORTANT NEW FEATURES: Your Weber Gas Barbecue is equipped with a new and improved LP tank connection, that has additional safety features. They are: 1. The connection of the barbecue to the LP tank can be made without the use of tools.

  • Page 5: General Instructions

    Flavorizer Bars produce that "outdoor" flavor in the food. The Weber Gas Barbecue is portable so you can easily change its location in your yard or on your patio. Portability means you can take your Weber Gas Barbecue with you if you move.

  • Page 6: Operating Instructions

    OPERATING INSTRUCTIONS Lighting Note - The following are general lighting instructions for the Weber Gas Barbecue, the illustrations shown may not be of your model. Summary lighting instructions are on the control panel. DANGER Failure to open lid while igniting the...

  • Page 7: Manual Lighting

    Manual Lighting DANGER Failure to open lid while igniting the barbecue, or not waiting 5 minutes to allow the gas to clear if the barbecue does not light, may result in an explosive flame-up which can cause serious bodily injury or death. 1) Open the lid.

  • Page 8: Lighting The Side Burner

    Lighting the side burner For models with a range-style side burner The side burner has a separate ignition system from the main cooking box. DANGER Failure to open lid while igniting the side burner, or not waiting 5 minutes to allow gas to clear if the side burner does not light, may result in an explosive flame-up which can cause serious bodily...
  • Page 9 Using the swing table For models with the swing table /slide bar assembly To raise table: Lift table up and engage slide in locked position. Figure 5. To lower table: Pull support rod up to disengage slide lock, and lower table. Figure 5. WARNING: If swing table end bracket is in any way cracked or damaged, do not use swing table.

  • Page 10: Storage And/Or Nonuse

    If burners go out during cooking, open lid, turn off all burners and wait 5 minutes before relighting. Preheating - Your Weber Gas Barbecue is an energy efficient appliance. It operates at a low B.T.U. rate for economy. To preheat, after lighting, close lid and turn all burners to high (HHH).

  • Page 11: Refilling The Lp Tank

    Refilling the LP tank We suggest that you refill before the fuel scale indicator reaches “E.” Note - If you run out of fuel, check the indicator setting and/or adjust the fuel scale indicator setting with the scale setting wing nut while the tank is empty so you do not run out again.
  • Page 12 The phone number is on the warning decal which is permanently attached to the tank. If the tank manufacturer has not resolved the issue to your satisfaction, then call Weber-Stephen Products Co., Customer Service Center.

  • Page 13: Safe Handling Tips For Lp Gas

    This vent should be free of dirt, grease, bugs etc. Liquid Propane (LP) Tank(s) The LP tank and connections supplied with your Weber Gas Barbecue have been designed and tested to meet government, American Gas Association and Underwriters Laboratories requirements.

  • Page 14: Troubleshooting And Maintenance

    (Resembles paint peeling.) Fuel scale shows that there is gas in the LP tank, but tank is empty. If problems cannot be corrected by using these methods, please contact Weber-Stephen Customer Service. Check Inspect Weber Spider Stopper Guards for possible obstructions.

  • Page 15: Side Burner Troubleshooting

    Figure 11 Check Is gas supply off? Is fuel hose bent or kinked? Inspect the Weber Spider Stopper Guard for possible obstructions. (Blockage of holes.) Does burner light with a match? Igniter wire Igniter Cure Turn supply on.

  • Page 16: Annual Maintenance

    If the hose is found to be damaged in any way, do not use the barbecue. Replace using only Weber authorized replacement manifold assembly. Order from Weber- Stephen Products Co., Customer Service Center or authorized dealer.
  • Page 17 If the hose is found to be damaged in an} way, do not use the barbecue. Replace using only Weber authorized replacement manifold assembly. Order from Weber- Stephen Products Co., Customer Service Center or authorized dealer.

  • Page 18: General Maintenance

    General Maintenance Weber Spider Stopper Guards Your Weber Gas Barbecue, as well as any outdoor gas appliance, is a target for spiders and other insects. They can nest in the venturi section of the burner tubes. This blocks the normal gas flow, and can cause the gas to flow back out of the air shutter.
  • Page 19 d) Unlatch the Spider Stopper Guards and remove. Figure 21. Figure 21 e) Remove the manifold bracket and unscrew the two wing nuts that hold the manifold to the cooking box. Pull the manifold and valve assembly out of the burners and carefully set it down.

  • Page 20: Crossover Ignition System Operations

    (button) down, and returns to the up position. Check to see if the igniter is loose in the frame. Tighten if necessary; see Step “Install igniter” for correct procedure. If the Crossover Ignition System still fails to light, see Section "Manual Lighting", and contact Weber-Stephen Customer Service.
