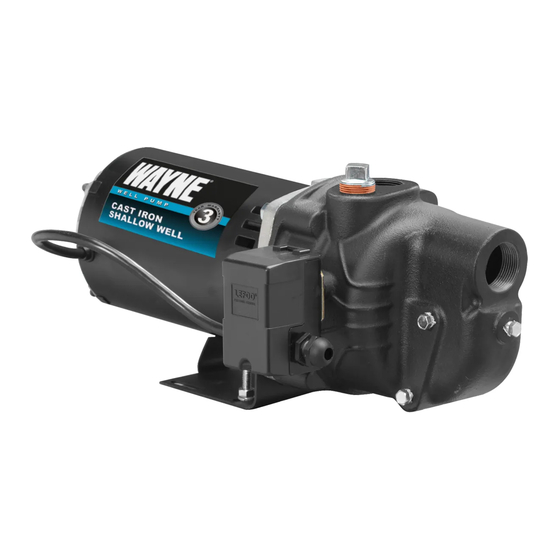

Wayne Jet Pump Water Systems Shallow Well Operating Instructions And Parts Manual

Manual de instrucciones de operación y piezas
Garantía Limitada
Durante tres años a partir de la fecha de compra, Wayne Water Systems ("Wayne") reparará o reemplazará para el
comprador original, según lo que decida, cualquier pieza o piezas de su Juego para estanque, Bombas de resumideros,
Bombas de agua ("Producto") que después de un examen Wayne encuentre que tenían defectos en su material o mano de
obra. Sírvase llamar a la compañía Wayne (800-237-0987, desde EUA) para recibir instrucciones al respecto o comuníquese con
el distribuidor más cercano a su domicilio. Para hacer reclamos bajo esta garantía deberá suministrarnos el número del modelo
y el número de serie del producto. El comprador será responsable de pagar todos los gastos de flete para enviar las piezas o el
Producto para que sean reparados o reemplazados.
Esta Garantía Limitada no cubre los daños que sufra el Producto debido a accidentes, abusos, usos inadecuados, negligencia,
instalación incorrecta, mantenimiento inadecuado o haberse utilizado sin seguir las instrucciones escritas suministradas por la
compañía Wayne.
NO EXISTEN OTRAS GARANTIAS EXPRESAS. LAS GARANTIAS IMPLICITAS INCLUYENDO GARANTIAS EN RELACION AL
MERCADEO O USOS ESPECIFICOS ESTAN LIMITADAS A TRES AÑOS A PARTIR DE LA FECHA DE COMPRA. ESTA ES LA
UNICA GARANTIA DISPONIBLE Y TODAS LAS REPONSABILIDADES CIVILES, DIRECTAS O INDIRECTAS, O GASTOS POR
DAÑOS INDIRECTOS O CONSECUENTES QUEDAN EXCLUIDOS.
Algunos estados no permiten que se establezcan límites en la duración de las garantías implicitas o no permiten que se
excluyan ni se establezcan límites en los daños por incidentes o consecuencias, por lo tanto los límites antes mencionados
podrían ser no válidos. Esta Garantía Limitada le otorga derechos legales especificos, y usted también puede tener otros
derechos que varian de un Estado a otro.
En ningún caso, bien sea por ruptura del contrato de la garantía, responsabilidad civil (incluyendo negligencia) u otra causa,
Wayne o sus distribuidores serán responsables pon daños especiales, consecuentes ni circunstanciales ni penales, incluyendo,
pero no limitados a la pérdida de ganancias, pérdida de uso del producto o equipos asociados, daños a equipos asociados,
costos de capitales, costos para substituir productos, costos para substituir o reemplazar servicios, costos por pérdida de
productividad, o reclamos de clientes del comprador por dichos daños.
DEBE conservar el recibo de compra con esta garantía. En caso de que necesite hacer un reclamo bajo esta garantía, DEBERA
enviarnos una copia del recibo junto con el material o correspondencia. Sírvase comunicarse con la compañía Wayne (800-237-
0987, en EUA) para recibir autorización e instrucciones para enviar el producto.
NO ENVIE ESTA GARANTIA A WAYNE. Use este documento sólo para mantener sus records.
NO. DEL MODELO _____________________ NO. DE SERIE ________________________ FECHA DE INSTALACION __________________
ANEXE SU RECIBO AQUI
Modelos para pozos profundos
32 Sp
Operating Instructions and Parts Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or prop-
erty damage! Retain instructions for future reference.
Jet Pump Water Systems
Description General Safety
Information
Shallow well jet pumps are single stage
domestic water pumps designed for
1. Read the instruction manual included
pumping portable water in applications
with the product carefully. Be
where the water is located less than 25
thoroughly familiar with the controls
feet vertically from the pump. A
and the proper use of the equipment.
pressure switch is a standard feature.
2. Know the pump application,
The shallow well pump can be
limitations and potential hazards.
mounted to either a precharged,
conventional type or free standing
WARNING
!
pressure tank.
to match the system pressure rating and
the maximum flow rate.
Unpacking
WARNING
After unpacking the jet pump, carefully
!
inspect for any damage that may have
explosive fluids such as gasoline, fuel oil,
occurred during transit. Check for
kerosene, etc. Do not use in explosive
atmospheres. Pump should only be used
loose, missing or damaged parts.
with liquids compatible with pump
component materials. Failure to follow
this warning can result in personal injury
Safety Guidelines
and/or property damage.
This manual contains information that
WARNING
!
is very important to know and
pressure from the system before
understand. This information is
attempting to install, service, relocate or
provided for SAFETY and to PREVENT
perform any maintenance. Lock the
EQUIPMENT PROBLEMS. To help
power disconnect in the open position.
recognize this information, observe the Tag the power disconnect to prevent
unexpected application of power.
following symbols.
WARNING
!
Danger indicates
DANGER
!
an imminently
pipe to prevent entrapment of swimmers.
hazardous situation which, if not
3. Drain all liquids from the system
avoided, will result in death or serious
injury. before servicing.
Warning indicates 4. Secure the discharge line before
WARNING
!
a potentially
starting the pump. An unsecured
hazardous situation which, if not
discharge line will whip and possibly
avoided, could result in death or
cause personal injury and/or property
serious injury.
damage.
Caution indicates a
CAUTION
!
5. Check hoses for weak or worn
potentially
hazardous situation which, if not condition before each use. Make
avoided, may result in minor or
certain all connections are secure.
moderate injury.
6. Periodically inspect pump and system
Notice indicates
NOTICE
components. Perform routine
important
maintenance as required (See
information, that if not followed, may
Maintenance).
cause damage to equipment.
7. Personal Safety:
a. Wear safety glasses at all times
when working with pumps.
b. Keep work area clean, uncluttered
and properly lighted - replace all
REMINDER: Keep your dated proof of purchase for warranty purposes! Attach it to this manual or file it for safekeeping.
For parts, product & service information
© 2008 Wayne Water Systems
visit www.waynewatersystems.com
Shallow Well Models
unused tools and equipment.
c. Keep visitors at a safe distance
from work area.
d. Make the workshop childproof use
padlocks, master switches and
remove starter keys.
8. Do not pump chemicals or corrosive
liquids. Pumping these liquids
shortens the life of the pumps seals
Always install a
and moving parts and will void the
pressure relief valve
warranty.
9. When installing pump, cover the
well to prevent foreign matter
Do not use to pump
flammable or
from falling into well and
contaminating the water and
damaging internal mechanical
pumping components.
10. Always test the water from the
well for purity before use. Check
with local health department for
Disconnect power
test procedure.
and release all
11. Complete pump and piping system
MUST be protected against below
freezing temperature. Freezing
temperatures could cause severe
damage and void the warranty.
Install a screen
12. Do not run the pump dry or
around the inlet
damage will occur and will void
warranty.
Risk of electrical
WARNING
!
shock. This pump is
designed for indoor installation only.
All wiring should be
WARNING
!
performed by a
licensed or certified electrician.
13. For maximum safety, the unit
should be connected to a grounded
circuit equipped with a ground
fault interrupter device.
14. Before installing the pump, have
the electrical outlet checked by a
licensed or certified electrician to
make sure the outlet is properly
grounded.
15. Make sure the line voltage and
frequency of electrical current
supply agrees with the motor
wiring.
340106-001 7/08
