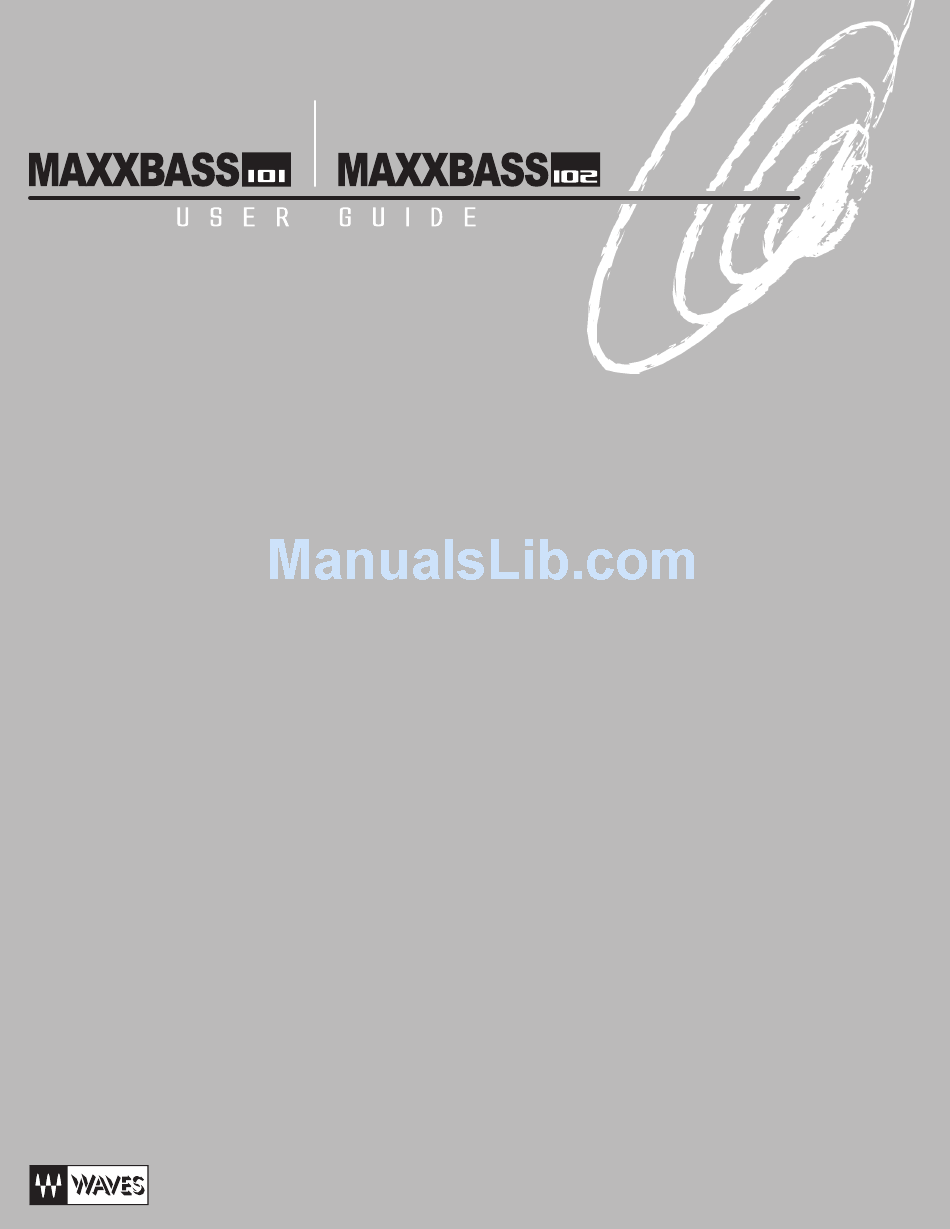

Waves MaxxBass 102 User Manual

Processor unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MaxxBass 102 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Waves MaxxBass 102

Summary of Contents for Waves MaxxBass 102

  • Page 3: Table Of Contents

    Small Speaker Systems ... 9 Clubs, DJ, Band Systems ... 9 Sound Reinforcement - Subwoofer Arrays ... 10 Specifications...11 Technical Specifications ... 11 Architectural Specifications ... 11 Architectural Specifications for MaxxBass 101 ... 11 Architectural Specifications for MaxxBass 102 ... 12 MaxxBass User Guide...
  • Page 4 MaxxBass User Guide...

  • Page 5: Introduction

    In the case of a valid warranty claim, your sole and exclusive remedy and Waves’s entire liability under any theory of liability will be, at Waves’ sole discretion, to repair or replace the Product without charge or to refund the pur- chase price to you.

  • Page 6: Warranty Service

    Warranty Service For warranty service, please call one of Waves’ offices listed below so as to obtain a Return Authorization (RA) number. The Product, with RA number written outside the shipping box in bold letters, must be sent, transportation and insurance charges prepaid, to a Waves location (U.S.

  • Page 7: Maxxbass Overview

    16V AC power supply. Both the MaxxBass 101 and MaxxBass 102 have only a few simple controls and indicators on their front panel. Set the input level and Frequency controls to fit your specific speaker system and then gradually turn up the Intensity control to achieve the desired balance of generated low frequencies.

  • Page 8: Front Panel Features

    These are for Input Trim, MaxxBass Frequency and MaxxBass Intensity as shown in Figure 2 and 3. Rear panel Features MaxxBass User Guide Figure 2. MaxxBass 101 Front Panel Figure 3. MaxxBass 102 Front Panel Figure 4. MaxxBass 101 Rear Panel Figure 5. MaxxBass 102 Rear Panel...

  • Page 9: External Power Supply

    XLR and TRS connections (+4dBu sensitivity), as shown in Figure 4. The MaxxBass 102 supports unbalanced RCA connector at -10dBu sensitivity as shown in Figure 5. Both MaxxBass 101 and MaxxBass 102 support an RS232 serial connector on their rear panel for future updates. External Power Supply Both MaxxBass systems are provided with an external 16V AC power supply.
  • Page 10 MaxxBass User Guide...

  • Page 11: Setting Maxxbass Controls

    Frequency Knob MaxxBass Frequency knob should be tuned to the specific speaker system at hand. Both MaxxBass 101 and MaxxBass 102 sup- port Frequency settings in the range of 25 to 100 Hz. As a thumb rule it is recommended to set MaxxBass Frequency to about 70-90% of the speaker cutoff.

  • Page 12: Step 3: Verifying The Settings And Locking

    When the MaxxBass is locked, the Frequency and Intensity knobs are disabled to eliminate accidental changes to the setup. MaxxBass 101 provides the Lock control on its front panel, MaxxBass 102 on its rear panel. NOTE: The Lock button does not disable the Input trim control.

  • Page 13: Application Examples

    Application Examples Small Speaker Systems MaxxBass significantly enhances audio systems with small speakers such as PA in restaurants and retail as shown in Figure 7. These systems, equipped with small or ceiling mount speakers, will be dramatically enhanced by allowing listeners to enjoy the deep bass tones in music without adding a subwoofer.

  • Page 14: Sound Reinforcement - Subwoofer Arrays

    Sound Reinforcement - Subwoofer Arrays Large scale subwoofer arrays with full range bass also benefit from MaxxBass to increase the bass and richness. This can allow a reduction in the number of amplifiers and subwoofers to reach the desired bass level. As shown in Figure 9, connect MaxxBass between the crossover and the subwoofer amplifier on the subwoofer path.

  • Page 15: Specifications

    XLR, and TRS connectors, balanced or unbalanced (out 2 hot), at +4dBu sensitivity. The unit shall be capable of operation by means of an external 16v AC power supply. The unit shall occupy one rack space. The bass enhancement unit shall be a Waves Model MaxxBass 101. MaxxBass 101 10kΩ...

  • Page 16: Architectural Specifications For Maxxbass 102

    RCA connector at -10dBu sensitivity. Each output shall feature a RCA connector at -10dBu sensitivity. The unit shall be capable of operation by means of an external 16v AC power supply. The unit shall occupy one half rack space. The bass enhancement unit shall be a Waves Model MaxxBass 102. MaxxBass User Guide...
  • Page 18 MaxxBass User Guide...

This manual is also suitable for:

Maxxbass 101
