Summary of Contents for Precisionary CRYOSTAT CF-6100

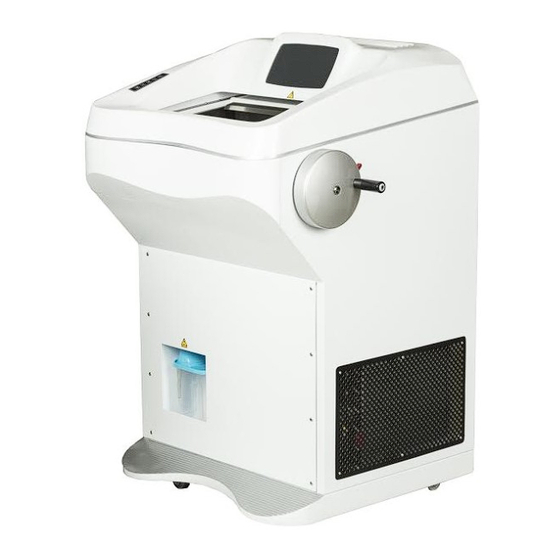

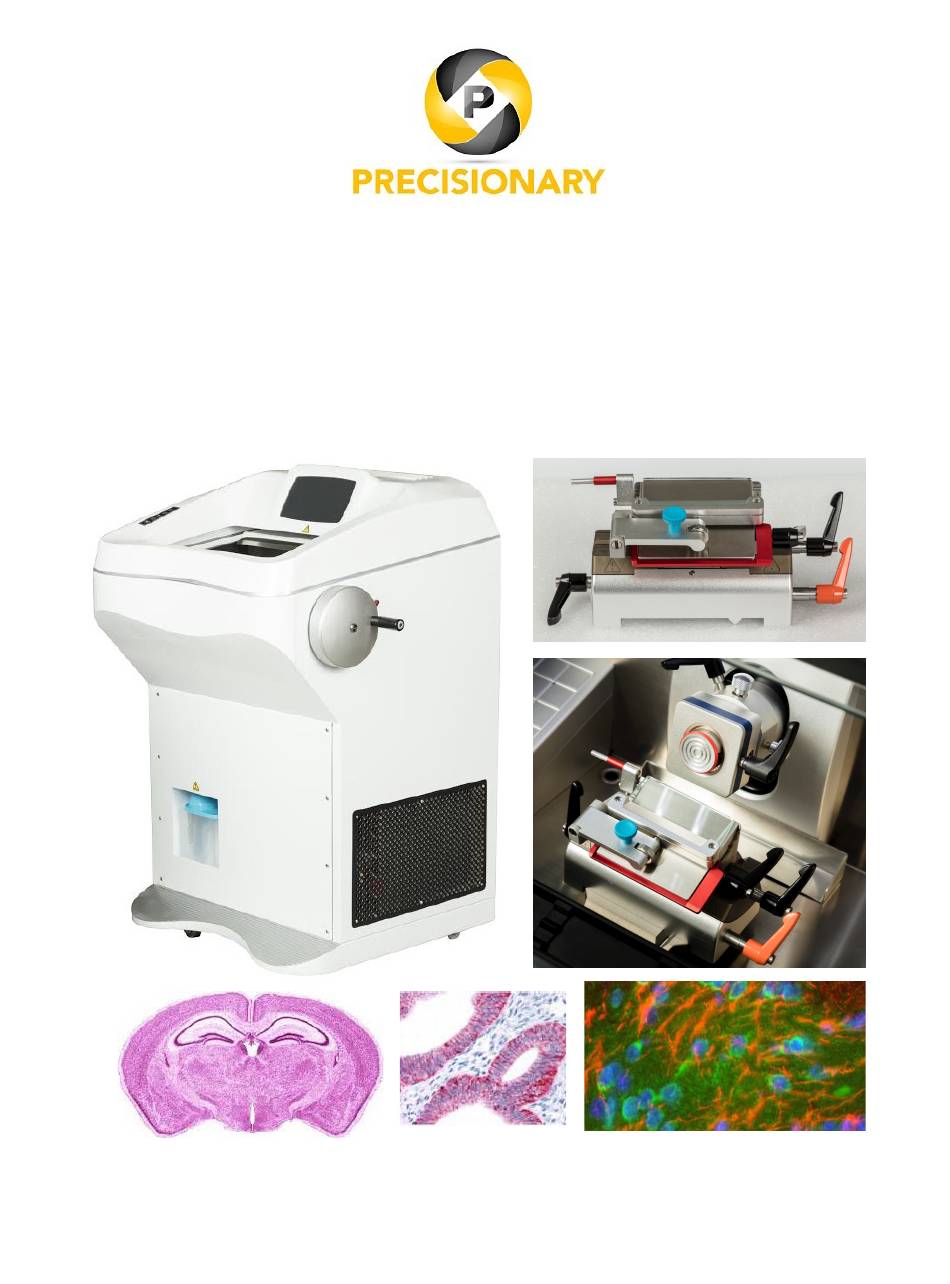

- Page 1 PRECISIONARY INSTRUMENTS CRYOSTAT CF-6100 User Manual: Quick Start Guide...
- Page 2 Table of Contents Working with the Cryostat CF-6100 ..................3 Main Control Panel ........................ 4 Time Setting Control Panel ....................7 Small Operation Panel ......................9 www.precisionary.com 617-682-0586 info@precisionary.com...
-
Page 3: Working With The Cryostat Cf-6100
Working with the Cryostat CF-6100 1. Begin by plugging in the cryostat power cord (with any appropriate adaptors and surge protectors) into the wall. 2. Turn the cryostat ON by flipping the blue circuit breaker on the back of the cryostat. The circuit breaker functions as the power switch. -
Page 4: Main Control Panel
Main Control Panel The Precisionary Cryostat CF-6100 is unique in that it has a state-of-the-art touchscreen control panel for all functionalities. To help explain the functions of each panel in the Main Control Panel, here are the specific buttons and selections:... - Page 5 This button is the on / off key of semiconductor cooling. When the button is pressed, the indicator light is on, the machine starts the semiconductor cooling part on the cold stage, cools the module platform, and starts the semiconductor cooling for 15 minutes. As time increases, www.precisionary.com 617-682-0586 info@precisionary.com...
- Page 6 This is the decrease button. Press to decrease the thickness section (or trim) thickness. The left side of this panel displays the cumulative slice thickness and slice count. Press this area to reset both values to zero. Cumulative thickness & slice count www.precisionary.com 617-682-0586 info@precisionary.com...
-
Page 7: Time Setting Control Panel
Time Setting Control Panel In addition to the Main Control Panel, the touchscreen on the Precisionary Cryostat CF-6100 also has a Time Setting Control Panel to allow users to set the clock, sleep (standby) durations, and defrost durations. Specific times and days can be set for clock, automatic sleep mode, and automatic defrost mode. - Page 8 To set the automatic defrost mode, choose times and days Defrost mode start time Defrost mode end time Press Save To return to the Main Control Panel, press the “BACK” button in the lower right of the Time Setting Control Panel. www.precisionary.com 617-682-0586 info@precisionary.com...
-
Page 9: Small Operation Panel
Specimen holder retract (fast) Pressing the specimen holder retract (fast) button will cause the specimen holder to retract to its initial position. Press the forward (fast) button to stop the specimen holder in motion. Specimen holder forward (fast) www.precisionary.com 617-682-0586 info@precisionary.com... - Page 10 617-682-0586 info@precisionary.com...
