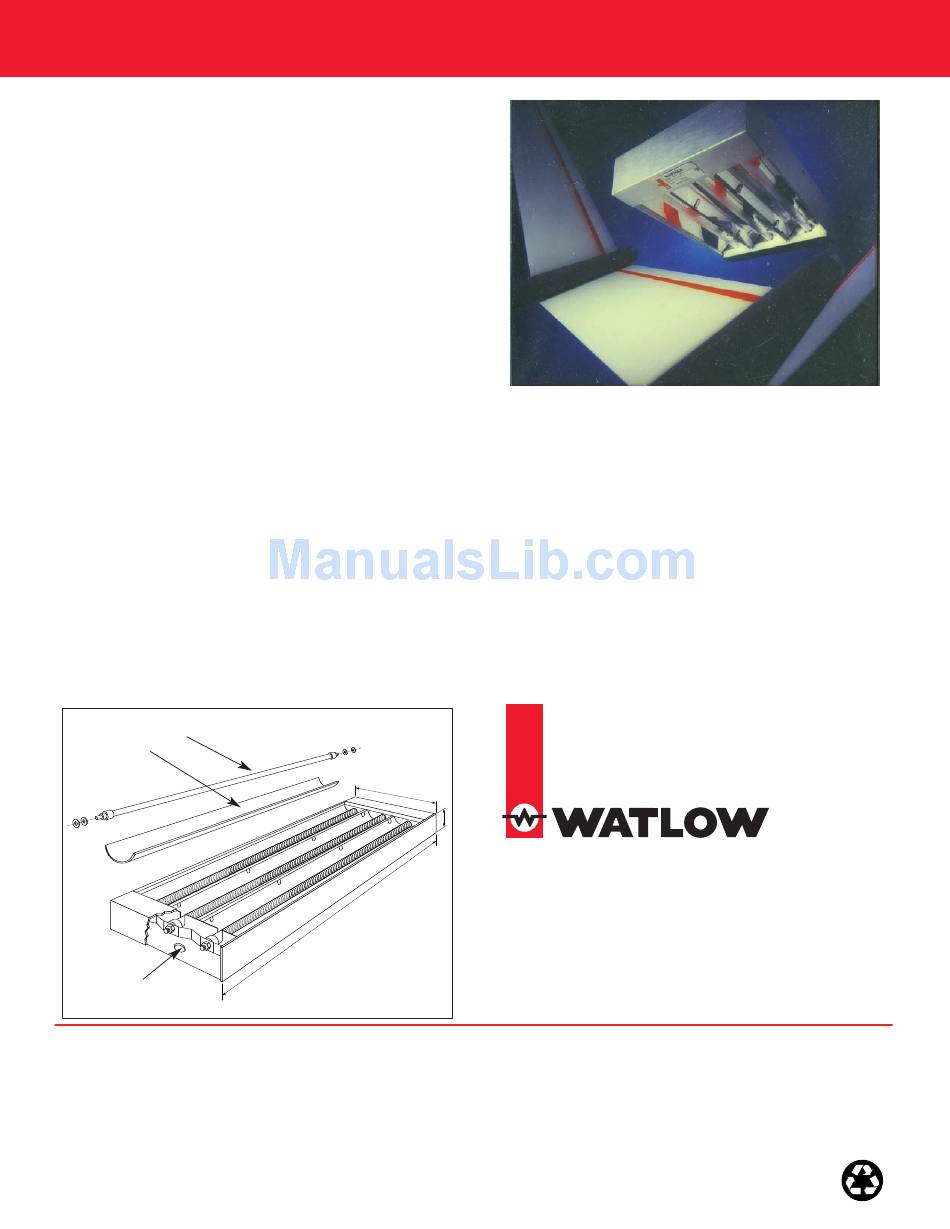

Fast Responding
Quartz Tube Panel
Watlow's RAYMAX
®
1626 quartz tube panel is a fast
responding and very efficient source of radiant thermal
energy. With heat-up and cool down capabilities of 40 to 50
seconds, the quartz heater is ideal for use in operations
where frequent line stoppages are anticipated or immediate
heat-up and cool-down is necessary. Custom sizes are
available up to 27 inches wide in three inch increments and
70 inches long.
Applications
•
Heating plastic films
•
Ink drying
•
Coating curing
•
Fusing powder coating
•
Activating adhesives
Field Replaceable:
Quartz Tube and
Reflector
Conduit
Hole
One
1
⁄
in. (13 mm) Tube Per Reflector
2
To be automatically connected to the nearest North American Technical and Sales Office call:
International Technical and Sales Offices:
Italy, +39 (02) 458-8841 • Japan, +81 (03) 3518-6630 • Korea, +82 (02) 575-9804 • Malaysia, +60 (4) 641-5977 • Mexico, +52 (442) 217-6235 •
Singapore, +65 6773-9488 • Spain, +34 91 675 12 92 • Sweden, +46 31 7014959 • Taiwan, +886 (0) 7-288-5168 •
United Kingdom, +44 (0) 115-964-0777
© 2005 Watlow Electric Manufacturing Company
RAYMAX
Max. Width 27 in. (686 mm) (9 Reflectors)
Max. Length 70 in. (1778 mm)
Width = No. of
Reflectors x 3 in.
Thickness
= 2
1
⁄
in. (35 mm)
2
Overall Length =
Heated Length + 4
⁄
in. (108 mm)
1
4
1-800-WATLOW2
China, +86 (21) 5211-0231 • France, +33 (01) 3073-2425 • Germany, +49 (0) 7253-9400-0 •
1626
®
Features and Benefits
Quartz tubes and reflectors are easy to replace
•
Less downtime waiting for parts
Polished parabolic aluminum reflectors
•
Direct radiant energy from the back for efficient heating
Little residual heat
•
Reduces possibility of product damage during line stoppage
Fast heat-up, cool down allows heater turn off during gaps
in production
•
Energy savings
12001 Lackland Road
St. Louis, Missouri 63146 USA
Phone: +1 (314) 878-4600
FAX: +1 (314) 878-6814
Internet: www.watlow.com
e-mail: info@watlow.com
Printed in the USA on Recycled Paper, 15% Postconsumer Waste
STL-1626-0805
