Watlow RAYMAX 1330 Specifications

RAYMAX 1330—
®
Features Specially
Insulated Heater
Emitter Strips for
Higher Performance
The RAYMAX ® 1330 is the only radiant heater that features
specially insulated heater emitter strips for higher performance.
Watlow developed a unique compacted mineral insulation to
electrically insulate the element wire, with a result of superior heat
transfer and higher operating capabilities.
Because of its rugged stainless steel construction, the RAYMAX
1330 will last longer. And this relatively new heater features a high
emissivity black coating and a uniform, full surface heat source for
better efficiency.
Applications
• Thermoforming plastics and composites
• Circuit board soldering
• Heat shrinking of plastic
• Terminal box
• Thermowell
• Mounting studs
• Thermocouple welded to hot face

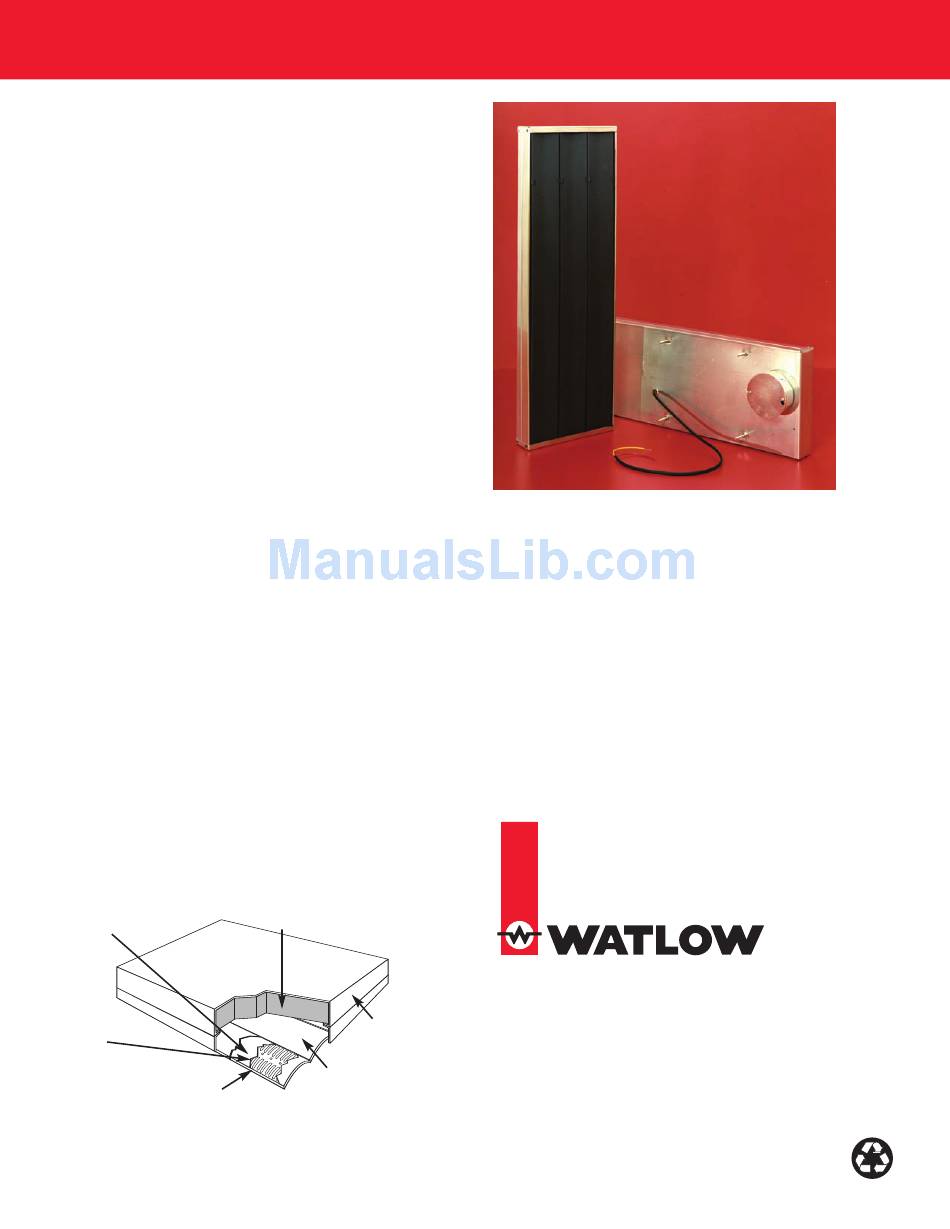

High Performance
Mineral Insulation
Sinuated
Element
Wire
High Emissivity
Coating
© 2005 Watlow Electric Manufacturing Company
RAYMAX
Aluminized Steel Insulation
Cap with 1 in. (25 mm) Thick
Insulation Blanket
Stainless
Steel Case
3 in. (76 mm) Wide
Replaceable Stainless
Steel Emitter
1330
®

Features and Benefits

Field replaceable emitter strips
• Allow you to avoid the cost of buying a whole new
radiant heater
Rugged metal construction
• Protects the heater from contaminants
No reflectors
• No cleaning or replacing
No fragile glass or ceramic elements
• No worries involved
One-inch thick backside insulation
• Provides better heating efficiency
12001 Lackland Road
St. Louis, Missouri 63146 USA
Phone: +1 (314) 878-4600
FAX: +1 (314) 878-6814
Internet: www.watlow.com
e-mail: info@watlow.com
Printed in the USA on Recycled Paper, 15% Postconsumer Waste
STL-1330-0805
