Watlow RAYMAX 1220 Specifications

RAYMAX
Raymax 1220 and
®
2030—Ideal For Many
Process Heating
Applications Requiring
"Hot Face" Temperatures
Easy to install and capable of high surface temperatures, the
RAYMAX ® 1220 and 2030 are ideal for many process heating
applications requiring "hot face" temperatures above 540
(1000 O F).
Each unit consists of a ceramic fiber heater mounted in a 2.5 inch
(64 mm) deep sheet metal case that provides thermal insulation.
The case includes post terminals for electrical connections and
provides a mounting system that can be used with virtually any
flat ceramic fiber unit, whether it is a stock, standard or a custom
size. Since any of the flat unit heating element configurations can
be used—exposed sinuated, embedded coil or foil elements—
watt density and temperature capabilities can be tailored to meet
specific radiant applications.
Applications
• Conveyor furnaces
• High temperature vessel heating
• Tempering and annealing processes for glass, wire, ceramics
and metals
• Coating, curing and drying of inks, paints, plastics and films

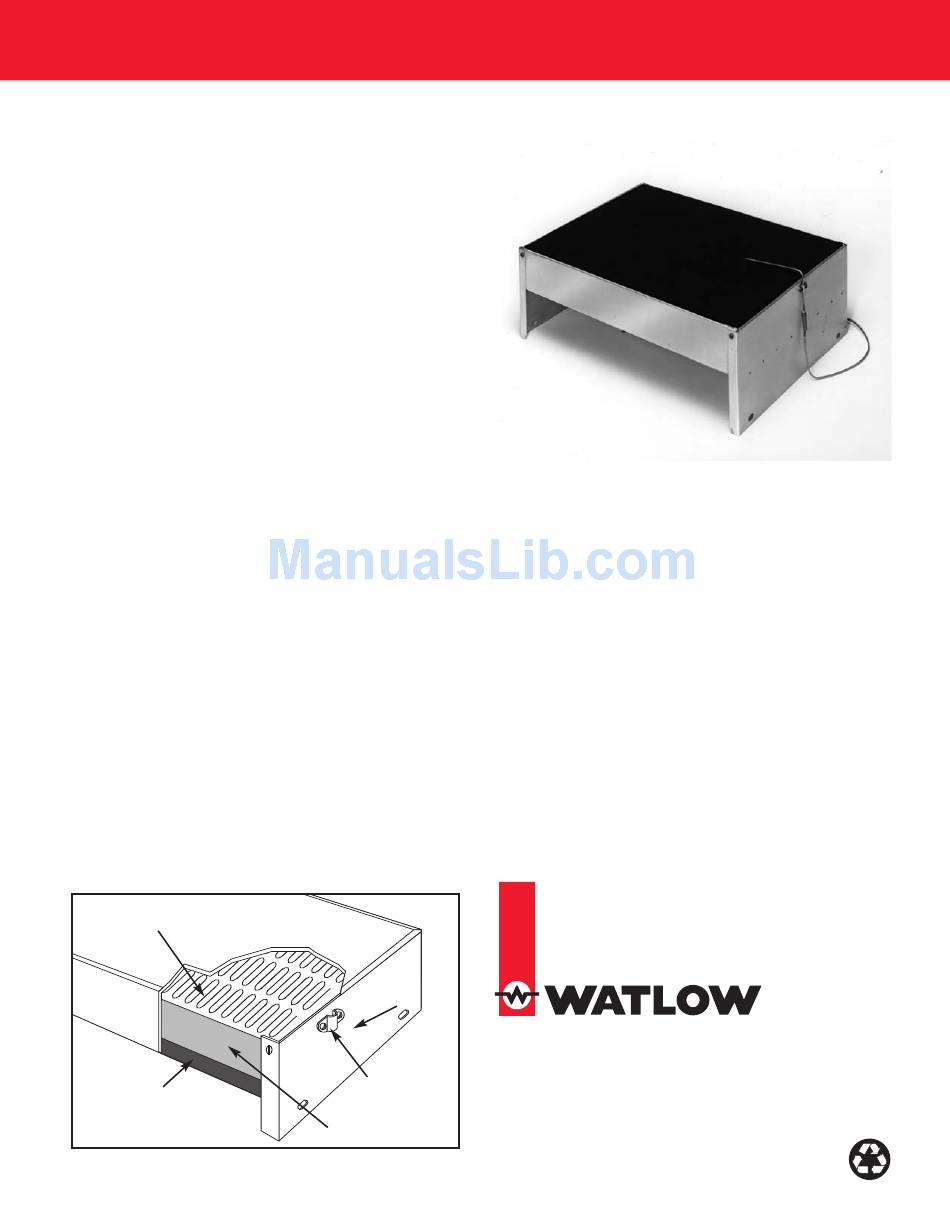

Heating Element
(Sinuated Wire Shown)
1/2 in. (13 mm)
Ceramic Fiber
Insulation
© 2005 Watlow Electric Manufacturing Company
1220 AND 2030
®

Features and Benefits

Lightweight, low mass design
C
O
• Allows fast response to controls
High efficiency
• Results from high degree of self insulation with 2.5 inch
(64 mm) thick mounting case
Adaptable
• With any stock or standard sized flat ceramic fiber unit
Thermocouple mounting clamp
• Makes process system control easier
Aluminized steel case
• Handles temperatures up to 595
Special hot face heating patterns
• Designed specifically for applications using an etched foil
RAYMAX 1220
Mounting
Legs
Thermocouple
Mounting
Clamp
2 in. (50 mm)
Thick Ceramic
Fiber Heater
Printed in the USA on Recycled Paper, 15% Postconsumer Waste
O C (1100
12001 Lackland Road
St. Louis, Missouri 63146 USA
Phone: +1 (314) 878-4600
FAX: +1 (314) 878-6814
Internet: www.watlow.com
e-mail: info@watlow.com
O F)
STL-1220/2030-0805
