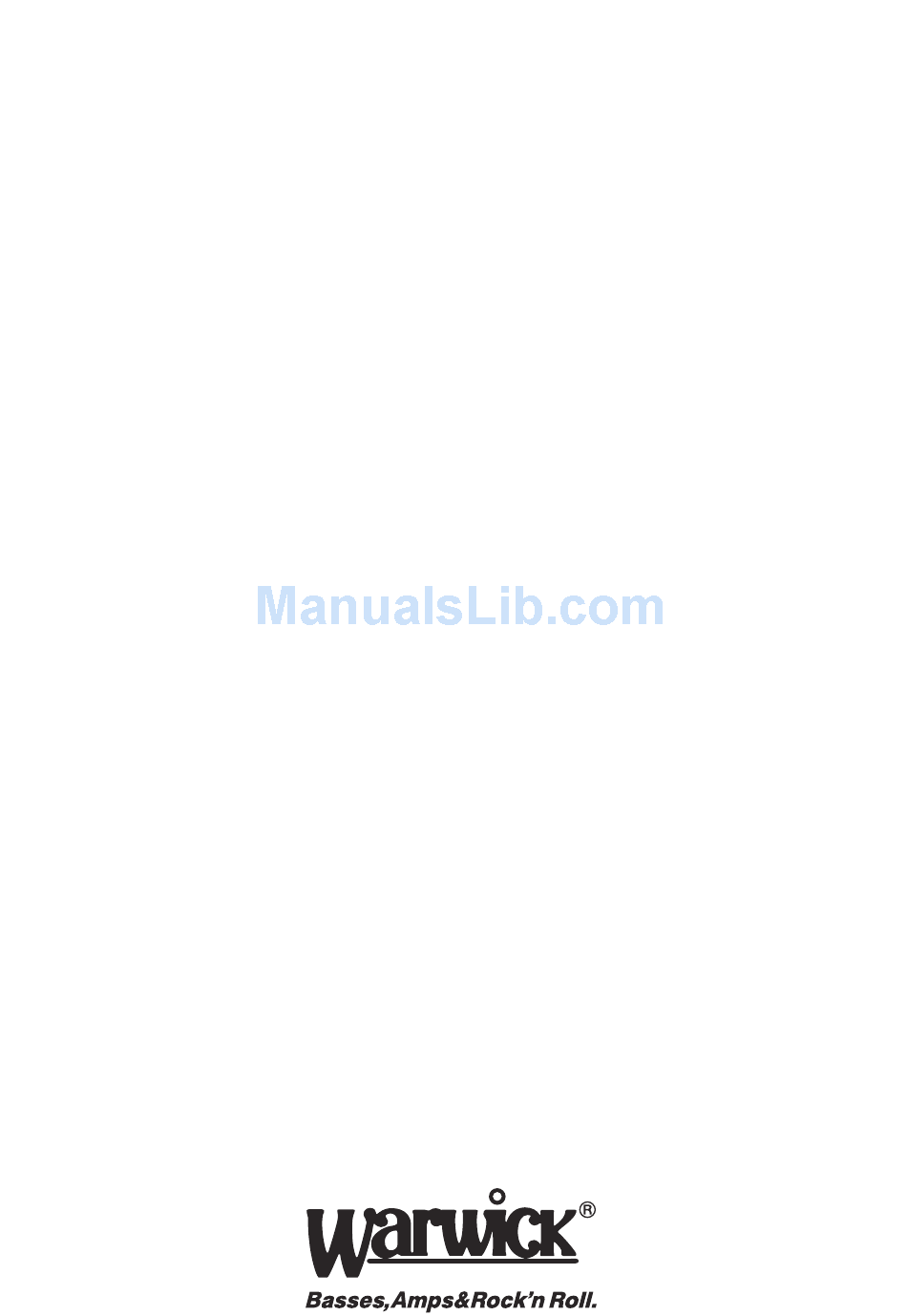

- Page 1 OFFICIAL WARWICK AMP OWNER MANUAL ENGLISH...
- Page 2 - At power-up, the valves (tubes) need at least 30 seconds to warm up before achieving operation this new Warwick amplifier. Please keep this instruction booklet handy in case you need to consult it again.
-
Page 3: Front Panel Controls
FRONT PANEL CONTROLS 1. INPUT socket to plug in a bass guitar. 2. GAIN control + 3 LEDs to adjust the input level: CLIP too high, optimum, LOW too low. 3. CH. SELECT + 2-colored LED to switch from channel 1 (red) to channel 2 (green). 4. - Page 4 DI OUT LEFT and DI OUT RIGHT sockets for supplying a stage or studio mixing console. TUNER OUT socket for the connection of a tuner. When MUTE mode is activated, the unmodified bass signal is retained here. MONO LOOP for the serial insertion of dynamic effects units (e.g.
- Page 5 This channel is equipped with two tubes. One preamp tube is always included within the signal flow. 2ND STAGE switch adds one output stage tube into the circuit. This feature offers the choice between a so called hybrid amplifier (tube preamp with transistor power amp) and the sound of an all tube amplifier head.
- Page 6 Clean Funk Hard Funk 2ND STAGE 2ND STAGE CONTOUR CONTOUR TONE S. PICTURE TONE S. PICTURE CRUNCH S. PICT. CRUNCH S. PICT. FLAT BOOST HIGH FLAT HIGH HIGH CRUNCH TONE HIGH 2ND STAGE CONTOUR C H A N N E L 1 - T U B E Hollow Reggae Clear compress 2ND STAGE...
-
Page 7: Getting Started
CHANNEL 2 - SOLID STATE Two switches LOW BOOST and HIGH BOOST to pre-adjust the basic sound characteristics. Ten faders 35/70/140/210/420/730/1.2k/2.5k/5k/10k Hz to amplify/soften the respective frequency band by +/-12 dB. You should generally adjust the graphic EQ to approximately 0 dB. This means boosts and cuts should be effected with moderation. - Page 8 NOTES...
-
Page 9: Specifications
Sonic II / III Pro Fet III 25 mV 25 mV transistor, active transistor, active controlled controlled none none fan cooled (non fan cooled (non permanent) permanent) bass, mid low, mid bass, punch, high, treble param. mids with controls, low boost freq. -
Page 10: Circuit Diagram
CIRCUIT DIAGRAM... - Page 11 Headquarters: Warwick GmbH&Co.Music Equipment KG•Gewerbegebiet Wohlhausen•08258 Markneukirchen/Germany•Tel 0049-(0)37422-555-0 Fax 0049-(0)37422-555-99 • Send us an E-Mail to: info@warwick.de • Visit us on the World Wide Web: http://www.warwick.de Branch China: Warwick Music Equipment (Shanghai) Ltd., Co.Shanghai Waigaoqiao Free Trade Zone • Shanghai 200131 / P.R.China...
