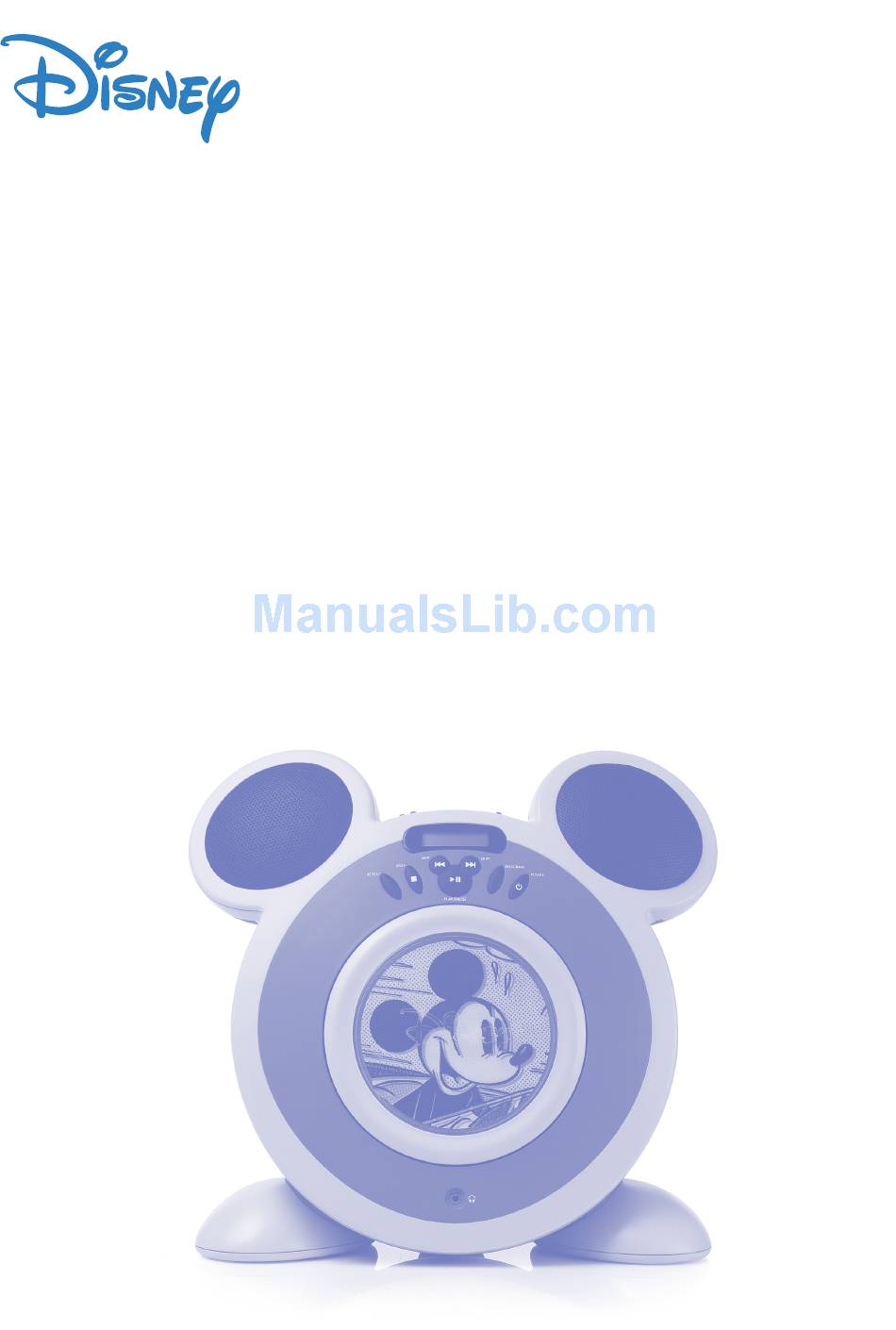

- Page 1 User’s Guide CD Boombox Manual del Usuario Caja de Resonancia para CD Guide d'utilisation Radio à lecteur CD DB3050-C...
-
Page 2: Quick Reference
QUICK REFERENCE The Quick Reference guide is given to provide basic operation of the unit. Please completely read the user’s guide to take advantage of all the features this unit has to offer. Adjusts the volume level Selects AM or FM band or CD mode Advance track/Search CD Raise for best FM reception Rotate to tune an AM or FM station... -
Page 3: To Listen To The Radio
QUICK REFERENCE (CONTINUED) TO LISTEN TO THE RADIO: 1. Press the Power button to turn the unit on. 2. Slide the FUNCTION switch to select AM or FM. 3. Tune a desired station by rotating the TUNING control. 4. Adjust the VOLUME control as desired. 5. -
Page 4: Dangerous Voltage
Dear Customer, Please read this manual thoroughly before operating the unit to become more famil- iar with it and obtain the performance that will bring you continued enjoyment for many years. Keep these instructions handy for future reference. For future reference, record the serial number of the unit printed on the rear of the cabinet. -
Page 5: Surge Protectors
INFORMATION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 6 Dear Customer: Selecting fine audio equipment such as the unit you’ve just purchased is only the start of your musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equip- ment by playing it at a safe level.
-
Page 7: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Before using the unit, be sure to read all operating instructions carefully. Please note that these are general precautions and may not pertain to your unit. For example, this unit may not have the capabili- ty to be connected to an outdoor antenna. READ INSTRUCTIONS All the safety and operating instructions should be read before the product is operated. - Page 8 IMPORTANT SAFETY INSTRUCTIONS 15. OVERLOADING Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock. 16. OBJECT AND LIQUID ENTRY Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short out parts that could result in fire or electric shock.
-
Page 9: Location Of Controls
LOCATION OF CONTROLS FM Antenna Left Speaker FUNCTION(AM/FM/CD) Switch TUNING Control Display Skip/Search o Button STOP (I) Button REPEAT Button CD Door Open/Close Area 10. AC Power Jack (Rear of Unit) 11. CD Compartment and Faceplate 12. PHONES (Headphones) Jack 13. -
Page 10: Power Sources
This unit is designed to operate on AC household current or DC (batteries). Use the AC polarized line cord included with the unit for operation on AC power. Insert one end of the AC line cord into the AC power jack on the rear of the unit and the other end (with the 2 blades) into a conve- niently located AC outlet having 120V, 60Hz. - Page 11 CHANGING THE DISNEY FACEPLATE Press the Open/Close Area to open the CD Compartment. Gently pull the lid off. Press in on the two tabs inside the CD door. Remove the faceplate which located at the top of the CD door.
- Page 12 CHANGING THE DISNEY FACEPLATE (CONTINUED) Position at Edge Insert another Disney faceplate or insert your own photograph. Make sure the faceplate or photograph are located inside the positioning edge. Faceplate Tabs Then position the two tabs at the left and right sides of the lid into the left and right CD compartment holes.
-
Page 13: Listening To The Radio
LISTENING TO THE RADIO Press the POWER button to turn the unit on. Rotate the TUNING control to select a station. When an FM stereo station is tuned in, the FM stereo indicator will appear in the display. If the station is not broadcast in stereo or the reception is not strong enough, the FM stereo indi- cator will not appear in the display. -
Page 14: Continued On The Next Page
OPERATION (CONTINUED) TO PLAY A CD Press the POWER button 1 to turn the unit on. Slide the FUNCTION switch 2 to the CD position to select CD. Press the PLAY/PAUSE (®p) button 1 to start playback on the first track; will appear in the display. - Page 15 OPERATION (CONTINUED) TO PLAY A CD (CONTINUED) When the disc is through playing, it will stop rotating. Press the STOP (I) but- ton to stop the disc before it is finished. NOTES: • If a disc is inserted incorrectly, dirty or damaged, it will not play, "00" will appear in the display.
- Page 16 OPERATION (CONTINUED) TO PROGRAM THE MEMORY (UP TO 30 TRACKS) With the power on and the unit in the Stop mode, press the PROG button; “PRG” and “01” will blink in the display. Press the PROG button again; the selected track has now been pro- grammed and counted as program 1.
- Page 17 OPERATION (CONTINUED) NOTES ON PROGRAMMED PLAY: • Programming is the ability to preselect the order in which a series of tracks will be played. • Each track may be stored in the program memory as many times as desired. • As each track is played, its track number will be displayed.
-
Page 18: Care And Maintenance
CARE AND MAINTENANCE Caring for Compact Discs • Treat the compact disc carefully. Handle the com- pact disc only by its edges. Never allow your fingers to come in contact with the shiny, unprint- ed side of the compact disc. •... -
Page 19: Troubleshooting Guide
TROUBLESHOOTING GUIDE If you experience a problem with this unit, check the chart below before calling for service. SYMPTOM Unit will not turn on. Disc will not play. No sound. Erratic playback. AM or FM, no sound. Power is not on. AM/FM, poor sound. -
Page 20: Specifications
SPECIFICATIONS GENERAL: Power Source...120V, 60Hz AC Batteries...9V DC (6 x 1.5 ‘C’ size batteries) Alkaline is recommended for longer life Speaker ...2 x 3W Audio Power Output ...2 x 1.5W RADIO SECTION: Frequency Range (FM) ...88–108MHz Frequency Range (AM) ...530–1710KHz CD SECTION: Disc Diameter ...4.72”... - Page 21 For additional set-up or operating assistance, please visit our website at www.disneyelectronics.com or contact customer service at (954) 660-7026. Please keep all packaging material for at least 90 days in case you need to return this product to your place of purchase or Memcorp. For parts and accessories, contact Fox International at 1-800-321-6993.
