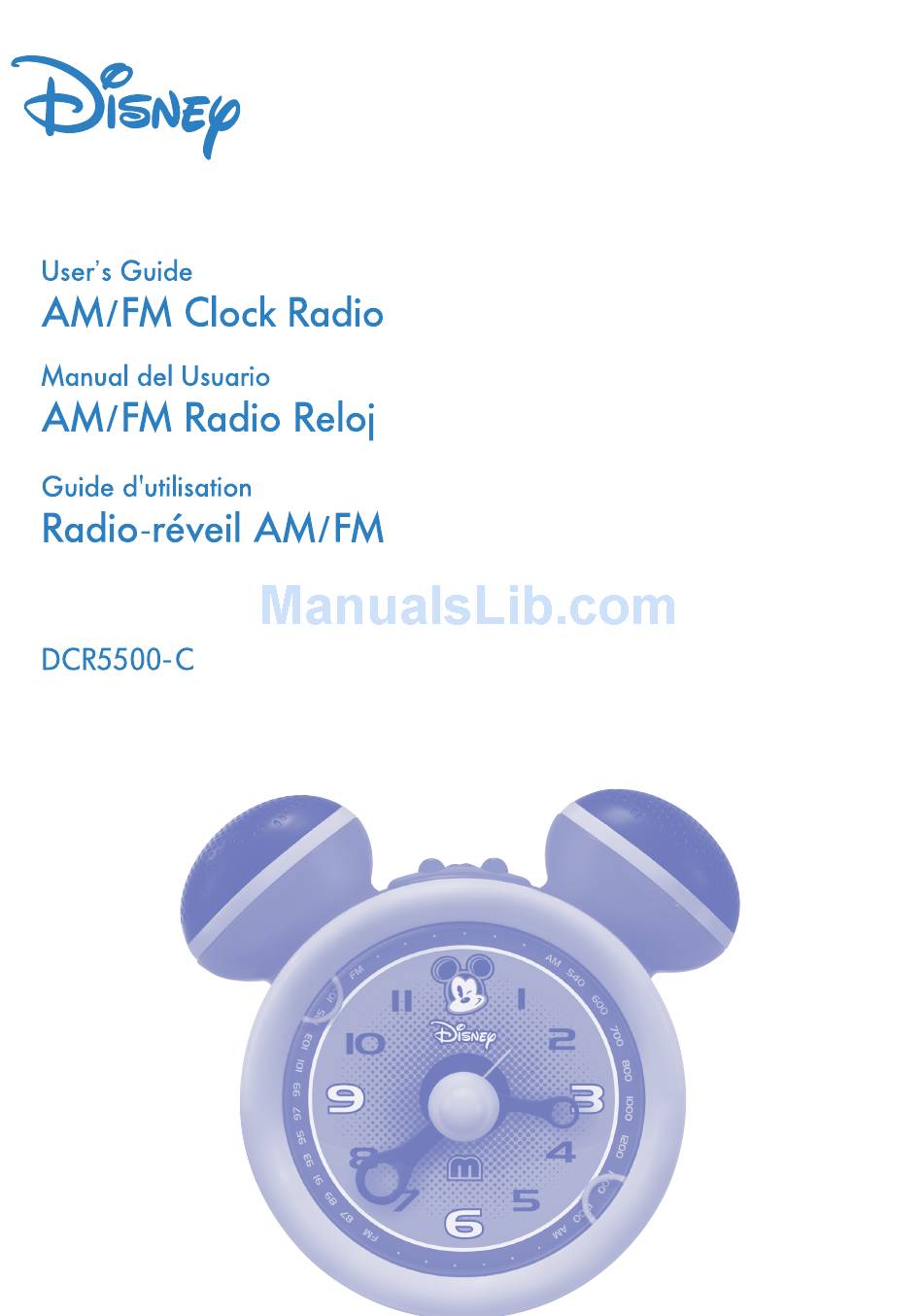

Disney DCR5500-C User Manual

Disney DCR5500-C User Manual

/am/fm clock radio
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DCR5500-C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Disney DCR5500-C

Summary of Contents for Disney DCR5500-C

  • Page 2: Quick Reference

    The Quick Reference is given to provide basic operation of the unit. Please completely read the user’s guide to take advantage of all the features this unit has to offer. Disney Elements © Disney QUICK REFERENCE Slide to select the alarm (AUTO: Radio or BUZZ: Buzzer) or to turn the unit ON or OFF Press to temporarily turn off the alarm...
  • Page 3 QUICK REFERENCE (CONTINUED) TO LISTEN TO THE RADIO: 1. Slide the AUTO/BUZZ/ON/OFF switch to the ON position to turn the unit on. 2. Slide the Band switch to the desired band, AM or FM. 3. Tune a station by rotating the TUNING ring. 4.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS DANGEROUS VOLTAGE: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. ATTENTION: The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and...

  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Before using the unit, be sure to read all operating instructions carefully. Please note that these are general precautions and may not pertain to your unit. For example, this unit may not have the capability to be connected to an outdoor antenna.
  • Page 6 IMPORTANT SAFETY INSTRUCTIONS point where they exit from the appliance. 13. LIGHTNING To protect your product from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system.

  • Page 7: Location Of Controls

    LOCATION OF CONTROLS FRONT REAR 1. Left Speaker 2. Right Speaker 3. AUTO/BUZZ/ ON/OFF Switch 4. SNOOZE Button 5. Band (FM/AM) Switch 6. Minute Hand 7. Hour Hand 8. Second Hand 9. Alarm Hand 10. AM Dial Scale Pointer and Backlight 11.

  • Page 8: Power Sources

    CLOCK OPERATION To operate the clock, one (1) AA battery must be installed as follows: 1. Remove compartment door on the bottom of the unit by inserting a small screwdriver, paper clip or similar item into the tab while gently pushing, then lifting it out. 2.
  • Page 9 POWER SOURCES (CONTINUED) Follow these precautions when using batteries in this device: 1. Use only the size and type of batteries specified. 2. Be sure to follow the correct polarity when installing the batteries as indicated next to the battery compartment. Reversed batteries may cause damage to the device. 3.

  • Page 10: To Listen To The Radio

    TO LISTEN TO THE RADIO Slide the AUTO/BUZZ/ON/OFF switch 1 to the ON position to turn the unit on. Slide the Band switch 2 to the desired band, AM or FM. Adjust the volume using the Volume control ‚. Slide the AUTO/BUZZ/ ON/OFF switch 2 to the OFF position to turn the unit off.
  • Page 11 OPERATION (CONTINUED) TO SET OR RESET THE ACTUAL TIME Gently pull out the Clock/Alarm Time Set knob on the rear of the unit. TO SET OR RESET THE ALARM TIME Rotate the Clock/Alarm Time Set knob on the rear of the unit until the Alarm hand points at the desired alarm hour.
  • Page 12 OPERATION (CONTINUED) TO SET THE ALARM TO WAKE TO RADIO Set the alarm time as previously instructed. Select a radio station as described on page 9 and make sure the Volume control is set as desired. NOTE: Make sure the volume is not at minimum, otherwise, there will be no sound when alarming.
  • Page 13 OPERATION (CONTINUED) TO SET THE ALARM TO WAKE TO BUZZER Set the alarm time as previously instructed. Make sure the Volume control is set as desired. NOTE: Make sure the volume is not at minimum, otherwise, there will be no sound when alarming. To shut the alarm off, slide the AUTO/BUZZ/ON/OFF switch to the position.

  • Page 14: To Shut The Alarm Off

    OPERATION (CONTINUED) TO SHUT THE ALARM OFF To shut the alarm off, slide the AUTO/BUZZ/ON/OFF switch to the position. AUTO/BUZZ/ON/OFF switch to the AUTO or BUZZ position to reset it for the next day. SNOOZE The alarm can be temporarily turned off manually by pressing the SNOOZE button;...

  • Page 15: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Should this unit exhibit a problem, check the following before seeking service: SYMPTOM RADIO/ALARM No sound. Noise or sound distorted on AM or FM. CLOCK Clock does not operate. Alarm does not turn on. POSSIBLE CAUSE AUTO/BUZZ/ON/OFF switch not set to ON. Volume control at minimum position.
  • Page 16 For additional set-up or operating assistance, please visit our website at www.disneyelectronics.com or contact customer service at (954) 660-7026. Please keep all packaging material for at least 90 days in case you need to return this product to your place of purchase or Memcorp. For parts and accessories, contact Fox International at 1-800-321-6993.
