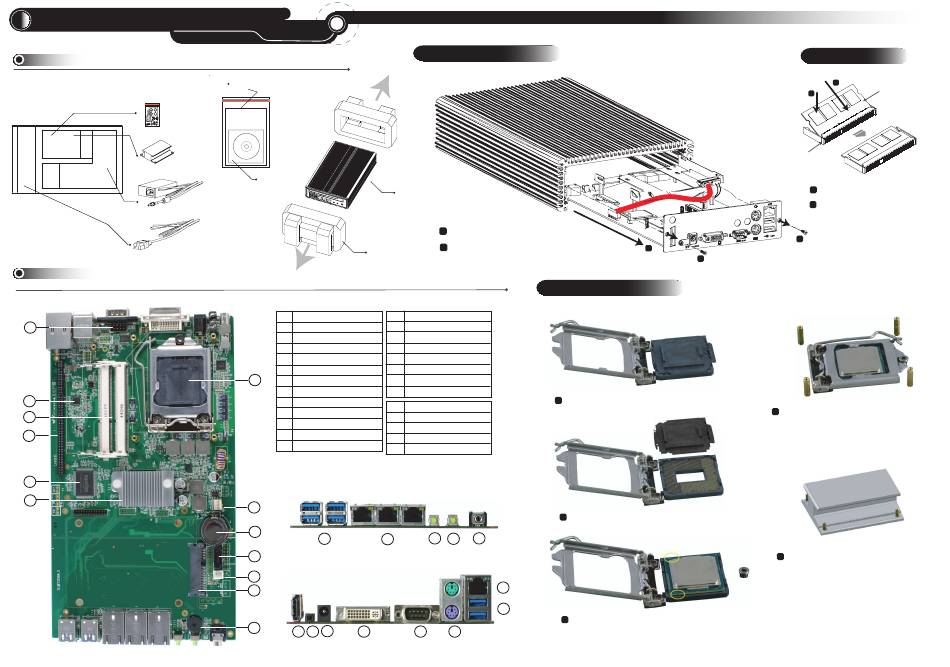

King Young S685FG3 Installation Manual

INSTALLATION GUIDE
Item Checklist
Specifications are subject to change
without notice, just for reference only .
Accessory
Pack
Heat-sink
Power Adapter
Power Cord
Mainboard Layout
1
4
5
3
7
6
M1685FG3
Install Guide
Installation
Guide
CD
System Unit
PU Sponge
1 1 Secondary COM Port Header Secondary COM Port Header
R1 R1 GigaLAN Port GigaLAN Port
2 2 CPU Socket CPU Socket
R2 R2 Two USB 3.0 Ports Two USB 3.0 Ports
3 3 Optional Riser Card Slot Optional Riser Card Slot
R3 R3 PS/2 Keyboard and Mouse Ports PS/2 Keyboard and Mouse Ports
4 4 Intel Giga LAN Chip Intel Giga LAN Chip R4 R4 COM 1 COM 1
5 5 SODIMM Slots SODIMM Slots
R5 R5 DVI-I Port DVI-I Port
6 6 Intel Q87 Chip Intel Q87 Chip
R6 R6 DC 12V Power In DC 12V Power In
2
7 7 Super IO Chip Super IO Chip
R7 R7 Line-Out Audio Port Line-Out Audio Port
8 8 CPU Cooling Fan Power Connector CPU Cooling Fan Power Connector R8 R8 DP (Display Port) DP (Display Port)
9 9 CMOS Battery CMOS Battery
F1 F1 Mic-In Phone Jack Mic-In Phone Jack
10 10 SATA Cable Connector SATA Cable Connector
F2 F2 Power Button Power Button
11 11 SATA Power Connector SATA Power Connector
F3 F3 Reset Button Reset Button
12 12 SATA HDD Connector SATA HDD Connector
F4 F4 Three GigaLAN Ports Three GigaLAN Ports
13 13 Buzzler Buzzler
F5 F5 Four USB 3.0 Ports Four USB 3.0 Ports
Standard S685G3 Front IO Ports
8
9
F5 F4
10
Standard S685G3 Rear IO Ports
11
12
13
R8 R7 R6
R5
Barebone System Unpacking Guide
1 Loose the screws on the rear panel
from the case.
2
Pull out the mainboard from the case.
Install CPU and CPU Cooler
1
Release the CPU socket lever and lift the metal frame
of the CPU socket
2 Remoe the CPU socket cover. Be aware do not touch
any pins in the CPU socket.
F3 F2 F1
R1
R2
3 Put the CPU to the socket. Align the CPU notches with
the socket alignment keys and gently put the CPU onto
R4 R3
the socket.
Install Memory
2
SODIMM Slot
1 Insert SODIMM into the SODIMM slot
on the motherboard by 30 .
2
Push down the SODIMM.
1 1
2
1
4 When CPU is properly seated, replace the metal
frame and push the CPU socket lever back to its
locked position.
Glue the heatsink compound on the CPU surface.
5
Install CPU heatsink on top of CPU. Tighten CPU
heatsink with four screws into pillaret.
Specifications are for reference only and subject to change without notice.
1
SODIMM
Complete
