WAGNER 0278712C Owner's Manual

High performance airless sprayer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Enlarged version

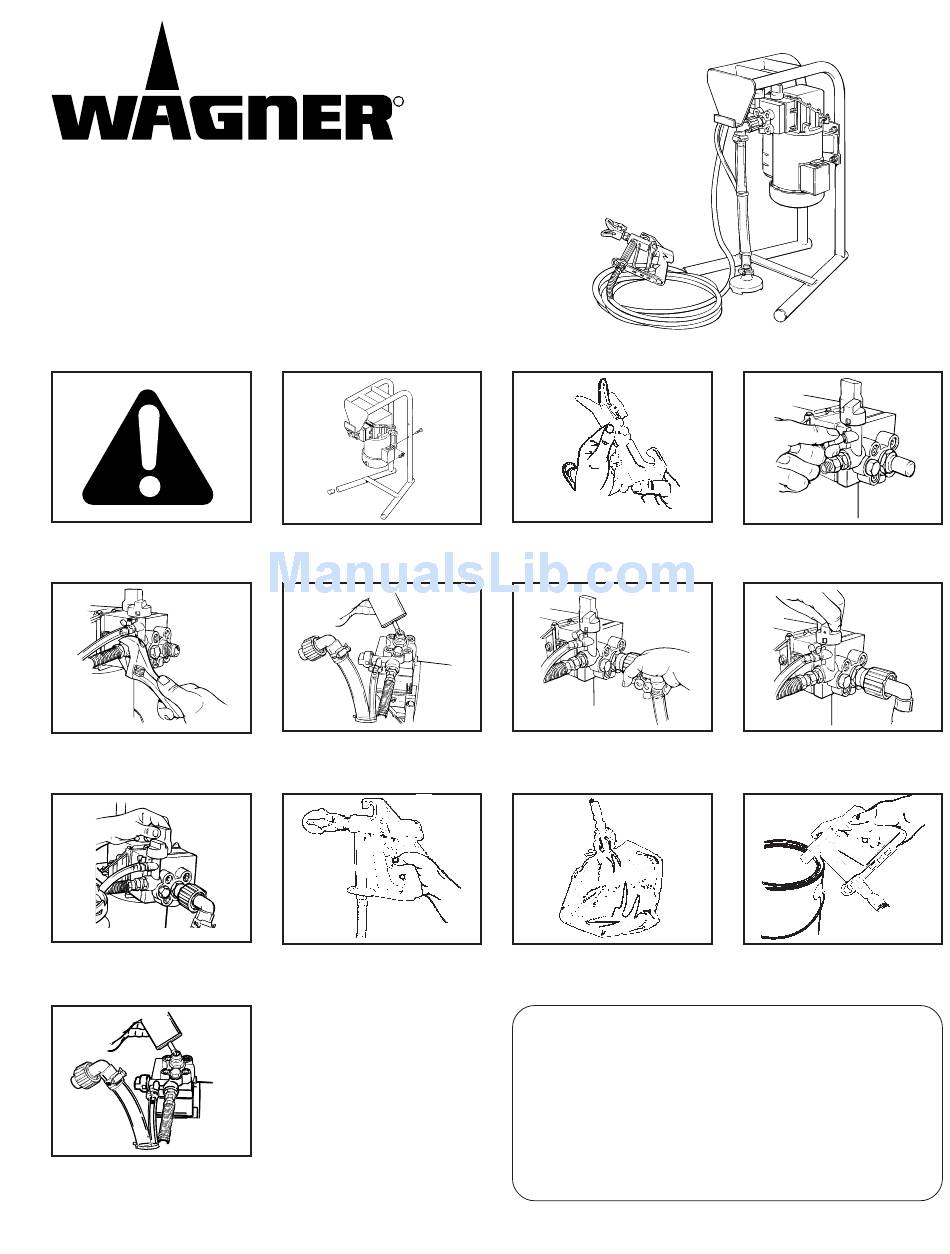

HIGH PERFORMANCE
AIRLESS SPRAYER
OWNER'S MANUAL
Easy does it from setup to cleanup
Read Warnings
Attach the paint hose
Set the pressure
Maintenance
© 1995 Wagner Spray Tech
PRINTED IN THE U. S. A.
R
Assemble the sprayer
Prepare to Prime
Spray
Attach the tip
Attach the suction set
Store temporarily
Questions? ... Need Help?
Call Wagner toll-free if you have any comments or
problems with this Wagner product. Call us first for
answers fast...
Wagner Technical Service
Hours: Weekdays: 8:00 - 4:30 Central Time
1
Attach the return hose
Prime the pump
Clean up
OR
1-800-880-0993
All rights reserved.
Form No. 0278712C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 0278712C and is the answer not in the manual?

Questions and answers

Related Manuals for WAGNER 0278712C

Summary of Contents for WAGNER 0278712C

  • Page 1 Wagner product. Call us first for answers fast... Attach the return hose Prime the pump Clean up Questions? ... Need Help? Wagner Technical Service 1-800-880-0993 Hours: Weekdays: 8:00 - 4:30 Central Time All rights reserved. Form No. 0278712C...

  • Page 2: Table Of Contents

    CONTENTS COMPONENTS ... 2 GENERAL DESCRIPTION ... 2 Specifications ... 2 SAFETY PRECAUTIONS ... 3-4 GROUNDING INSTRUCTIONS ... 5 SETUP ... 5-7 Assembling the sprayer ... 5-6 Attaching the tip to the gun ... 6 Attaching the return hose ... 6 Attaching the paint hose ...

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS This manual contains information which must be read and understood before using the equipment. When you come to an area which has one of the following symbols, pay particular attention and make certain to heed the safeguard. WARNING This symbol indicates a potential hazard which may cause serious injury or loss of life.
  • Page 4 WARNING EXPLOSION OR FIRE - Solvent and paint fumes can explode or ignite, causing property damage and/or severe injury. • Exhaust and fresh air introduction must be provided to keep the air within the spray area free from accumula- tion of flammable vapors. •...

  • Page 5: Grounding Instructions

    NOTE: Do not use more than 100 feet of extension cord. If you need to paint further than 100 feet from your power source, use more paint hose, not more extension cord. Shorter extension cords will ensure maximum electri- cal power for proper operation. GROUNDING INSTRUCTIONS This product must be grounded.

  • Page 6: Setup

    SETUP Attaching the pump to the stand. Align the motor with the four holes on the back of the stand assembly. Insert the four 5/16" x 1-3/4" screws through the holes on the back of the stand legs. Install the washer and nut over the end of each bolt and tighten with an adjustable wrench.

  • Page 7: Attaching The Paint Hose

    Attaching the paint hose 1. Attach the high pressure hose to the paint hose port. Use an adjustable wrench to tighten the paint hose securely. 2. Attach the gun to the other end of the high pressure hose. Tighten securely with two adjustable wrenches.

  • Page 8: Priming

    PRIMING Preparing to prime 1. Lay the unit back on its handle so that the inlet valve is facing up. Fill the inlet valve with water or with a light household oil. 2. Make certain that the PRIME/SPRAY knob is set to PRIME ( ) and that the pressure control knob is turned counterclockwise to the lowest pressure setting.

  • Page 9: Spraying

    2. Turn the PRIME/SPRAY knob to PRIME ( ). Prime/Spray Knob 3. Turn the motor switch to ON. 4. Turn the pressure control knob clockwise to be- tween half and full pressure. You should be able to see the paint move through the suction tube to the pump.

  • Page 10: Practice

    the pressure control knob counterclockwise to its lowest setting and set the priming knob to PRIME ( ). Turn the motor switch to OFF and unplug the sprayer. If you expect to be gone more than 1 hour, follow the short term clean up procedure described in the CLEANUP section of this manual.

  • Page 11: Cleaning The Filter During The Painting Process

    spray pattern and possibly damaging the filter. This filter must be cleaned daily. If the material being used is old or contains hardened particles, then the filter should be cleaned approximately every 4 hours. If the filter is not cleaned at the proper time, it will plug from the top down.

  • Page 12: Cleanup

    CLEAN UP Overnight storage Shutdown 1. Lock the gun by turning the gun safety switch parallel with the gun body. 2. Turn the pressure control knob counterclockwise to the minimum setting. 3. Turn the PRIME/SPRAY knob to PRIME ( ). 4.
  • Page 13 them into a container of water or appropriate solvent for the type of material with which you are painting. 11. Place the attached suction tube and return tube into a container of water or appropriate solvent for the type of material with which you are painting. 12.

  • Page 14: Maintenance

    that it is parallel to the gun body. 14. Turn the motor switch to OFF. Preparing the sprayer for long term storage 1. Remove the tip assembly and raise the suction set above the cleaning solution. 2. Turn the motor to ON. 3.

  • Page 15: Removing And Cleaning The Outlet Valve

    NOTE: The inlet valve must be oiled after every job. This will reduce or eliminate priming prob- lems the next time the sprayer is used. 4. Thoroughly clean the valve assembly with water or the appropriate solvent. Use a small brush. 5.
  • Page 16 © 1995 Wagner Spray Tech All rights reserved.

  • Page 17: Troubleshooting

    Problem The sprayer does not start up. The sprayer starts up but does not draw in paint when the PRIME/SPRAY knob is set to PRIME. The sprayer draws up paint but the pressure drops when the gun is triggered. The spray gun will not shut off. The spray gun leaks.

  • Page 18: Parts Lists

    Parts Diagram – Final Assembly ITEM PART NO. DESCRIPTION 0270590 Stand Weldment ... 1 9810107 Screw, 5/16" x 1-3/4" ... 4 9821505 Washer, 5/16" ... 4 9810197 Nut, 5/16" ... 4 0294635 Plug, Leg ... 2 ACCESSORIES PART NO. DESCRIPTION 0270192 Hose, 25' X 1/4"...

  • Page 19: Suction Set Assembly

    Parts Diagram – Suction Set Assembly 0270174 ITEM PART NO. DESCRIPTION 0270133 Suction tube assembly ... 1 (Includes Items 2 through 10) 0090622 Nut, suction ... 1 0281314 Elbow, adapter, 3/4" x 1" ... 1 0088931 Ring, snap ... 1 0089882 Clamp ...
  • Page 20 AIRLESS PAINT SPRAY EQUIPMENT This product, manufactured by Wagner Spray Tech Corporation (Wagner), is warranted to the original retail purchaser against defects in material and workmanship for 30 days from date of purchase for professional/rental use if operated in accordance with Wagner's printed recommendations and instructions. This warranty applies for one year from date of purchase for home use.
