Hi-Tech Diamond All-U-Need Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
All-U-Need
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the All-U-Need and is the answer not in the manual?

Questions and answers

Related Manuals for Hi-Tech Diamond All-U-Need

Summary of Contents for Hi-Tech Diamond All-U-Need

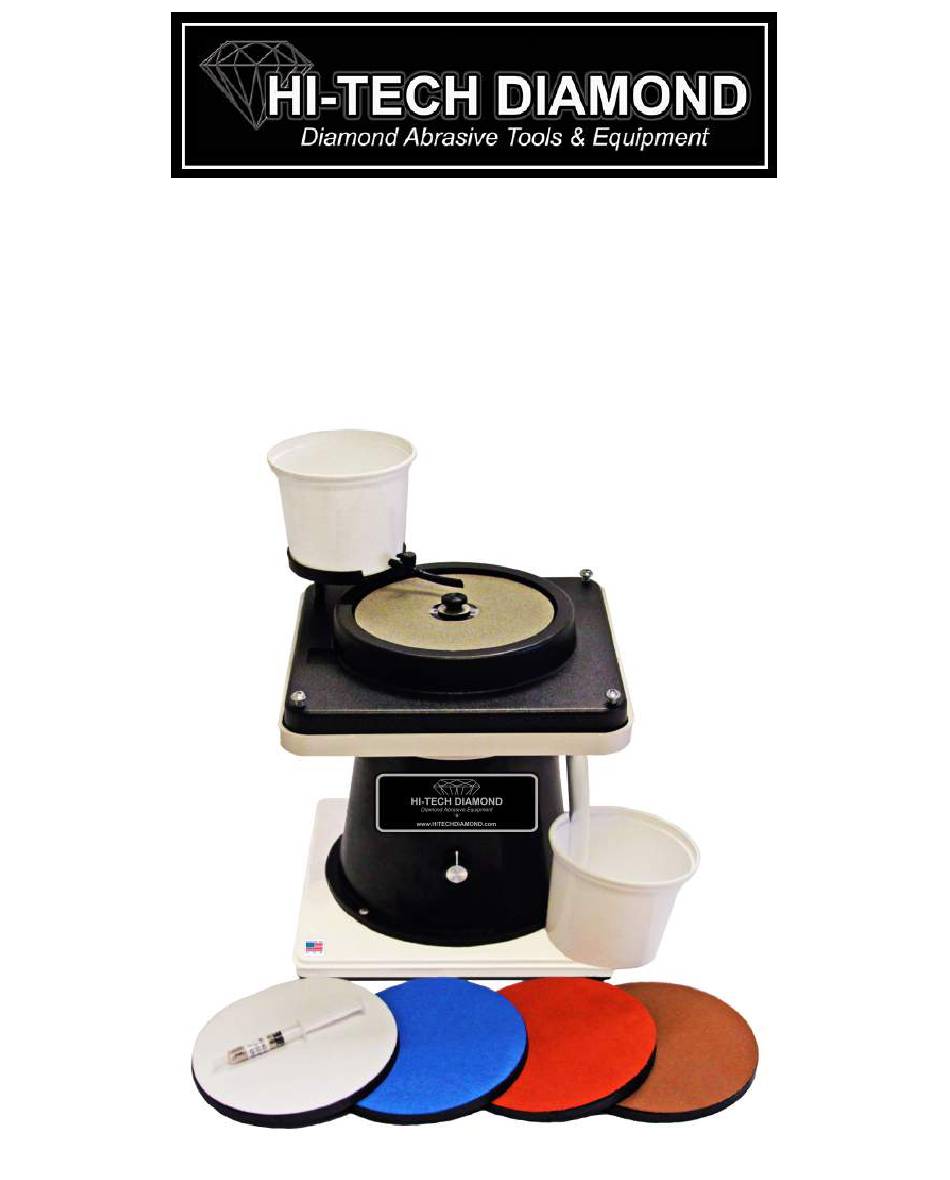

  • Page 1 All-U-Need Instruction Manual...

  • Page 2: Safety Instructions

    • USE ONLY IDENTICAL ALL-U-NEED PARTS FOR REPLACEMENT PARTS. Use of any other parts not originally intended for the All-U-Need may create a hazard or cause product damage.
  • Page 3 USAGE SAFETY • ALWAYS WEAR PROPER EYE PROTECTION to protect you from any debris that may fly out while grinding. We recommend wearing safety goggles or safety glasses with side shields. Everyday glasses are NOT safety glasses. If anyone is around the machine while it is in use, they must wear safety glasses.
  • Page 4 • DO NOT FORCE THE TOOL or attachment to do a job it is not designed to do. • NEVER GRIND MORE THAN ONE WORKPIECE AT A TIME. • DISCS CONTINUE TO SPIN AFTER TURNOFF eventually slowing to a stop. •...

  • Page 5: Table Of Contents

    Table of Contents SAFETY INSTRUCTIONS............... 2 MACHINE DETAILS................6 OPERATING INSTRUCTIONS..............7 GRINDING & POLISHING PROCESS............ 8 MAINTENANCE..................9 OPTIONAL CUP HOLDER INSTRUCTIONS......... 10 FAQ......................11 OPTIONAL ACCESSORIES..............12 WARRANTY INFORMATION..............15...

  • Page 6: Machine Details

    Machine Details What you see in the picture below is everything you should have when you unpack your All-U-Need machine: Water Cup 180 Mesh Electroplated Diamond Silver Arbor w/ Black Disc w/ Backing Plate Knob and Washer All-U-Need base unit...

  • Page 7: Operating Instructions

    Operating Instructions Carefully unpack the All-U-Need from the box and check all packaging material to make certain no accessories or small parts are inadvertently discarded. Should the machine arrive damaged, IMMEDIATELY contact the shipping company. If there are any missing parts or defects in the material or workmanship, contact Hi-Tech Diamond for repair or replacement at repairs@hitechdiamond.com.

  • Page 8: Grinding & Polishing Process

    All discs are made with industrial grade diamonds. The maximum weight of any discs/laps shouldn’t exceed 1.5lbs on your All-U-Need machine. Step 1: 180 Mesh Electroplated Diamond Disc (Rough Shaping) The 180 Mesh Diamond Disc is used for stock removal and shaping of hard-to-grind materials covering a wide hardness range.

  • Page 9: Maintenance

    Maintenance Oiling: The only thing you ever oil on your All-U-Need machine is the inside of the 2” arbor. This is necessary because the motor shaft and arbor are made of different materials. Over time, they can seize together, making it impossible to remove the arbor. Every two months or so, remove the arbor by sticking the hexagonal wrench into the set screw, turning counter-clockwise.

  • Page 10: Optional Cup Holder Instructions

    All-U-Need is the All-U-Need Cup Holder. Instead of a loose, tilted cup that isn’t held up by anything but the drain tube, we have added a cup holder to your All-U-Need to secure the cup. For a visual, the pictures below are the before and after images:...

  • Page 11: Faq

    What is the clear tube attached to the arbor for? This is a new addition on all of our All-U-Need machines. This tube will help prevent water to get into the motor. The All-U-Need is designed in such a way that water should never get into the motor but we take every precaution to prevent this from happening.

  • Page 12: Optional Accessories

    Optional Accessories These accessories can be purchased through Hi-Tech Diamond at www.HITECHDIAMOND.com Backing Plates These molded composite discs have a 1/2” arbor hole. They are the backing plates used for smoothing discs and polishing pads. SIZE PRODUCT ID 6” 32-007 8”...
  • Page 13 Using a propriety technique, a high concentration of diamond is loaded into each disc to provide an extremely aggressive grinding rate, yet leaving an exceptionally smooth surface finish. They are used on our All-U-Need, Slant Cabber and many other lap machines. Diamond Smoothing Disc Kits Include: One 325#, One 600#, One 1200#, One Tech-10 Polish Pad, One 14K Diamond Compound Syringe DIAMETER SIZE &...
  • Page 14 These electroplated diamond discs are the perfect tool for the commercial cutter or serious hobbyist. They are used on our All-U-Need, Slant Cabber and many other lap machines. Top grade diamonds are electroplated uniformly onto a steel plate, resulting in the highest quality lap on the market.

  • Page 15: Warranty Information

    This warranty does not cover problems resulting from any abuse, misuse, intentional damage, incorrect usage, failure to adequately take care of your All-U-Need or improperly following the instructions. It also does not cover rusty motors, as this is a result from water getting into the motor which should never occur if used properly.
  • Page 16 Manufactured by: Reentel International Inc. 808 Burr Oak Dr. Westmont, IL 60559 - USA Phone: 1.630.596.9909 E-mail: sales@hitechdiamond.com Website: www.hitechdiamond.com www.facebook.com/hitechdiamond www.twitter.com/hitechdiamond...
