Summary of Contents for KingCraft Model # A688

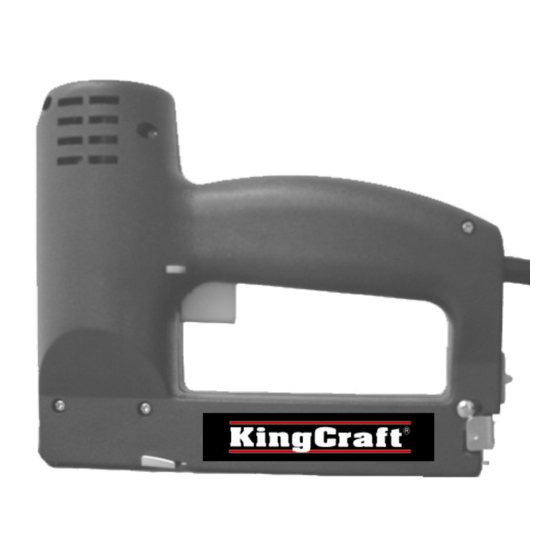

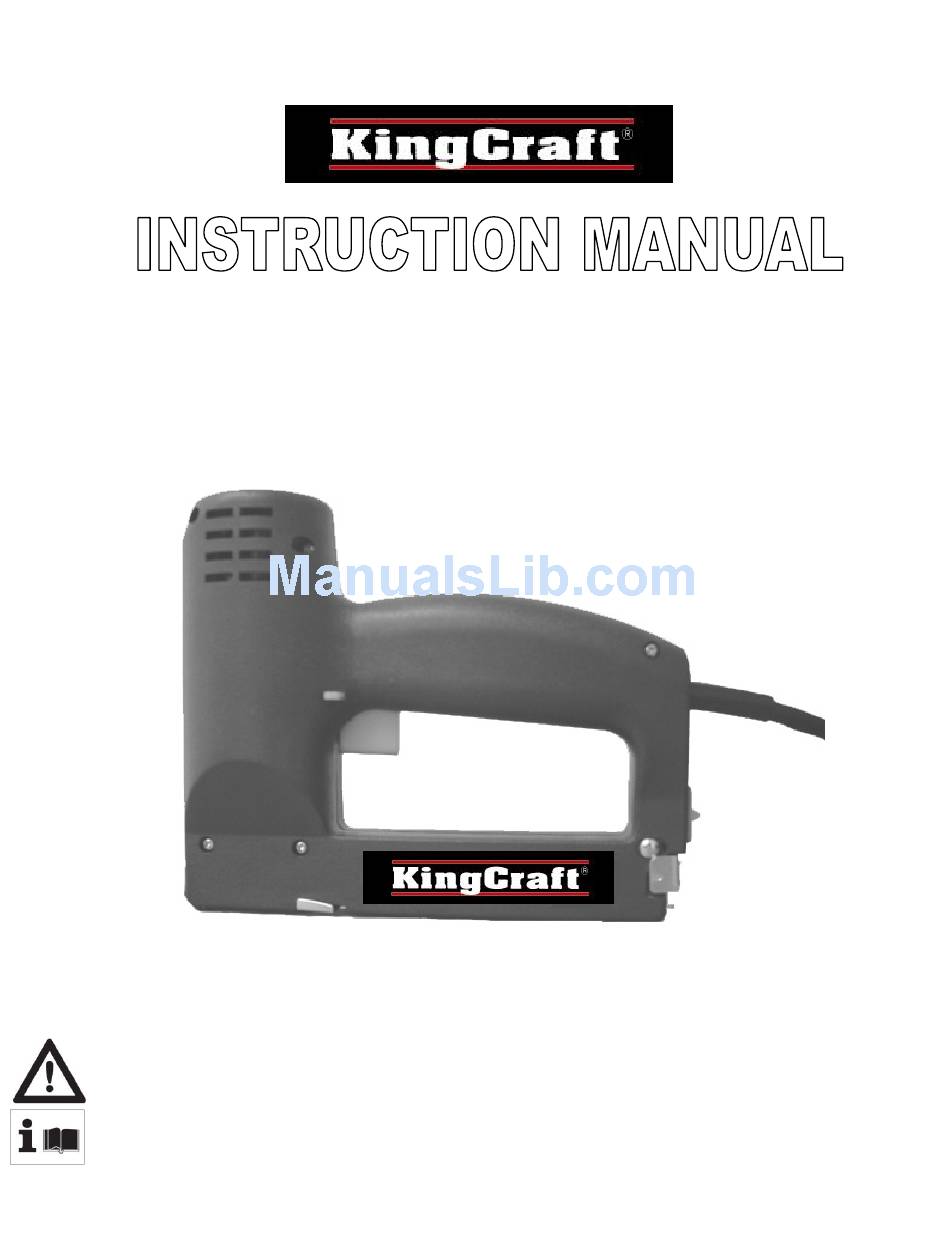

- Page 1 Electric Staple Gun Item# 6525 Model # A688 PLEASE READ AND SAVE THESE INSTRUCTIONS TO ENSURE THE SAFE AND EFFECTIVE USE OF THIS TOOL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Index Important Safeguards General Safety Rules List of Main Parts Tech. Specifications, Contents of Packing Operation Determining Proper Staple or Nail Length Maintenance Trouble Shooting Warranty Information Warranty Card P. 2 P. 3 P.3, 4 P.11... -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS 1. Staple Gun must not be loaded with staples and nails at the same time. 2. Do not lubricate. The Staple Gun has been lubricated at the factory. Under normal use it will not need further lubrication 3. Do not hold the Staple Gun toward people, it could invite serious injuries. 4. - Page 4 PERSONAL SAFETY 1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
-
Page 5: List Of Main Parts
LIST OF MAIN PARTS 1) Switch Pin 2) Trigger 3) Power Cord 4) Open/Lock Switch 5) Staple Feeder 6) Staple Channel TECHNICAL SPECIFICATIONS: Model Number A688 Rating Voltage 120Volts Nominal power 6AMPS Weight 2Lbs CONTENTS OF PACKAGING Electric Staple Gun 400 Staples (10mm) 100 Nails (15mm) If any of the above items are missing, please contact our service department at 1-888-... -
Page 6: Operation
OPERATION For safety concerns, please follow Electric Staple Gun procedures below: 1. Connect the plug to a power outlet or extension cord. 2. Place the Staple Gun so that the bottom of the Staple Gun is lightly touching the work piece you have prepared to staple/nail. 3. -
Page 7: Determining Proper Staple Or Nail Length
DETERMINING PROPER STAPLE OR NAIL LENGTH In choosing the proper staple or nail length for the job there are two basic things to consider: 1. Thickness of the material to be stapled 2. Hardness of the wood As a general rule, in hardwood, approximate 3/16” to 1/4” penetration into the wood is sufficient and for soft wood up to approximately 3/8”... -
Page 8: Trouble Shooting
TROUBLE SHOOTING QUICK JAMMING RELEASE 1) Release Staple Feeder from Staple Channel (see OPERATION page 7). 2) Push Open/Lock Switch upward this will release Staple Channel (photo 6) 3) Open Staple Channel to remove jammed staples (photo 7). 4) Close Staple Channel and push down Open/Lock Switch. Lock will click ensuring that the lock switch is in locked position (photo 8). -
Page 9: Limited Warranty
LIMITED WARRANTY Thank you for purchasing a top quality KingCraft product. This Electric Staple Gun item #65258 was tested and meets our stringent quality standards. This product is warranted to be free from manufacturing defects in original materials, including original parts, and workmanship until March 13 . -
Page 11: Warranty Card
WARRANTY CARD Electric staple gun, item # 6525, model # A688 In case you find this product to be defective please send it within the warranty period to our service center. To avoid transport damages please send the product in the original packaging. In return you will receive your repaired item, a new product or a refund.
