Summary of Contents for KingCraft QL-3100B

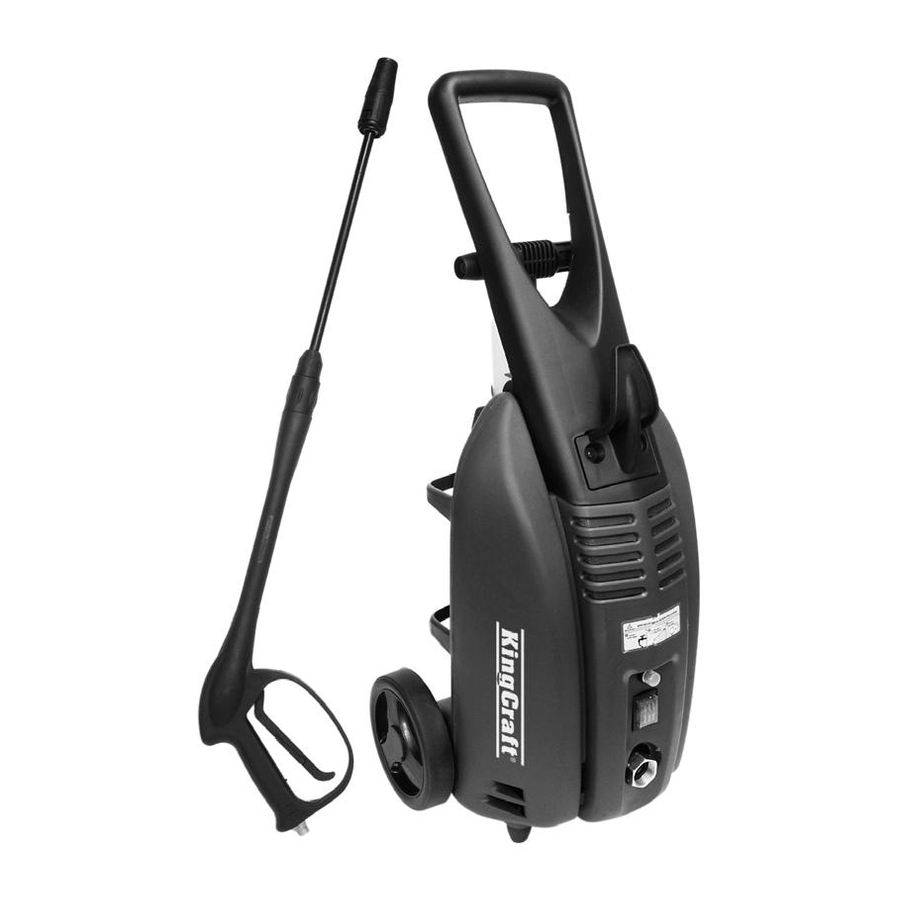

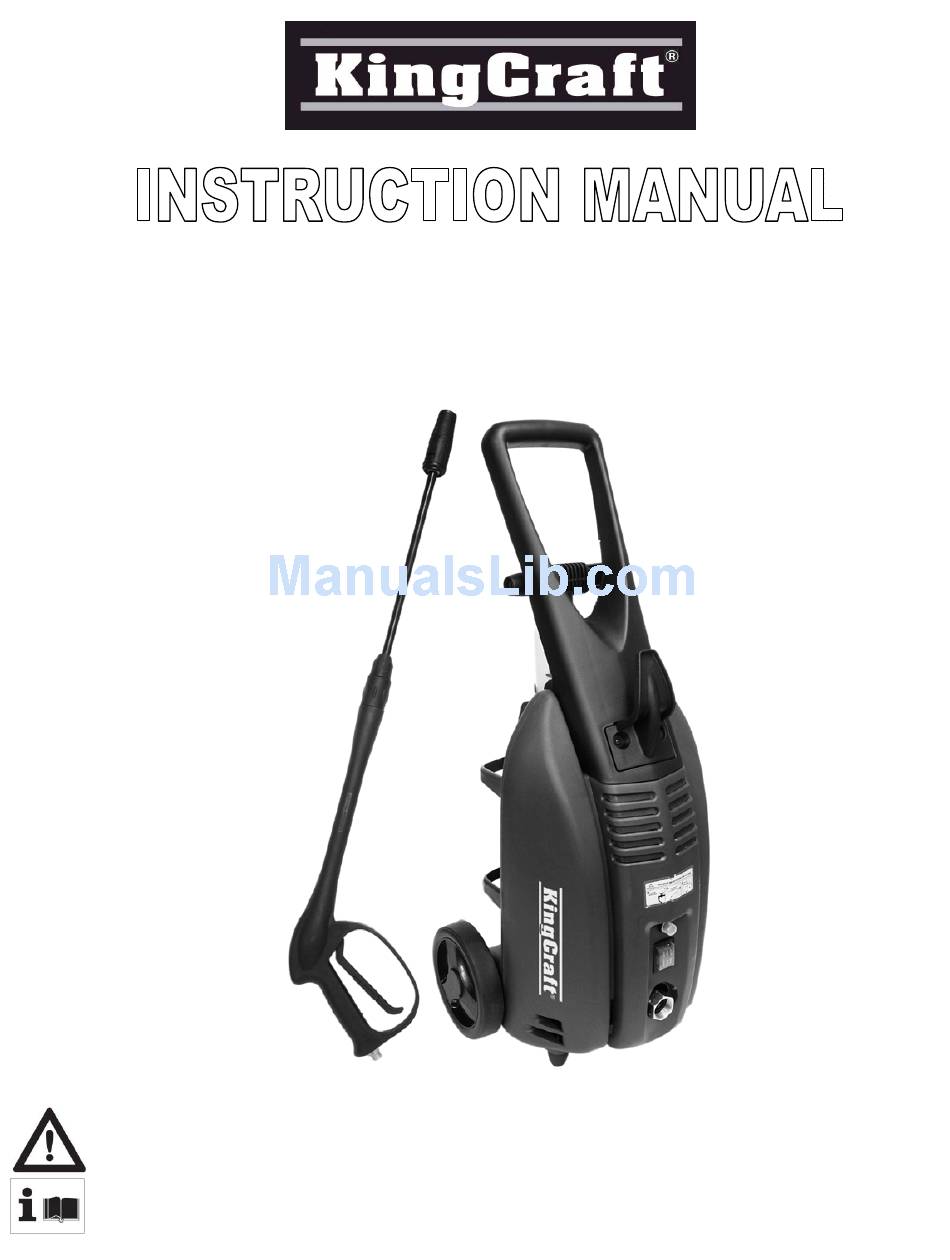

- Page 1 1,595 PSI Electric Pressure Washer Item#3686-05 Model # QL-3100B PLEASE READ AND SAVE ALL INSTRUCTIONS TO ENSURE THE SAFE AND EFFECTIVE USE OF THIS TOOL.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Index Important Safety Instructions General Safety Instructions List of Main Parts Tech. Specifications Contents of Packaging Assemby Operation Maintenance Trouble Shooting Warranty Information Warranty Card Spare Part Order Form P. 1 P. 2-3 P. 4-6 P. 7-8 P. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS PLEASE READ AND SAVE THESE INSTRUCTIONS. Read carefully before attempting to assemble, install, operate or maintain this product. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage! Retain instructions for future reference. -
Page 4: Grounding Instruction
18. Disconnect power plug from the outlet when not in use and prior to the detaching of the pressure hose. 19. Never tie knots or kinks the pressure hose as damage can result. 20. Prior to starting the pressure washer in cold weather, be sure ice has not formed in any part of the appliance. -
Page 5: General Safety Instructions
GENERAL SAFETY RULES WARNING! Read, understand and save all instructions. Failure to follow all instructions listed below may result in electric shock, fire or serious personal injury. The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. -
Page 6: Electrical Requirements
4. Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the hands of untrained users. They should be kept away from work area. 5. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the tools operation. -
Page 7: Wire Sizes
WIRE SIZES Make sure the proper extension cord is used and is in good condition. The use of any extension cord will cause some loss of power. To keep this to a minimum and to prevent overheating and motor burnout, use the table below to determine the minimum wire size (A.W.G.) extension cord. -
Page 8: List Of Main Parts
LIST OF MAIN PARTS PARTS DESCRIPTION Motor Housing Black Plastic Hooks Handle High Pressure Hose Handle Frame Gun Lance Back Wheel Soap Spray Bottle Turbo Nozzle 10. Spray Nozzle 11. GFCI Power Plug 12. Power Cord 13. Rubber Feet 14. Rubber Foot Screws 15. - Page 9 29. Gun Lance Connecter 30. Pressure Washer Connector 31. Male High Pressure Connector 32. Soap Spray nozzle 33. Soap Spray Bottle 34. Over Load Switch 35. Power ON/OFF Switch 36. Water Inlet FIG. 5 FIG. 6 FIG. 7...
-
Page 10: Technical Specifications
TECHNICAL SPECIFICATIONS: Model Number QL-3100B Rating Voltage 100-120v Frequency 60Hz Power 1500w Protection category IPX5 Working Pressure 1500 PSI Max. flow 1.58 gal./min Max. Water temp. 140°F Max. Pressure 1595 PSI Weight 40 Lbs CONTENTS OF PACKAGING a) Motor Housing with attached Pump... -
Page 11: Assemby
ASSEMBLY 1. Using a set of small pliers, attach a wheel clip to one side of the wheel axle. 2. Tighten the wheel clip until you hear a snap. The click sound indicates that the wheel clip is secured. 3. From the opposite side of the wheel clip slide one of the back wheels onto the wheel axle. - Page 12 6. Slide the wheel axle into the pressure washer housing. (Note: If wheel axle does not slide easily try sliding wheel axle through the other side of pressure washer housing or try greasing the axle.) 7. On the other side of the pressure washer housing pull the wheel axle all the way out.
- Page 13 10. Place wheel cover over wheel cap and push down to secure. 11. Insert rubber foot screw into rubber foot. 12. Screw rubber foot into pressure washer housing. Note: Only tighten until it feels snug. If over tightened the screw will cut through rubber. 13.
- Page 14 14. Place handle on top of motor housing. 15. Insert handle frame on the opposite side of handle. 16. Screw 2 x 7/8” black screws into lower pair of handle screw holes and secure. 17. Insert black plastic hook into slot on handle.
- Page 15 18. Screw 2 x 7/8” black screws into holes on the black plastic hook and secure onto handle. 19. At the back of the motor housing attach the second black plastic hook to housing. Screw 2 x 7/8” black screws into holes on the black plastic hook and secure to motor housing.
-
Page 16: Operation
OPERATION HIGH PRESSURE PIPE CONNECTION Connect the nozzle to the gun lance by screwing it together. Screw the gun lance connector into the gun lance. Screw the pressure hose with connector into the high pressure outlet on the back of the pressure washer. - Page 17 CONNECTION OF THE WATER SUPPLY TO THE PRESSURE WASHER Connect the water supply to the water inlet on the front of the pressure inlet. Turn on water supply. LOCKING AND UNLOCKING THE TRIGGER ON THE GUN LANCE The trigger lock is meant to prevent the unintentional discharge of the spray gun. How to lock the trigger: Pull the handle forward Slide the lock latch down to the arrow marked on the gun handle...
- Page 18 How to turn on pressure washer: Operate the pressure washer in vertical position only after connecting the water supply to the water inlet and water supply has been turned on. Switch power switch to ON. Position the spray gun on the object to be cleaned.
- Page 19 2. TURBO NOZZLE- Sometimes referred to as a rotary nozzle, is a very effective tool that can significantly reduce cleaning time. The turbo nozzle combines the power of a narrow high impact stream and the efficiency of a 25 degree fan pattern.
- Page 20 5. Screw soap spray bottle onto lance. Spray bottle operation- When cleaning with the pressure washer, some cleaning tasks can be solved with water alone, but for most tasks it is advantageous to use a detergent. A detergent ensures a quick soaking and allows high pressure water to penetrate and remove the dirt more effectively.
-
Page 21: Maintenance
MAINTENANCE CAUTION: Before undertaking any work on the appliance always turn power switch OFF and detach the plug from the power socket. Undertake only the maintenance operations described in the user instructions. CLEANING A clogged and partially clogged nozzle can cause a significant reduction of water coming out of the nozzle and cause the unit to pulse while spraying. -
Page 22: Environmental Protection
TROUBLE SHOOTING Trouble Possible Cause Pressure drops or - Lack of water oscillations - Nozzle is dirty The motor hums when - Main voltage too low switched on and fails to - Gun not activated start - Extension cord too small The motor stops - Overload cut-out,... -
Page 23: Limited Warranty
LIMITED WARRANTY Thank you for purchasing a top quality KingCraft product. This Pressure Washer item #3686-05 was tested and meets our stringent quality standards. This product is warranted to be free from manufacturing defects in original materials, including original parts, and workmanship until July 7 , 2006 or 1 year with proof of purchase. -
Page 24: Warranty Card
WARRANTY CARD Electric Pressure Washer, item # 3686-05, model #QL-3100B In case you find this product to be defective please send it within the warranty period to our service center. To avoid transport damages please send the product in the original packaging. In return you will receive your repaired item, a new product or a refund. -
Page 25: Spare Part Order Form
ORDER FORM FOR REPLACEMENT GUN LANCE, PRESSURE HOSE, SPRAY NOZZLE, AND TURBO NOZZLE Price per Gun Lance (includes shipping and handling $ 17.00) Price per Pressure Hose (includes shipping and handling $ 14.00) Price per Spray Nozzle (includes shipping and handling $ 10.00) Price per Turbo Nozzle (includes shipping and handling $ 10.00) Please send a MONEY ORDER only (no cash or personal checks) , payable to Wachsmuth &...
