VuPoint DC-WPST591-VP Series User Manual

DC-WPST591-VP (series)
User's Manual

1. Getting to know your camera.

1.1 Features
5.0 Mega pixels resolution sensor
Video clips
Audio recorder
PC camera
Built-in Microphone
Built-in flash
TV output
2.0" LTPS color display
Internal 16MB flash memory with SD card support (SD card not included)
Macro mode
Driver free for Windows XP/Vista and MAC 10.x or above
1.2 Specifications
Sensor 5.0 Mega pixel CMOS sensor
12.0 Mega pixels: (4032x3024) (Hardware Interpolation)*
8.0 Mega pixels: (3264x2448) (Hardware Interpolation)*
Image resolution 5.0 Mega pixels: (2560x1920)
3.1 Mega pixels: (2048x1536)
1.3 Mega pixels: (1280x960)
300K pixels: (640x480)
Lens F/2.8 f=8.5mm
Focus range 1.6 ft. - Infinity
Macro mode 0.4ft. – 0.6ft.
Digital zoom 8x
Flash strobe Built-in (Auto/force/off)
LCD display 2.0" color LTPS TFT
White balance Auto/Daylight/cloudy/Tungsten/Fluorescent
Video mode 30fps@QVGA &20fps@VGA
Built-in memory 16MB Flash memory
VGA: (640x480) --138 Pictures
Picture Capacity in
1.3M: (1280x960) -- 54Pictures
16MB memory (The
quantity of pictures 3.1M: (2048x1536) -- 28 Pictures
varies and depends on
5.0M: (2560 x 1920) -- 21 Pictures
the contents of the
8.0M: (3264x2448) -- 14 Pictures
photos.)
12M: (4032x3024) --3 Pictures
External memory card SD card supports up to 8GB (SD card not included)
File format Picture: JPEG, Video: AVI, Voice: WAV
Self timer 2, 10, 10+2 seconds
PC interface USB 1.1
TV-out NTSC/PAL
2xAAA alkaline batteries(Rechargeable batteries not
Power source
recommended)
1.3 System requirements
Windows XP/Vista or above
Operating System
Mac 10.x or above
CPU Pentium II or above
RAM At least 64MB
Interface USB port
CD 4x speed CD ROM or above

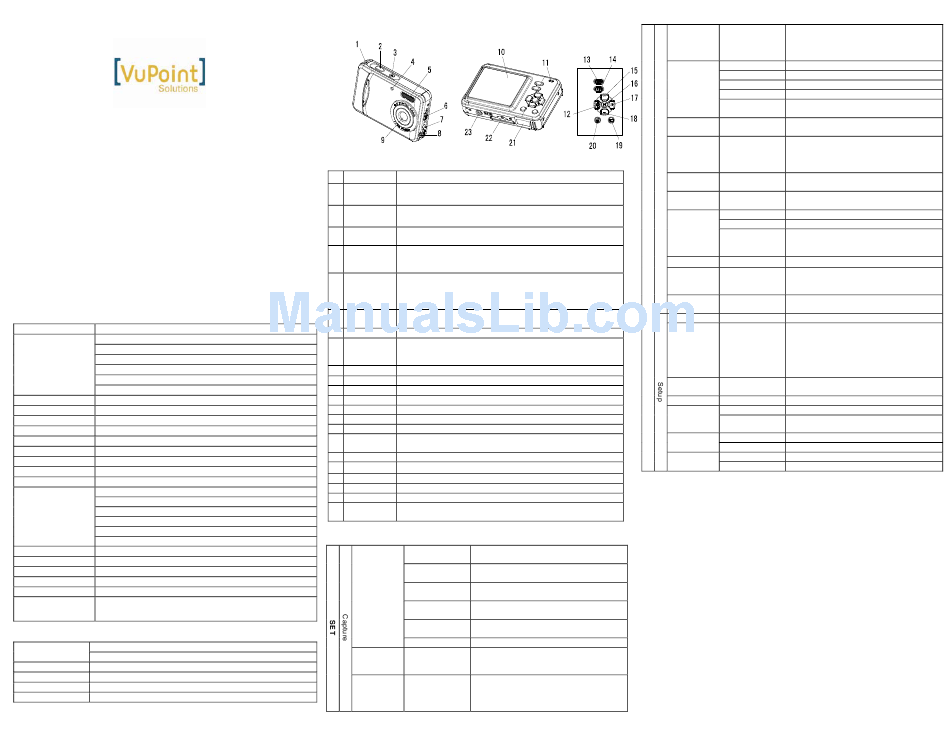

2. Functional parts:
Hook for attaching the wrist strap to the camera.
Strap hook
1
Press this button to take photographs or to start/stop recording
Shutter
2
a short video clip.
Power on/off
Press this button to turn on, press again to turn off.
3
button
Self-timer
4
Blinks when the self-timer function is operating.
indicator
Use the built-in flash to give the subject extra lighting in dark
Flash light
surroundings (the best flash distance is recommended within
5
4.9ft.).
Macro mode: Select this mode to take close-up photographs
Macro (distance 0.4 ft. – 0.6 ft).
6
switch Normal mode: Select this mode to take photographs from 1.6 ft
- infinity
USB Using this connection, you can download photographs and
7
interface video clips to a computer.
AV port For television connection.
8
Records the image to be taken.
Lens
9 Note: Keep the lens clean. Dirt and fingerprints will affect the
quality of the picture.
10 LCD screen Display photographs, video clips, camera setting and menu.
11 Busy LED When the indicator is lit, the camera is in busy mode.
12 Left/ display For menu LEFT selection, and LCD display on / off.
13 Menu For camera setting.
14 Mode Press it to select different modes.
15 UP UP & Digital zoom in
16 OK Press it to confirm changes.
Right/flash
For menu right selection, and selection of flash light mode.
17
light
18 Down DOWN & Digital zoom out
19 Playback Press it to enter playback mode.
20 Delete Press it to delete the photo in playback mode.
21 Battery door 2xAAA alkaline batteries
22 SD card slot SD card slot.
Tripod
To place the camera on tripod.
23
connector
3. Setting your digital camera.
12M pixel *4032 x 3024
resolution
8.0M pixel *3264 x 2448
resolution
5.0M pixel 2560 x 1920
Size resolution
3.1M pixel 2048 x 1536
esolution
1.3M pixel 1280 x 960
resolution
VGA resolution 640 x 480
Fine(Default)/Sta
Quality ndard/ Picture quality setting
Economy
Auto(Default)/Sp
ort/Night/
Scene mode Scene setting
/Landscap
Portrait
e/Backlight
+/-2, +/-5/3,
Exposure +/-4/3,
Level of exposure
value +/-2/3,+/-1/3
+/-1, 0(Default)
Auto (Default) Automatic white balance
Daylight White balance selected for daylight surroundings
White Cloudy White balance selected for cloudy surroundings
balance
Tungsten White balance selected for tungsten lighting
White balance selected for fluorescent
Fluorescent
surroundings
Auto(Default)/10 Sensitivity select
ISO
0/200
Standard
efault) / Vivid /
Color Color setting
Sepia /
Monochrome
Normal(Default) / Saturation setting
Saturation
High / Low
Normal(Default) / Sharpness setting
Sharpness
Hard /Soft
2s Set the delay time at 2s to take a picture
10s Set the delay time at 10s to take a picture
Self timer
Set the delay time at 10s to take a picture,
10+2s and then every 2s to take pictures
automatically.
DD,MM,YYYY
Date Input Off(Default)/Set
Off(Default)/Date
Shows the date and / or time on the
Time Stamp Only/Date &
pictures
Time
Continuous Continuous Continuously shoot up to 3 pictures
shoot shoot within 10 seconds.
Format Execute/cancel Format the memory card.
English(Default)/
T-Chinese/S-Chi
nese/French/Ger
Language Select display language
man/
Italian/Spanish/P
ortuguese
Auto power Auto power off in 1min, 3min (default) or
1/3/5 min and Off
off 5 min if not in operation
Sys. Reset Execute/cancel Restore default settings
Light- 50Hz Main European electricity frequency
Frequency
60Hz Main American electricity frequency
(Flicker)
NTSC American and Japanese video format
TV- Out
PAL European video format.
PC Cam Work as a web camera.
USB
Disk Drive Use as a portable disk.
Note: The camera will remain the last setting when it is turned off.
4. Explanation of the status icons on the
LCD screen.
