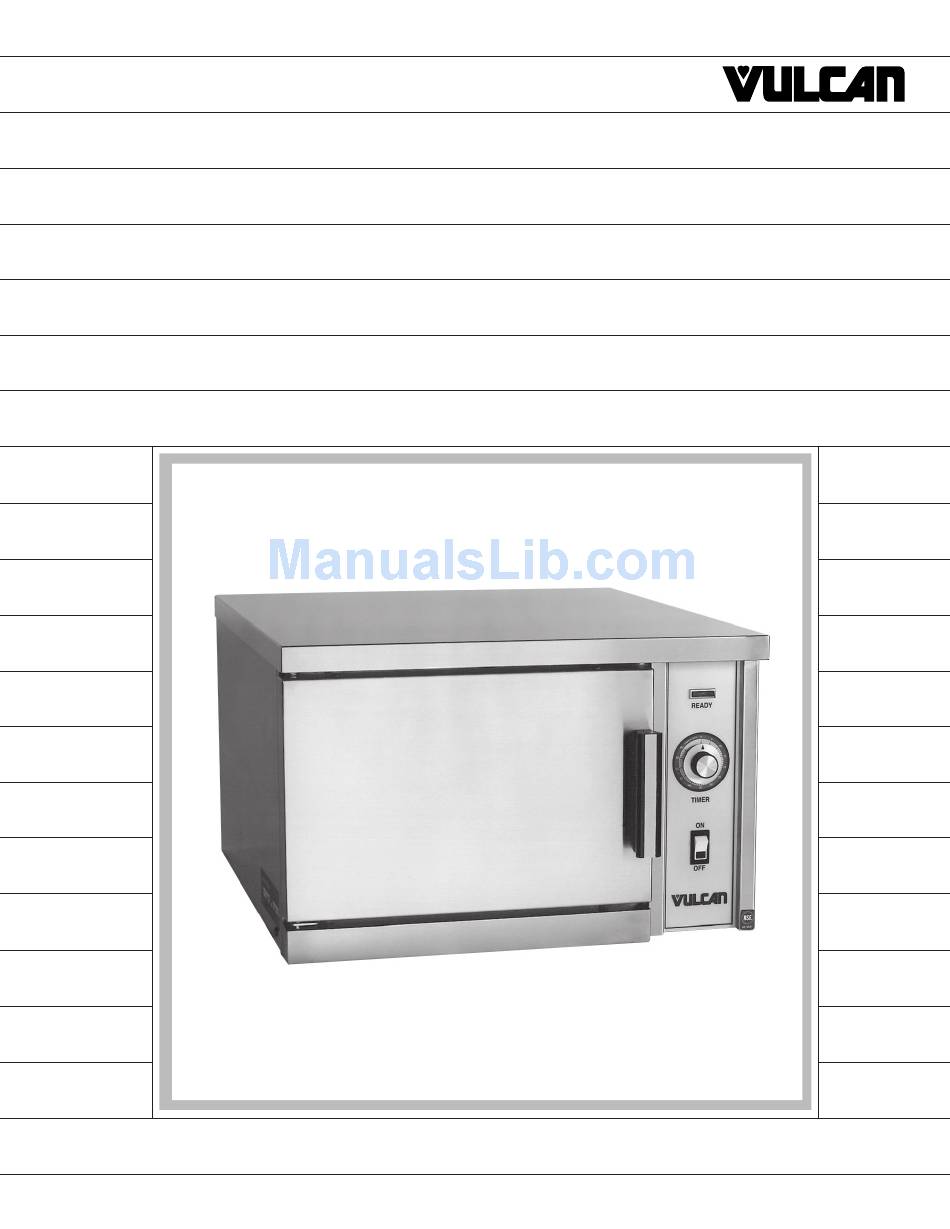

- Page 1 SERVICE & PARTS MANUAL FOR ELECTRIC COUNTERTOP CONVECTION STEAMER MODEL VSX9000 VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201- 0696, TEL. (502) 778-2791 FORM 30847 (1-94)
- Page 2 THIS PAGE INTENTIONALLY LEFT BLANK...
-
Page 3: Table Of Contents
GENERAL ................4 WATER QUALITY . -
Page 4: General
MODEL VSX9000 ELECTRIC COUNTERTOP PLEASE KEEP THIS MANUAL Your Vulcan Steamer is a one-compartment pressureless steam cooker that has been factory assembled and tested to provide for easy installation. It has been factory set when on to maintain water temperature during the ready phase at approximately 205 F (just below water boiling point). -
Page 5: Troubleshooting
TROUBLESHOOTING POSSIBLE CAUSES Either or both solenoid valves are not closing when the steamer is OFF. Contact your Vulcan-Hart authorized servicer or Vulcan- Hart Company, Louisville, KY (phone number is listed on the front of this manual). Problem with operating probe caused by either: 1. -
Page 6: Service
Your steamer has been factory set so that when it is ON and during the READY phase, it will maintain water temperature in the steam generator tank at approxiamtely 205 F (just below water boiling point). However, for high altitude locations, an authorized Vulcan-Hart servicer must adjust the steamer to achieve this temperature. To adjust: 1. -
Page 7: Water Flows Into Drain During Shutdown
Water fill solenoid valve is open, then any or all of these symptoms may indicate a problem with the operating probe due to either: 1. A short between the operating probe terminal and body of the steamer. Call your Vulcan-Hart authorized servicer. -
Page 8: Heater Elements Do Not Come On
HEATER ELEMENTS DO NOT COME ON When the steamer is turned ON and heater elements do not activate, and therefore, the READY light does not come on, then the contactors may be burned out. If a considerable amount of "chattering" of contactors has been experienced previously, then the thermostat bulb must be coated with scalant and unable to accurately sense water temperature in the boiler, and therefore, unable to control the contactors. -
Page 9: Replacement Parts List
If you need assistance in locating your nearest authorized parts and service depot, contact Vulcan-Hart Product Service Department at the telephone number shown on the front cover of this manual. - Page 10 VSX9000 STEAMER - 10 -...
-
Page 11: Replacement Parts
ITEM NO. PART NO. 844191 844192 844193 844194 840496 840479 844195 844196 842049 844197 840499 844198 844199 881973 844200 843814 843812 843813 844201 844156 844157 843818 836997 843806 843781-3 843807 844202 844260 843803 843802 843804 836926 840511 843969 881978 836927 836928 836929 844261... -
Page 12: Wiring Diagram
WIRING DIAGRAM - 12 - FORM 30847 (1-94) PRINTED IN U.S.A.
