Important Safety Instructions
When using your telephone equipment, basic safety precautions should always be followed
to reduce the risk of fire, electric shock and injury, including the following:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or
aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this product near water (for example, near a bath tub, kitchen sink, or
swimming pool).
5. Do not place this product on an unstable cart, stand, or table. The product may fall,
causing serious damage to the product.
6. Slots and openings in the cabinet and the back or bottom are provided for ventilation. To
protect it from overheating, these openings must not be blocked by placing the product
on the bed, sofa, rug, or other similar surface. This product should never be placed near
or over a radiator or heat register. This product should not be placed in a built-in-
installation where proper ventilation is not provided.
7. This product should be operated only from the type of power source indicated on the
marking label. If you are not sure of the type of power supply to your home, consult your
dealer or local power company.
8. Do not allow anything to rest on the power cord. Do not locate this product where the cord
will be abused by persons walking on it.
9. Never push objects of any kind into this product through cabinet slots as they may touch
dangerous voltage points or short out parts that could result in a risk of fire or electric
shock. Never spill liquid of any kind on the product.
10. To reduce the risk of electric shock, do not disassemble this product. If service or repair
work is required, contact VTech Customer Service at 1-800-595-9511. Opening or
removing cabinet parts other than specified access doors may expose you to dangerous
voltages or other risks. Incorrect reassembling can cause electric shock when the appliance
is subsequently used.
11. Do not overload wall outlets and extension cords as this can result in the risk of fire or
electric shock.
12. Unplug this product from the wall outlet:
a) When the power supply cord or plug is damaged or frayed.
b) If liquid has been spilled into the product.
c) If the product has been exposed to rain or water.
d) If the product does not operate normally by following the operating instructions. Adjust
only those controls that are covered by the operating instructions because improper
adjustment of other controls may result in damage and will often require extensive work
to restore the product to normal operation.
e) If the product has been dropped and the cabinet has been damaged.
f ) If the product exhibits a distinct change in performance.
13. Avoid using a telephone (other than a cordless type) during an electrical storm. There
may be a remote risk of electric shock from lighting.
14. Do not use the telephone to report a gas leak in the vicinity of the leak.
If you have questions about this product, or if you're
having difficulty with setup or operation, do not return
your phone to the store. Call our Customer Support
Center at:
In Canada, call
1-800-595-9511
1-800-267-7377
1
Advertisement
Table of Contents
Related Manuals for VTech Telephone
Summary of Contents for VTech Telephone
-
Page 1: Important Safety Instructions
13. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lighting. 14. Do not use the telephone to report a gas leak in the vicinity of the leak. If you have questions about this product, or if you're having difficulty with setup or operation, do not return your phone to the store. - Page 2 Introduction Parts Check List: 1. Handset 2. Base Unit 3. Telephone Line Cord 4. Battery Pack 5. AC Adapter 6. User's Manual To purchase replacement battery packs, call VTech Communications at 1-800-595- 9511. In Canada, call VTech Electronics at 1-800-267-7377.
-

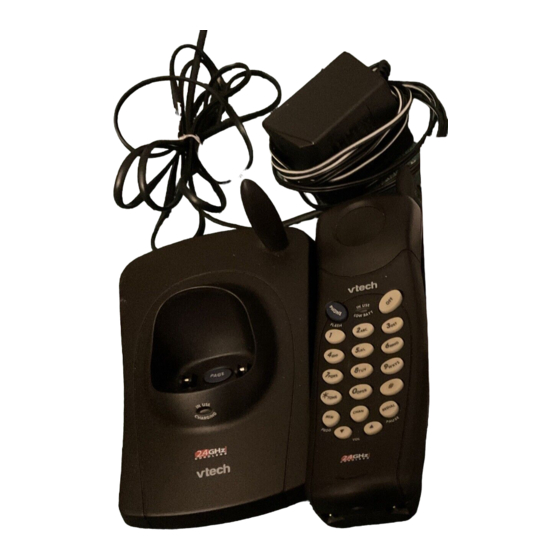

Page 3: Handset And Base Layout
Handset and Base Layout 1. Antenna 2. Earpiece 3. IN USE/LOW BATT LED 4. PHONE(FLASH) 5. Dialing Keys (0-9,*, #) 6. MEM(PROG) 7. Channel 8. OFF 9. REDIAL(PAUSE) 10. Volume 11. PAGE 12. IN USE/CHARGING LED... - Page 4 Setup Connecting power to Base Unit Plug the AC power adapter into an electrical outlet, and the DC connector into the bottom of the Base Unit. Installation of Battery Pack in Handset Follow the steps below: 1. Remove the battery cover by pressing on the indent and sliding downward.
- Page 5 4. Do not dispose of the battery in a fire. The cell may explode. Connecting to phone line Plug one end of the telephone line cord into the jack on the bottom of the Base Unit. Plug the other end of this cord into the telephone wall jack.
-
Page 6: Handset Features
Handset Features IN USE/LOW BATT LED • The IN USE/LOW BATT LED lights when the Handset is on an active call. • It flashes in cadence with an incoming ring. • It flashes quickly during programming mode. • It flashes slowly when battery is low. PHONE / FLASH KEY •... -
Page 7: Base Unit Features
Base Unit Features IN USE/CHARGING LED • The LED illuminates steadily when the Handset is in the Base cradle to indicate that the Handset battery is being charged. • The LED illuminates whenever the Handset is being used. • This LED also flashes in cadence with the incoming ring. PAGE KEY •... -
Page 8: Operating Instructions
Operating Instructions Making Calls • Pick up the Handset and press PHONE. • When you hear a dial tone, dial the number. • The IN USE LED will illuminate while the Handset is on a call. If you make a mistake when dialing, press OFF to hang up, then press PHONE to get the dial tone again. - Page 9 If you have rotary service, press MEM/PROG, *, #, MEM/PROG to switch to PULSE. Temporary Tone If you have a rotary (dial-pulse) telephone service, (TONE/PULSE setting is set to PULSE), this feature allows you to enter special codes and tones to operate answering machines, use electronic banking services, calling cards, or other special services.
- Page 10 Operating Instructions Checking the Ringer To check the ringer which is currently programmed, do the following: • Press MEM/PROG. • Press the # key. • Press 0. • Press the MEM/PROG key to confirm. Memory Dialing • The t 2406 can store up to 10 different phone numbers that you can dial just by pressing PHONE, MEM/ PROG and one of the number keys...
- Page 11 Operating Instructions Storing Pauses in Memory • To insert a pause in a phone number, press REDIAL/PAUSE. The pause is 2 seconds in length. pauses, press REDIAL/PAUSE two or more times. Each additional press adds an additional 2 seconds pause. •...
-
Page 12: Maintenance
Avoid water Your telephone can be damaged if it gets wet. Do not use the Handset outdoors in the rain, or handle it with wet hands. Do not install your Base Unit near a sink, bathtub or shower. -
Page 13: In Case Of Difficulty
First check all the suggestions above. • If you still don't hear a dial tone, disconnect the Base Unit from the telephone jack and connect a different phone. If there is no dial tone on that phone either, the problem is in your wiring or local service. Contact your local telephone company. - Page 14 In Case Of Difficulty Common Cure For Electronic Equipment If the unit does not seem to be responding normally, then try putting the Handset in the cradle. If it does not seem to respond, do the following(in the order listed) : 1.
-
Page 15: Warranty Statement
VTech; or 3. Product to the extent that the problem experienced is caused by signal conditions, network reliability or cable or antenna systems; or 4. Product to the extent that the problem is caused by use with non-VTech electrical accessories; or... - Page 16 If the Product failure is not covered by this limited warranty, or proof of purchase does not meet the terms of this limited warranty, VTech will notify you and will request that you authorize the cost of repair prior to any further repair activity.
- Page 17 • In no event shall VTech be liable for any indirect, special, incidental, consequential, or similar damages (including, but not limited to lost profits or revenue, inability to use the product, or other associated equipment, the cost of substitute equipment, and claims by third parties) resulting from the use of this product.
-
Page 18: Fcc, Acta And Ic Regulations
Consult the dealer or an experienced radio/TV technician for help. FCC and ACTA Information If this equipment was approved for connection to the telephone network prior to July 23, 2001, it complies with Part 68 of the Federal Communications Commission (FCC) rules. - Page 19 The REN is used to determine how many devices you may connect to your telephone line and still have them ring when you are called. In most, but not all areas, the sum of all RENs should be five (5.0) or less. You may want to contact your local telephone company for more information.
- Page 20 If you do, please keep three things in mind: a. We recommend that you also write the telephone number on the directory card, so that you can still dial the emergency number manually if the memory dialing feature doesn’t work.
- Page 21 Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.
-
Page 22: Technical Specifications
Technical Specifications FREQUENCY CONTROL Crystal controlled PLL synthesizer TRANSMIT FREQUENCY Base: 2410.2-2418.9 MHz Handset: 912.75-917.10 MHz RECEIVE FREQUENCY Base: 912.75-917.10 MHz Handset: 2410.2-2418.9 MHz CHANNELS 30 Channels NOMINAL EFFECTIVE RANGE Maximum power allowed by FCC and IC. Actual operating range may vary according to environmental conditions at the time of use. - Page 23 A member of THE VTECH GROUP OF COMPANIES. Distributed in the U.S.A. by VTech Communications Inc.; Beaverton, Oregon. Distributed in Canada by VTech Electronics Canada Ltd., Suite 200, 7671 Alderbridge Way, Richmond, B.C. V6X 1Z9. Copyright 2003 for VTECH TELECOMMUNICATIONS LTD.
