- Page 1 TSA6000-USB USER GUIDE...
-
Page 2: Table Of Contents
Copyright 2004-2005 TSA 6000-USB Version 1.0 TABLE OF CONTENTS 1. Quick Start ....................1 1.1 Activating the TSA 6000-USB ..................... 1 1.2 Recording a Data file ......................2 1.3 Sending files to a PC......................2 1.4 Analyzing files ........................2 2. -
Page 3: Quick Start
Copyright 2004-2005 TSA 6000-USB Version 1.0 TSA 6000-USB 1. Quick Start 1.1 Activating the TSA 6000-USB Connect the TSA 6000 USB hardware to a PC with the USB cable. Power the TSA 6000 USB device. Install the TSA 6000 Software. You will be asked for an activation code to register the TSA 6000 software. -
Page 4: Recording A Data File
Copyright 2004-2005 TSA 6000-USB Version 1.0 1.2 Recording a Data file Press the button. The status bar will indicate the unit is recording and display the elapsed time. Press the button to end the recording process. The data is displayed on the screen for analysis. 1.3 Sending files to a PC Files are transferred from the TSA 6000 USB hardware as soon as a recording is stopped. -
Page 5: System Set-Up
Copyright 2004-2005 TSA 6000-USB Version 1.0 2. System Set-up 2.1 Packing List • TSA 6000-USB Signal Collection Unit • USB cable for connecting the TSA 6000-USB to your computer • AC adapter for powering your TSA 6000-USB 2.2 Software Installation Make sure you have the following ready: •... - Page 6 Copyright 2004-2005 TSA 6000-USB Version 1.0 Calibration The TSA 6000 USB runs a calibration routine on the AC channel when the calibrate button is clicked. Remove any telephone cables connected to the TSA 6000 USB ‘Line’ or ‘Telephone’ jacks before calibrating. Calibration need only be run once after Software initialization.
-
Page 7: Front Panel

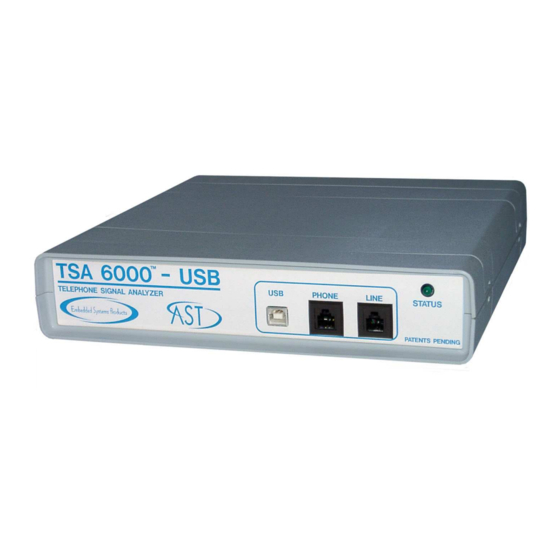

Copyright 2004-2005 TSA 6000-USB Version 1.0 3. Front Panel 3.1 Audio and Data interfaces RJ-11 Jacks The TSA6000-USB has 2 parallel RJ-11 jacks on the front panel. USB Connector The TSA6000-USB has a USB jack for connection to a PC Status LED When the TSA 6000 USB is powered on and not recording, the Status LED will flash with a 10% duty cycle and a 2Hz rate (“blip”... - Page 8 Copyright 2004-2005 TSA 6000-USB Version 1.0 Advanced TSA 6000-USB dialog box: Amount of signal to Pre-dial window, capture before a displays digits trigger event dialed. Total recording duration, including Dials any Pre-trigger duration digits shown in the Pre-dial window Event Triggers. See Help file in TSA software for details.
-
Page 9: Features And Specifications
Copyright 2004-2005 TSA 6000-USB Version 1.0 6. Features and Specifications The TSA 6000 is designed to collect and analyze the following signals: • Caller-ID Timing and Signaling • VMWI Timing and Signaling • DTMF • Pulse Dialing • Call Progress Tones •... - Page 10 Copyright 2004-2005 TSA 6000-USB Version 1.0 TSA 6000 Specifications: • Operating Temperature: 0 C to +40 • Storage Temperature: -20 C to +60 • AC Coupled Channel Dynamic Range Sample Rate Bandwidth Tolerance Sensitivity 4 Vpp 16,000 samples/sec 100-7000 Hz +/- 1.0 dB -60 dBm •...
-
Page 11: Product Safety & Regulatory
Copyright 2004-2005 TSA 6000-USB Version 1.0 7. Product Safety & Regulatory 7.1 Product Approvals SAFETY EMC / IMMUNITY CSA60950 FCC Part 15 (Class A) UL60950 ICES-003, CISPR22 (Class A) IEC60950: 1999-04, EN 60950:2000 EN 55022, CISPR22 (Class A) EN 61000-3-2 (Class A) EN 61000-3-3 (Class A) EN 50082-1:1997 7.2 Safety... -
Page 12: Fcc & Industry Canada Notices
7.5 Copyright This publication may not be reproduced, in whole or in part, without prior expressed written permission from AST Technology Labs and Embedded Systems Products Inc. All rights reserved. Copyright 2002/2003/2004/2005 by AST Technology Labs and Embedded Systems Products Inc. All rights reserved. Patent pending. -
Page 13: Revisions
Embedded Systems Products Inc. reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of AST Technology Labs and Embedded Systems Products Inc. to notify any person or organization of such revisions or changes. -
Page 14: Tsa 6000 Support
Copyright 2004-2005 TSA 6000-USB Version 1.0 8. TSA 6000 Support Visit our web site at www.tsa6000.com for useful tips and updates. If you are having trouble with any aspect of your TSA 6000 contact: support@tsa6000.com - 12 -...
