VTech gz2334 User Manual

VTech gz2334 User Manual

Cordless telephone with animated caller id matc, five musical ring tones built-in and changeable face/base plates
Hide thumbs Also See for gz2334:
Table of Contents

Advertisement

Quick Links

Download this manual

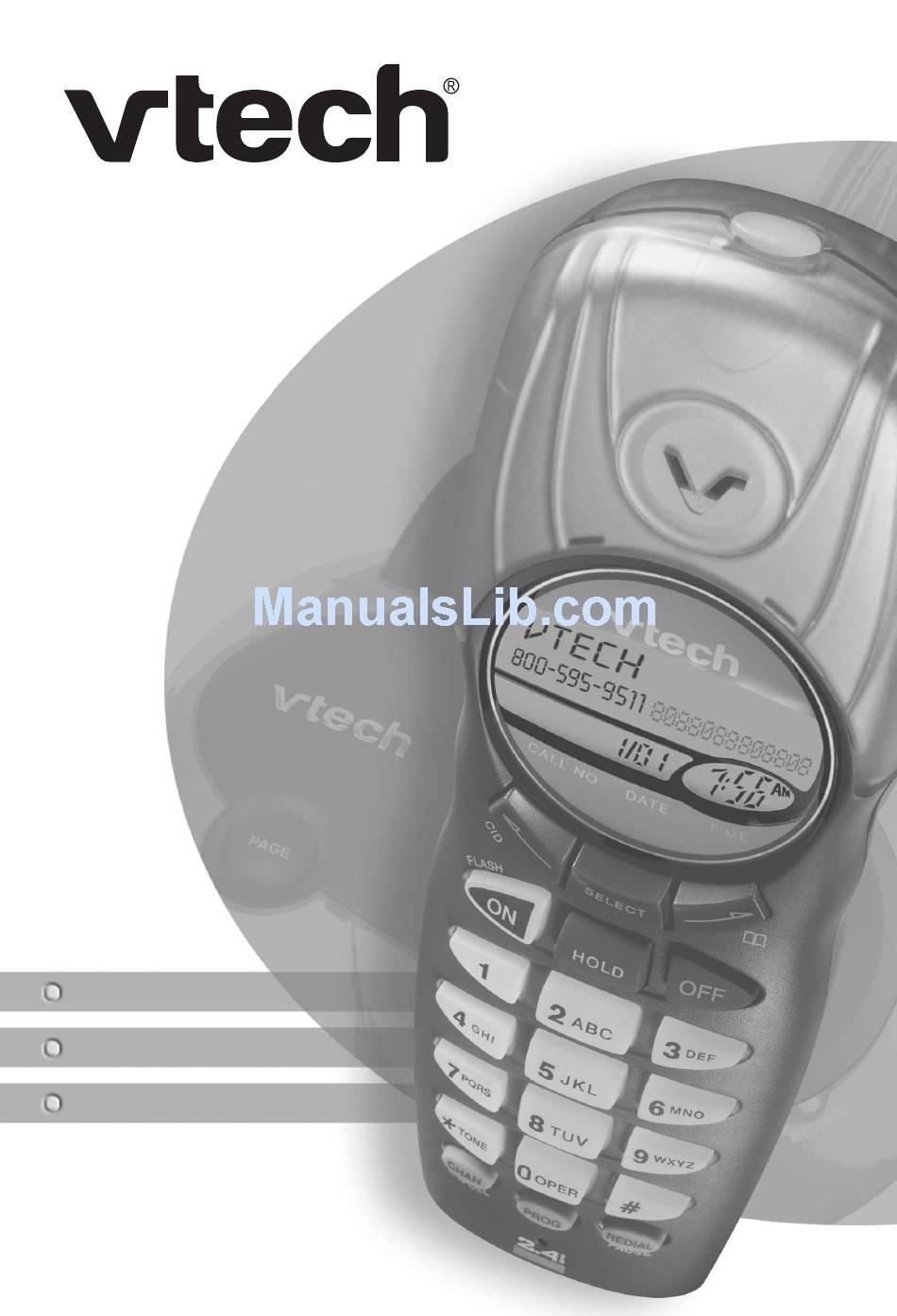

V Mix
2.4 GHZ Cordless Phone
TM
USER'S MANUAL
gz2334
Animated Caller ID Match
Five Musical Ring Tones Built-In
Changeable Face/Base Plates

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the gz2334 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VTech gz2334

Summary of Contents for VTech gz2334

  • Page 1 V Mix 2.4 GHZ Cordless Phone USER’S MANUAL gz2334 Animated Caller ID Match Five Musical Ring Tones Built-In Changeable Face/Base Plates...

  • Page 2: Important Safety Instructions

    Important Safety Instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following: 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the product. 3.
  • Page 3 Important Safety Instructions 13. Avoid using a telephone (other than cordless) during an electrical storm. There is a remote risk of electric shock from lightning. 14. Do not use the telephone to report a gas leak in the vicinity of the leak. 15.

  • Page 4: Before You Begin

    Parts Check List 1. Base Unit 2. Handset 3. AC Power Adapter 4. Telephone Line Cord 5. Battery To purchase replacement batteries, please call VTech Telecommunications Canada Ltd. at 1-800-267-7377. Handset AC Power Adapter User’s Manual 6. Belt Clip 7. User’s Manuals 8.

  • Page 5: Getting Started

    Setup Connecting Power to Base Unit Choose a location for the base near an electrical outlet and a telephone jack. This phone requires a modular tele- phone jack and a standard electrical outlet (110V AC) not controlled by a wall switch. Plug the AC power adap- tor into the electrical outlet and the DC connector to the jack on the bottom of the base unit.

  • Page 6: Check For Dial Tone

    Pick up the handset and press ON. You should hear a dial tone. CAUTION: Use only the VTech power supply provided with your telephone. IMPORTANT! FOR MAXIMUM PERFORMANCE OF YOUR CORDLESS TELEPHONE SYSTEM: 1.

  • Page 7: Basic Operation

    Handset Features (CID) • When phone is not in use, press to display caller ID information. • During a call, press to de- crease listening volume. A double beep will sound when you reach the low- est setting. ON/FLASH • Press this button then dial the number to make a call.

  • Page 8: Base Features

    Base Features PAGE Press to page the handset for up to 60 seconds. Press again, press OFF, or place the handset in its base to cancel the page. IN USE/CHARGING Indicator • Flashes when the handset is in use. • Flashes in unison with an incoming call’s ringing.

  • Page 9: Telephone Operation

    Telephone Operation Set Handset Ringer Style You can select from four traditional ringers, five musical ringers, or turn the ringer OFF. 1. Make sure the handset is OFF. 2. Press PROG. until the screen displays RINGER: and the current setting. 3.

  • Page 10: Set Language

    Telephone Operation You can retrieve your voicemail messages from any telephone. If the indicators remain on after all new messages have been reviewed, you can turn them off manually: 1. Make sure the handset is OFF. 2. Press PROG. until the screen displays MESSAGES WAITING. 3.

  • Page 11: Display Screen Messages

    Telephone Operation If you move out of range without pressing OFF, your phone will be left off the hook. To hang up properly, walk back into range, periodically pressing OFF. Display Screen Messages Screen Displays: ** RINGING ** CONNECTING... PHONE ON MESSAGES WAITING ** PAGING ** HOLD...

  • Page 12: Speed Dial

    Speed Dial You can store as many as nine telephone numbers with names (up to 15 characters and 24 digits in each location) you dial frequently into the speed dial memory locations you assign in the handset. NOTES: 1. The entries you store in speed dial memory will be marked 01 through 09 in the telephone directory.

  • Page 13: Edit A Number/Name Stored In Speed Dial Memory

    Speed Dial -OR- Press REDIAL/PAUSE to display the last number dialed. 8. Press SELECT or PROG. The screen displays DISTINCT RING? and the current set- ting. 9. Press to change the setting. Choose Y (for yes) if you wish the phone to alert you to calls from this number by changing to a distinctive ringing pattern after the first ring.

  • Page 14: Delete A Number/Name Stored In Speed Dial Memory

    Speed Dial in Store a Number/Name in Speed Dial Memory. Delete a Number/Name Stored in Speed Dial Memory 1. Press and hold the memory location key (1 through 9) of the entry you wish to delete. 2. When the screen displays the number you want to delete, press SELECT.

  • Page 15: Telephone Directory

    Telephone Directory This cordless phone can store 20 telephone numbers with names (including nine speed dial entries), each up to 15 characters for the name and 24 digits for the number. NOTE: Press OFF at any time to exit directory. Store a Number/Name in the Directory 1.

  • Page 16: Edit A Number/Name Stored In The Directory

    Telephone Directory 8. Press SELECT or PROG to confirm your selection. If you chose Y, the screen dis- plays: NOTE: If you chose N, skip to Step 10. 9. The ringer name will blink. Press SELECT or PROG to confirm. The screen displays: to change the setting.

  • Page 17: Delete A Number/Name Stored In The Directory

    Telephone Directory Delete a Number/Name Stored in the Directory ). The screen displays DIRECTORY. 1. Press 2. Press to scroll alphabetically through entries. -OR- Press the dial pad key for the first letter of the entry you want to delete. 3.

  • Page 18: Caller Id Operation

    Caller ID Operation About Call History This phone assigns each incoming call a number from 1 to 45. The most recent call will have the highest number. When the memory is full, the oldest call information is deleted to make room for new incoming call information.

  • Page 19: Store A Call History Record In The Directory

    Caller ID Operation flashes. 4. Press SELECT again. The number is automatically dialed. -OR- When the number is correctly displayed for dialing, press ON. Store a Call History Record in the Directory 1. Locate the record in the call history you want to store in the directory. 2.

  • Page 20: Ringer Options

    Ringer Options In addition to four traditional ringer options and ringer OFF, your gz 2334 handset has five popular pre-programmed melodies. Traditional Ring Options Pre-programmed Melodies: Ringer 1 Ringer 2 Ringer 3 Ringer 4 Ringer OFF 1. Punk 2. Grunge 3.

  • Page 21: Headset Operation

    If you choose to use the headset option, you must obtain an optional accessory headset, which is compatible with the gz 2334. To purchase a headset, please call VTech Customer Service at 1-800-267-7377. Once you have a compatible 2.5mm headset, locate the headset jack on the gz 2334 handset.

  • Page 22: Additional Information

    If you have difficulty operating your phone, the suggestions below should solve the problem. If you still have difficulty after trying these suggestions, visit us on the web at www.vtechcanada.com or call VTech Telecommunications at 1-800-267-7377 (in Canada). In the USA, call VTech Communications at 1-800-595-9511.
  • Page 23 In Case of Difficulty You hear other calls while using your phone • Disconnect your base unit from the telephone jack, and plug in a regular telephone. If you still hear other calls, the problem is probably in your wiring or local service. Call your local telephone company.

  • Page 24: Cleaning Your Telephone

    Maintenance Taking care of your telephone Your cordless telephone contains sophisticated electronic parts, so it must be treated with care. Avoid rough treatment Place the handset down gently. Save the original packing materials to protect your telephone if you ever need to ship it. Avoid water Your telephone can be damaged if it gets wet.

  • Page 25: Warranty Statement

    3. Product to the extent that the problem experienced is caused by signal conditions, network reliability or cable or antenna systems; or 4. Product to the extent that the problem is caused by use with non-VTech electrical accessories; or 5. Product whose warranty/quality stickers, Product serial numbers plates or electronic serial numbers have been removed, altered or rendered illegible;...

  • Page 26: Other Limitations

    If the Product failure is not covered by this limited warranty, or proof of purchase does not meet the terms of this limited warranty, VTech will notify you and will request that you authorize the cost of repair prior to any further repair activity. You must pay for the cost of repair and return shipping costs for the repair of Products that are not covered by this limited warranty.

  • Page 27: Fcc, Acta And Ic Regulations

    This equipment is compatible with inductively coupled hearing aids. Should you experience trouble with this telephone equipment, please contact: VTech Communications Inc. CUSTOMER SERVICE at 1-800-595-9511. In Canada, call VTechTelecommunications Canada Ltd. at 1-800-267-7377 for repair/warranty information. The telephone company may ask you to disconnect this equipment from the line network until the problem has been corrected.

  • Page 28: Connection And Use With The Nationwide Telephone Network

    FCC, ACTA and IC Regulations 1. Product identifier and REN information The label on the back or bottom of this equipment contains, among other things, an identifier indicating product approval and the Ringer Equivalence Number (REN). This information must be provided to your local telephone company upon request. For equipment approved prior to July 23, 2001, the product identifier is preceded by the phrase “FCC Reg No.”...

  • Page 29: Hearing Aid Compatibility

    FCC, ACTA and IC Regulations 5. Hearing aid compatibility If this product is equipped with a corded or cordless handset, it is hearing aid compatible. 6. Programming/testing of emergency numbers If this product has memory dialing locations, you may choose to store police, fire department and emergency medical service telephone numbers in these locations.
  • Page 30 FCC, ACTA and IC Regulations Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas. Caution: Users should not attempt to make such connections themselves, but should contact the appropriate electrical inspection authority or electrician as appropriate.

  • Page 31: The Rbrc Seal

    VTech’s participation in RBRC retailers participating in the RBRC Please call 1-800-8-BATTERY™ for information on Ni-Cd battery recycling and disposal bans/restrictions in your area. VTech’s involvement in this program is part of its commitment to protecting our environment and conserving natural resources. RBRC is a registered trademark of Rechargeable Battery Recycling Corporation.

  • Page 32: Technical Specifications

    Technical Specifications FREQUENCY CONTROL Crystal controlled PLL synthesizer TRANSMIT FREQUENCY Base: 2410.2 - 2418.9 MHz Handset: 912.75 - 917.10 MHz RECEIVE FREQUENCY Base: 912.75 - 917.10 MHz Handset: 2410.2 - 2418.9 MHz CHANNELS 30 Channels NOMINAL EFFECTIVE RANGE Maximum power allowed by FCC and IC. Ac- tual operating range may vary according to environmental conditions at the time of use.
  • Page 33 VTECH TELECOMMUNICATIONS LTD. A member of THE VTECH GROUP OF COMPANIES. Distributed in Canada by VTech Telecommunications Canada Ltd., 7671 Alderbridge Way, Richmond, B.C. V6X 1Z9. Distributed in the U.S.A. by VTech Communications, Inc.; Beaverton, Oregon, 97008. Copyright 2004 for VTECH TELECOMMUNICATIONS LTD.

  • Page 34: Table Of Contents

    Table of Contents Important Safety Instructions ...1 Before You Begin ...3 Parts Check List ...3 Getting Started ...4 Setup...4 Installation of Battery in Handset...4 Connecting Power to Base Unit...4 Charge the Battery ...4 Check for Dial Tone...5 Removable Handset and Base Plates ...5 Basic Operation ...6 Handset Features ...6 Base Features ...7...

  • Page 35: Need Help

    Congratulations on your purchase of this VTech product NEED HELP? Our representatives are here to help you with any questions concerning the operation of this product, available accessories, or any other related issues. Call Toll Free: 1-800-267-7377 In USA, Call:...
