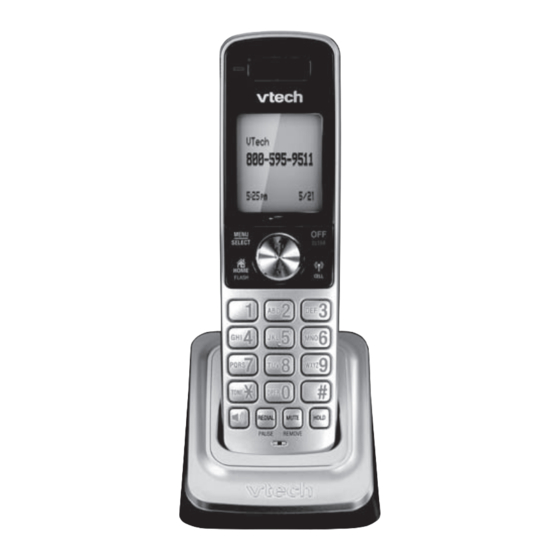

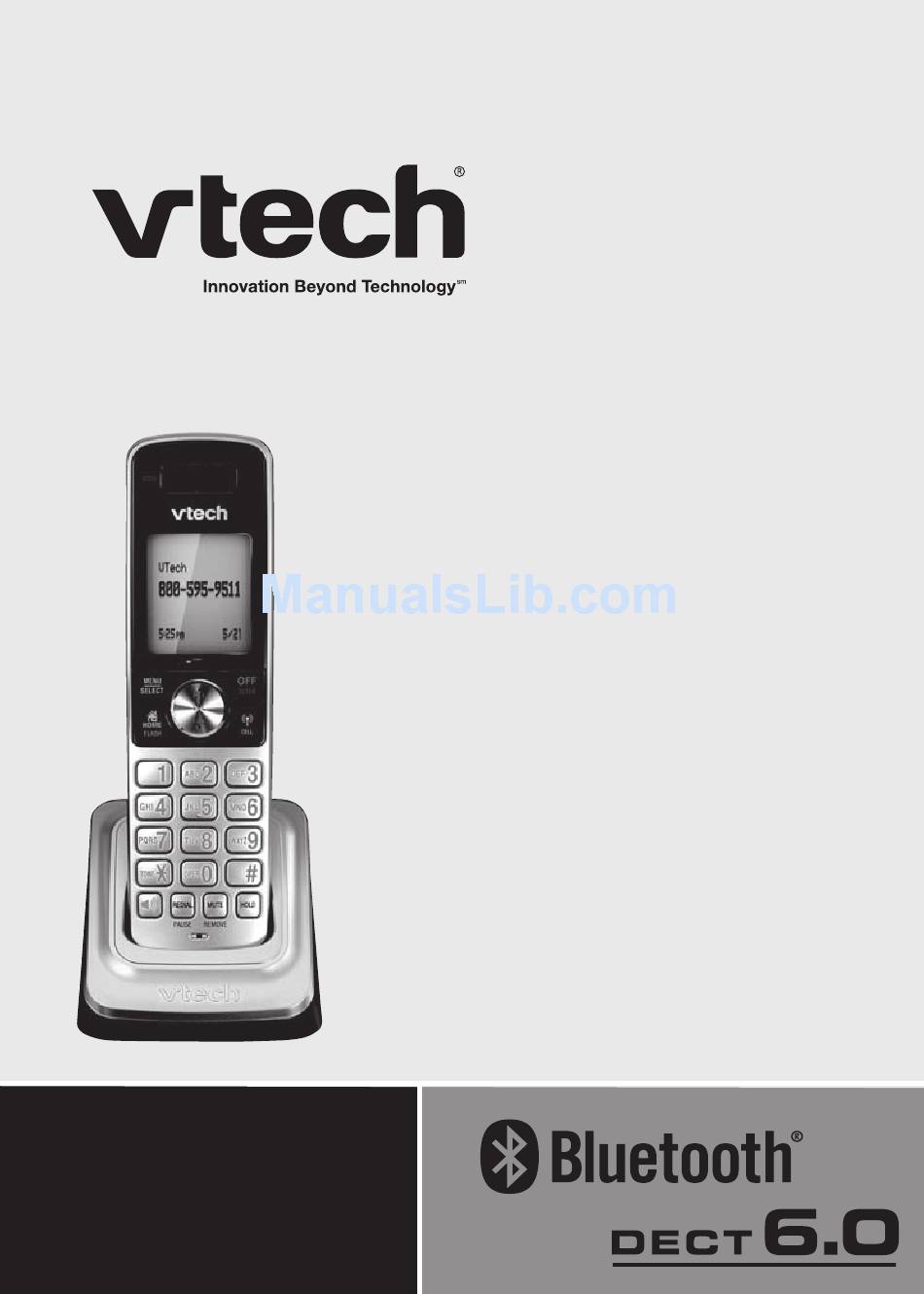

- Page 1 User’s manual Accessory handset for use with VTech models DS6311/DS6321/ DS6322 w w w.v t e c h p h o n e s . c o m Model: DS6301...
- Page 2 Bluetooth SIG, Inc. and any use of such marks by VTech Holdings Limited is under license. VTech Holdings Limited is a member of Bluetooth SIG, Inc. Other trademarks and trade names are those of their respective owners.
-
Page 3: Table Of Contents
Table of contents Getting started ... 1 Parts checklist ... 1 Battery installation ... 2 Battery charging ... 3 Add and register a handset ... 4 Replace a handset ... 5 Handset layout ... 6 Appendix ... 8 Battery ... 8 Important safety instructions ... -
Page 4: Getting Started
Getting started Parts checklist Your telephone contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary. Handset Charger and power adapter To purchase a replacement battery or a power adapter, visit our website at www.vtechphones.com or call 1 (800) 595-9511. -
Page 5: Battery Installation
Getting started Battery installation Install the battery as shown below. If the battery compartment cover is on the handset, press the indentation and slide the cover to remove. Plug the battery connector securely into the socket inside the handset battery compartment, matching the color-coded label. Place the battery with the label THIS SIDE UP facing up and the wires inside the battery compartment. -
Page 6: Battery Charging
Getting started Battery charging Once you have installed the battery, the screen indicates the battery status (see the table below). If necessary, place the handset in the telephone base or charger to charge the battery. For best performance, keep the handset in the telephone base or charger when not in use. -
Page 7: Add And Register A Handset
Getting started Add and register a handset You can add new handsets (DS6301, purchased separately) to your telephone system, but each handset must be registered with the telephone base before use. When first purchased, each expansion handset shows Press and hold FIND HANDSET on base for 4 sec, then press # on handset after a battery is installed. -
Page 8: Replace A Handset
Getting started Replace a handset If you want to replace a handset or re-assign the designated handset number of a registered handset, you must deregister all the handsets and then individually register each handset. To make deregistration easier, read all of the instructions on this page before you begin. -
Page 9: Handset Layout
Getting started Handset layout CHARGE light On when the handset is charging in the telephone base or charger. MENU/SELECT Press to show the menu. While in a menu, press to select an item, or save an entry or setting. /HOME/FLASH Press to make or answer a home call. - Page 10 Getting started Handset layout (continued) / VOL/ While in a menu, press to scroll up. During a call, press to increase the listening volume. When the handset is not in use, press to enter the directory. OFF/CLEAR During a call, press to hang up. While the handset is ringing, press to silence the ringer temporarily.
-
Page 11: Appendix
Appendix Battery It takes up to 16 hours for the battery to be fully charged. When it is fully charged, you can expect the following performance: Operation While in handset use (talking*) While in speakerphone mode (talking*) While not in use (standby**) *Operating times vary depending on your actual use and the age of the battery. -
Page 12: Important Safety Instructions
Appendix Important safety instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following: Read and understand all instructions. Follow all warnings and instructions marked on the product. Unplug this product from the wall outlet before cleaning. -
Page 13: Precautions For Users Of Implanted Cardiac Pacemakers
Appendix Precautions for users of implanted cardiac pacemakers Cardiac pacemakers (applies only to digital cordless telephones): Wireless Technology Research, LLC (WTR), an independent research entity, led a multidisciplinary evaluation of the interference between portable wireless telephones and implanted cardiac pacemakers. Supported by the U.S. Food and Drug Administration, WTR recommends to physicians that: Pacemaker patients: •... -
Page 14: About Cordless Telephones
VTech product service centers. Please call ® 1-800-8-BATTERY for information on Ni-MH battery recycling and disposal bans/restrictions in your area. VTech’s involvement in this program is part of its commitment to protecting our environment and conserving natural resources. ® RBRC is a registered trademark of Rechargeable Battery Recycling Corporation. -
Page 15: Warranty
Warranty What does this limited warranty cover? The manufacturer of this VTech Product warrants to the holder of a valid proof of purchase (“Consumer” or “you”) that the Product and all accessories provided in the sales package (“Product”) are free from defects in material and workmanship, pursuant to the following terms and conditions, when installed and used normally and in accordance with the Product operating instructions. - Page 16 Some states/provinces do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. In no event shall VTech be liable for any indirect, special, incidental, consequential, or similar damages (including, but not limited to lost profits or revenue, inability to use the Product or other associated equipment, the cost of substitute equipment, and claims by third parties) resulting from the use of this Product.
-
Page 17: Fcc, Acta And Ic Regulations
Appendix FCC, ACTA and IC regulations FCC Part 15 This equipment has been tested and found to comply with the requirements for a Class B digital device under Part 15 of the Federal Communications Commission (FCC) rules. These requirements are intended to provide reasonable protection against harmful interference in a residential installation. - Page 18 Appendix FCC, ACTA and IC regulations If this equipment is causing harm to the telephone network, the telephone service provider may temporarily discontinue your telephone service. The telephone service provider is required to notify you before interrupting service. If advance notice is not practical, you will be notified as soon as possible.
-
Page 19: Technical Specifications
Appendix Technical specifications Frequency Crystal controlled PLL synthesizer control Transmit Handset: 1921.536-1928.448 MHz frequency Telephone base: 1921.536-1928.448 MHz Channels Nominal Maximum power allowed by FCC and IC. Actual operating range effective range might vary according to environmental conditions at the time of use. - Page 20 The Bluetooth word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks by VTech Holdings Limited is under license. VTech Holdings Limited is a member of Bluetooth SIG, Inc. Other trademarks and trade names are those of their respective owners.
