• Configuration: Articulated frame
• Engine model: Volvo D7DGDE2
• Maximum net engine output
@2200 RPM (per SAE J1349):
198 - 235 hp (148 - 175 kW)
• Base weight: 35,400 lb (16 057 kg)
• Blade down force:
17,854 lb (8 099 kg)
• Blade pull:
All Wheel Drive – 28,019 lb (12 709 kg)
Tandem – 20,519 lb (9 307 kg)
• Single lever "Smart Shifter" transmission
control with gear memory feature
• Separate hydraulic pump & speed sensor
for each front wheel
• Variable aggression for job matching
• Maintains aggression at both front wheels
through turns
• Creep feature allows hydrostatic drive at
front wheels from 0-2.0 mph (0-3,2 km/h)
for optimum fine grading
• Wheel motor efficiencies maintained in both
forward and reverse
• AWD available at speeds up to 20.2 mph
(32,5 km/h)

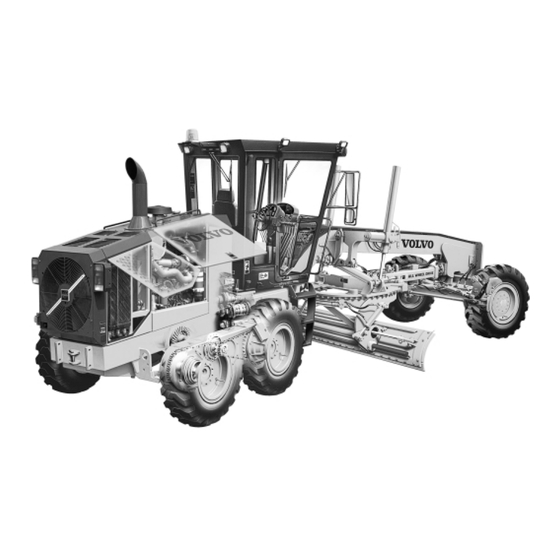

VOLVO MOTOR GRADER
G726B
ALL WHEEL DRIVE
• 8400 fully sequential direct drive powershift
transmission
• Choice of fully enclosed, ROPS cab in full
height or low profile configuration, or
ROPS canopy
• Moveable Blade Control System
• Load sensing, Closed Center Hydraulic
System
• Fully adjustable control pedestal with low
effort hydraulic controls
• Full front and rear frame sections designed
for attachment mounting
Advertisement
Related Manuals for Volvo G726B
Summary of Contents for Volvo G726B
- Page 1 • Configuration: Articulated frame • Engine model: Volvo D7DGDE2 • Maximum net engine output @2200 RPM (per SAE J1349): 198 - 235 hp (148 - 175 kW) • Base weight: 35,400 lb (16 057 kg) • Blade down force: 17,854 lb (8 099 kg) •...
- Page 2 14' x 25" x 7/8" (4 267 x 635 x 22 mm) moldboard and scarifier. G726B ....37,420 lb (16 973 kg) Productivity (Standard equipment) Maximum blade pull (no wheel slip, 0.85 traction...
- Page 3 (76 mm) diameter wheel lean cylinders " and lock valve are standard equipment. All Wheel Drive The Volvo high torque All Wheel Drive System incorporates two variable displacement, closed loop piston pumps. The Volvo AWD design automatically adjusts hydraulic flow and pressure to the drive system to match tandem wheel speeds in all tractive conditions.
- Page 4 Depth @ controls ... . 55.5" (1 410 mm) An optional Low Profile Cab is available with an inside height of 62" (1 575 mm). All Volvo Grader cabs and canopies are designed to meet or exceed SAE J1040 APR.
- Page 5 Load sensing hydraulics Closed Center Hydraulic System senses load requirements and maintains system pressure 350 psi (24 Bar) above the load pressure. System features industry standard control arrangement complete with low effort, feathering type, short throw levers located on a fully adjustable control pedestal.
- Page 6 Your safety and the safety of those around you depends on using care and judgement when operating and servicing your grader. Do not operate the grader until you read and understand the warnings and instructions in the operator’s manual. Volvo Motor Graders Limited is an ISO 9001 and 14001 registered company.
