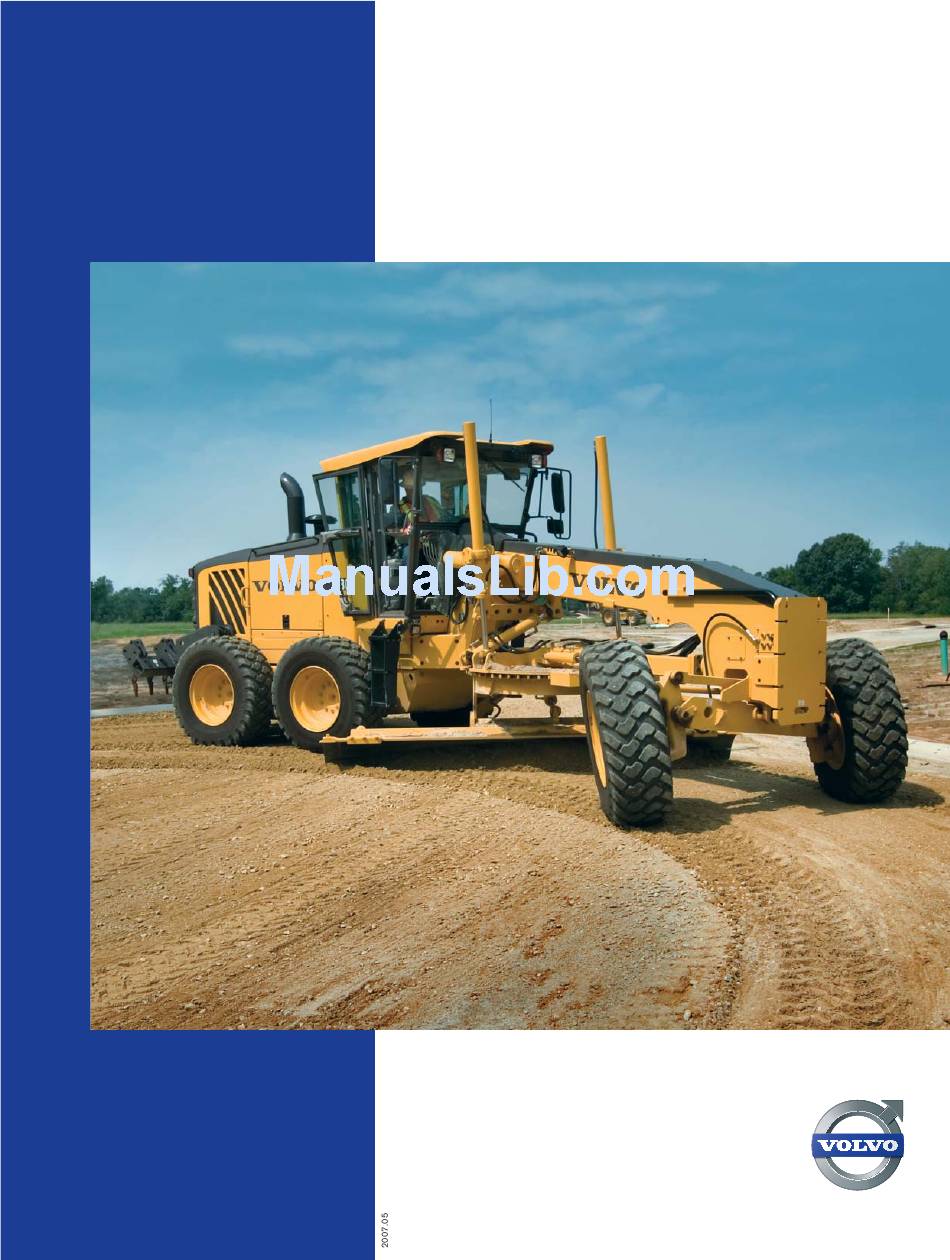

- Page 1 G930 VOLVO MOTOR GRADERS MORE CARE. BUILT IN.
-
Page 2: Specifications
10,360 (4 700) 24,470 (11 100) 42,500 (19 280) 16,700 (7 570) 31,400 (14 240) 22,023 (9 990) 28,260 (12 816) 18,021 (8 188) Volvo D7E In Line 6 436 (7,2) 24 volt - 80 amp 660 CCA 96 AH... - Page 3 Rating is @ 2100 RPM except for EU which is rated @ 1900 RPM in low and mid ranges. Transmission Fully sequential, direct drive, Volvo powershift transmission. Engine cannot be started if transmission is in gear. Single lever electronic transmission controller provides self-diagnostics and overspeed protection. Optional HTE1160 has automatic shifting and travel mode as standard equipment.
- Page 4 Spring applied hydraulically released enclosed wet multiple disc type parking brake in fi nal drive. Effective on all 4 tandem drive wheels. Transmission cannot be engaged with park brake on. Braking systems comply to SAE J/EN ISO 3450:1996. Volvo uses asbestos free brake components. G930 in (mm) 8.9 (226,5) in (mm) 24.25 (616)
- Page 5 Frame Front Minimum dimensions of box section Plate thickness Vertical section modulus at arch minimum maximum Rear Minimum dimensions Plate thickness Optional fi rst user lifetime warranty on frame, includes maintenance free articulation pins and bearings. Moldboard Standard moldboard with replaceable end bits Moldboard material Edge: through hardened Bolt spacing...
- Page 6 Circle drive The Volvo dual gear Circle Drive System uses direct acting hydraulic power for exceptional turning and holding capability under full load. Circle Drive System uses two hardened drive pinions and is protected against impact damage by an overload relief valve as standard equipment.
- Page 7 Capacities Fuel tank Transmission Final drive Tandems (each) Hydraulic oil tank Coolant antifreeze protection to -58º F (-50º C) approx Engine oil Attachments (Optional unless otherwise stated as standard equipment) Push Block Ripper includes rear frame arch support and links Mid Mount Scarifi...
- Page 8 Model (S - Standard / O - Optional) Powertrain Volvo engines meets off-road Tier 3 / Stage IIIA emission criteria - 3 power curves Rear axle, operator controlled, lock/unlock differential with planetary fi nal reduction 4 wheel wet disc braking system with crossover dual circuits and reserve power assist...
- Page 9 Gauges include: coolant temperature, engine oil pressure, fuel level, hourmeter, articulation angle indicator Multi-function Volvo Contronic Monitoring System with visual and audible warnings Deluxe, cloth covered, fully adjustable suspension seat when grader is equipped with an enclosed cab - 3" (75 mm) retractable seatbelt Deluxe air suspension, cloth covered, fully adjustable suspension seat - 3"...
- Page 10 People around the world are proud to use Volvo. And we’re proud of what makes Volvo different – More care. Built in.
