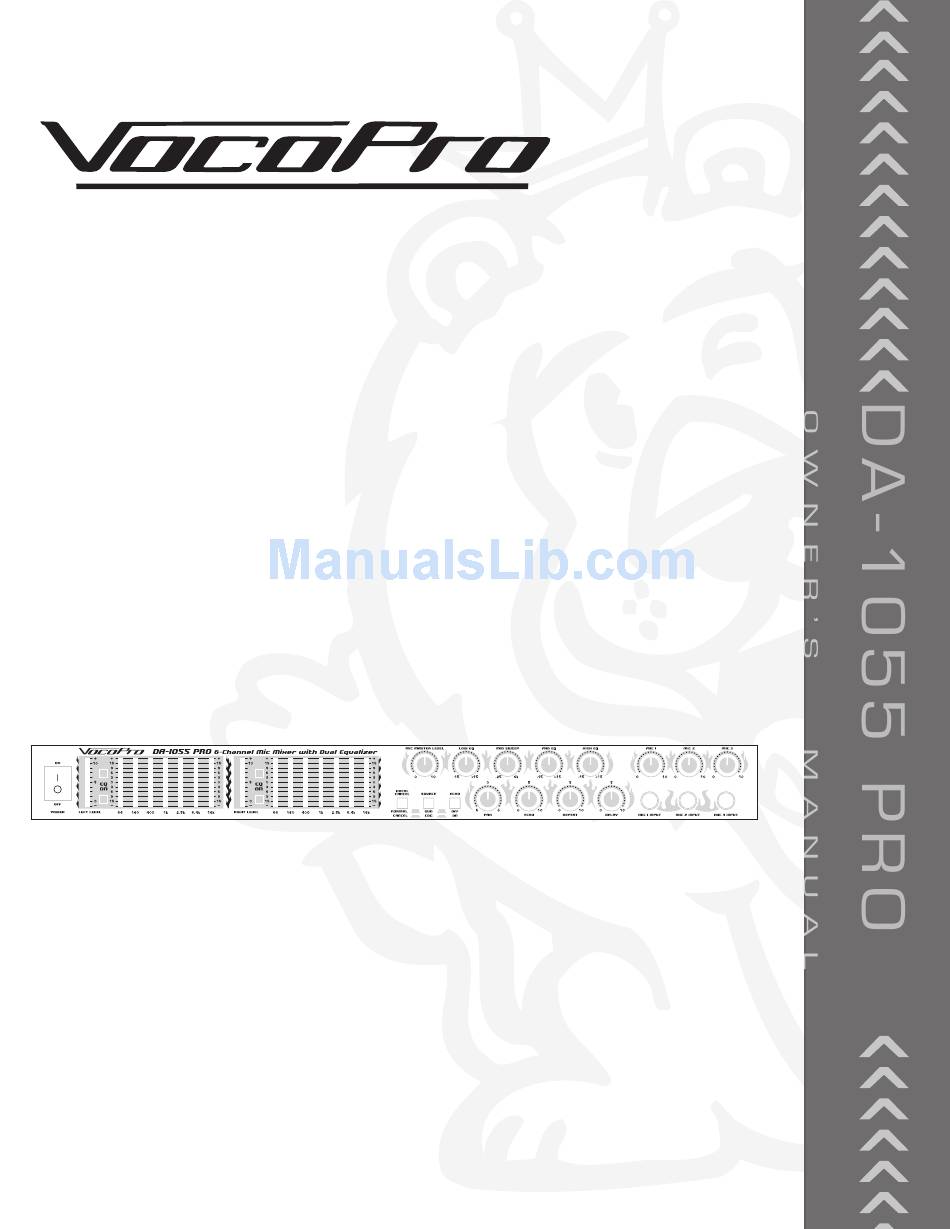

Page 1 THE SINGER'S ULTIMATE CHOICE DA-1055 PRO Professional Digital Echo Mixer with Dual Equalizers...
Page 2: Table Of Contents
Table of Contents Safety Instructions FCC Information Welcome Listening for a Lifetime Speciﬁcations and Features Getting Connected Connecting Source Players... 2 Connecting to a Sound System ... 3-4 Microphone Connections... 5 Operations Basic Operations ... 6 Microphone Operations ... 7-8 7-Band Equalizer Operations ...
Page 3: Safety Instructions
Safety Instructions CAUTION RISK OF SHOCK CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user- serviceable parts inside. Only refer servicing to qualified service personnel. Explanation of Graphical Symbols The lightning flash & arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of danger.
Page 4: Fcc Information
UNIT!: This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Vocopro may void your authority, granted by the FCC, to use this product. 2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables.
Page 5: Welcome
Club VocoPro for Karaoke news and events, chat rooms, club directories and even a Service directory! We look forward to hearing you sound like a PRO, with VocoPro, your ultimate choice in Karaoke entertainment. Please record the model number and serial number below, for easy reference, in case of loss or theft. These numbers are located on the rear panel of the unit.
Page 6: Listening For A Lifetime
Now it’s time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level.
Page 7: Speciﬁcations And Features
Speciﬁcations and Features Graphic Equalizer Section: Connector ... RCA/Unbalanced Input Impedance ... 47k�Ω Bands ... 64Hz, 160Hz, 400Hz, 1KHz, 2.5KHz, ... 6.3KHz, 16KHz Range ... +/-15 dB T.H.D ... Less than 0.01% Frequency Response ... 10Hz ~ 5 0KHz +/-1 dB Noise Ratio ...
Page 8: Getting Connected
Connecting Source Players to the DA-1055 PRO You can connect up to two A/V source players (CD+G player, DVD player, CD player, Mp3 player, etc.) to the DA-1055 PRO simultaneously using RCA audio (red & white) and video (yellow) cables.
Page 9: Connecting To A Sound System
Using the MIX 1 and 2 AUDIO OUT channels you can connect music and vocals to two different audio devices. 1. Connect an end of each RCA cable to the MIX 1 L/R RCA output jacks on the rear panel of the DA-1055 PRO.
Page 10 To connect video: 1. Connect one end of the RCA video cable to the VIDEO OUT 1 on the rear panel of the DA-1055 PRO. 2. Connect the other end to an RCA video input on a TV or video monitor.
Page 11: Microphone Connections
Getting Connected Cont. Microphone Connections The DA-1055 PRO has 6 mic input jacks, allowing you to connect up to 6 microphones using ¼” microphone cables. • Mic Volume 1 controls MIC 1 Input (front panel) and MIC 1/B Input (rear panel) •...
Page 12: Operations
It is recommended that you use a surge protector for increased protection. 1.Turning on the Power Switch the POWER button on the front panel of the DA-1055 PRO to the ON position to turn it on and switch it to the OFF position to turn it off.
Page 13: Microphone Operations
• Turn the control all the way right to output vocals to the right channel only Adjusting the Microphone Tone The DA-1055 PRO allows you to adjust the overall Low, Mid and High EQ of the microphone vocals for a more professional and clear vocal tone.
Page 14: 7-Band Equalizer Operations
2. Press the ECHO button OUT to turn Echo off. Adjusting the Echo settings: The DA-1055 PRO allows you to adjust the Repeat and Delay of the Echo effect. Repeat: The interval time between each repeat. Turning this up (clockwise) increases the time between each repeat and turning this down (counter-clockwise) decreases the time between each repeat.
Page 15: Front Panel
Descriptions and Functions Front Panel 1. Power switch - Turns the power On and Off. 2. Music Level control - Adjust the volume of source music. Move sliders up and down to increase or decrease the volume output for that channel. 3.
Page 16: Voltage Selector
Descriptions and Functions Cont. Rear Panel 1. Mic In jacks 1B, 2B, and 3B - Connect 3 additional microphones to these jacks using ¼” mic cables. 2. Stereo Mic Output (with Echo) effect for independent mixing of vocals. 3. Mix 1 & 2 (Mixer Pre-out) - Outputs (Pre-out) both microphone vocals and source player music.
Page 17: Troubleshooting
Troubleshooting Problem • There is no sound • The vocals are distorted • The music sounds distorted • Music can only be heard from on side of the speaker • Vocals can only be heard from on side of the speaker •...
