Summary of Contents for VocoPro VSP-M1

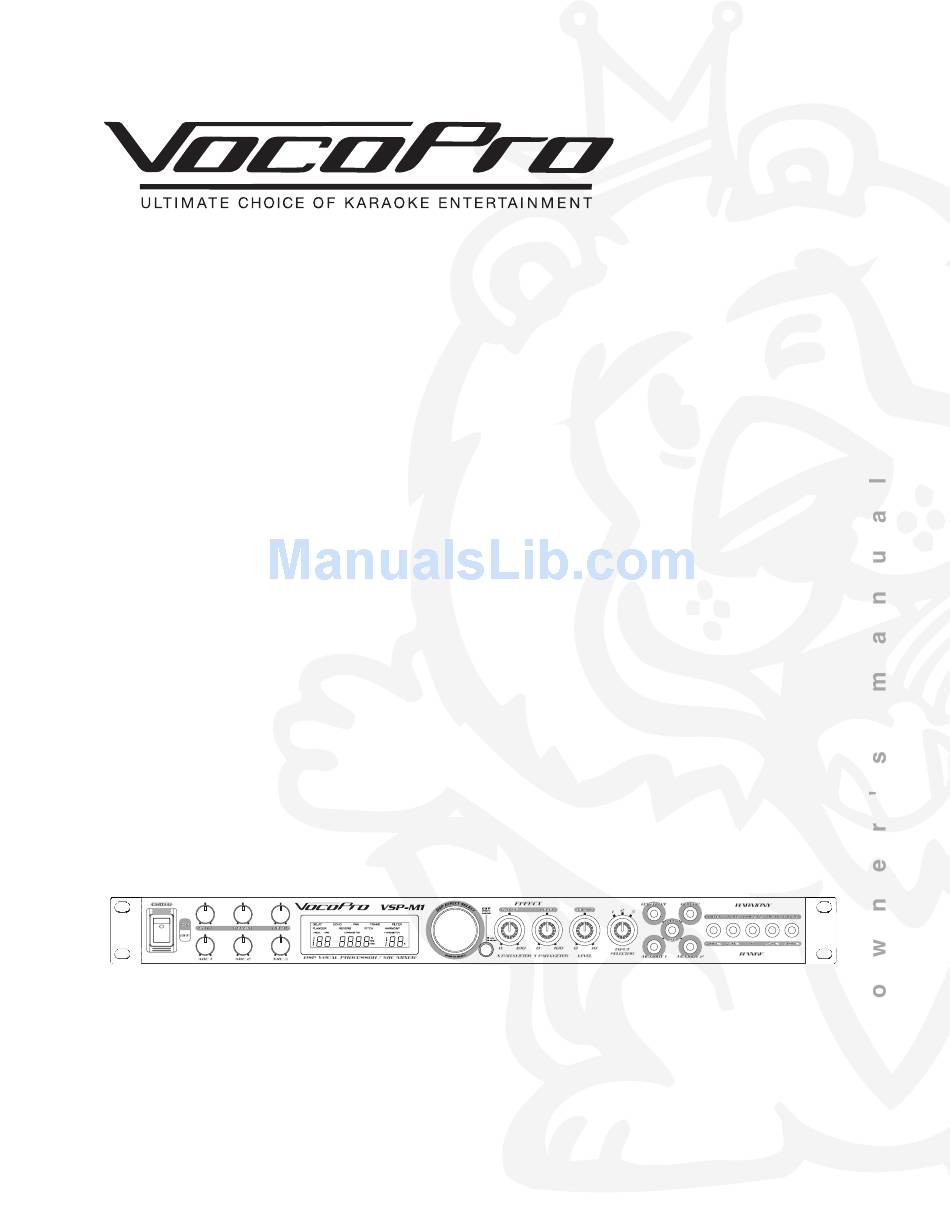

Page 1
• Mic insert allows balanced PHONO connection of external processor for stereo loop. • Digital Signal Processor effects are assignable from either music or mic input. BALANCED AUDIO OUT OUTPUT TRIM OUTPUT VSP-M1 Multi-Effect Digital Signal Processor/Mixer LA VERNE CALIFORNIA WWW.VOCOPRO.COM ECHO AUDIO IN MIC 3 MIC INSERT...
Now it s time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Association s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level.
Safety Instructions CAUTION RISK OF SHOCK CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user- serviceable parts inside. Only refer servicing to qualified service personnel. Explanation of Graphical Symbols The lightning flash & arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of danger.
Club VocoPro for Karaoke news and events, chat rooms, club directories and even a Service directory! We look forward to hearing you sound like a PRO, with VocoPro, your ultimate choice in Karaoke entertainment. Please record the model number and serial number below, for easy reference, in case of loss or theft. These numbers are located on the rear panel of the unit.
Front Panel Descriptions Front Panel 1. POWER - In the upper postion, this switch turns the VSP-M1 ON, lower position OFF. 2. ECHO - This controls the level of the ECHO effect for only MIC 1, 2 and 3, and not other input sources.
Page 7
Front Panel Descriptions Front Panel 7. DSP EFFECT SELECT - Turn this dial to scroll through ECHO, PAN, TRANS, FILTER, FLANGER, REVERB, PITCH or HARMONY and push dial to select one of these effects to apply to an input 8. DSP EFFECT ASSIGN - Push in to apply EFFECT to source music input, and release the button to the extended position to apply EFFECT to a MIC input.
18. HARMONY/RANGE - When you press each of these buttons, the LED switches from red to green. These buttons serve a dual function: a. HARMONY - The Vocal Harmonizer effect of the VSP-M1 allows you to add harmonizing, octaves or doubling notes to either a microphone or source music input.
1. BALANCED OUTPUT - Connect your Left and Right XLR cables from the VSP-M1 to balanced inputs on your mixer, amplifier or powered mixer. 2. TRIM OUTPUT - The output level from the VSP-M1 can be adjusted using this control. For the best, clean sound quality, adjust TRIM until just before the signal begins to distort.
ASSIGN The VSP-M1 is versatile as an external component in your already existing system, with amps such as the VP600X pictured above. You can also connect directly to a power amp that takes RCA L/R inputs. Or, use it to process any signal from one of these suggested types of components and others with RCA connections.
Troubleshooting Problems NO OUTPUT NO ECHO DISTORTION Solutions Faulty cables from external components should always be checked first. Try 2 different sets of RCA cables to eliminate any possibility that cables are defective. Check other components for malfunction or poor connections. If other components are compatible, try a BALANCED OUTPUT (XLR) connection first for optimum sound quality.
