Summary of Contents for VocoPro RECODE-1

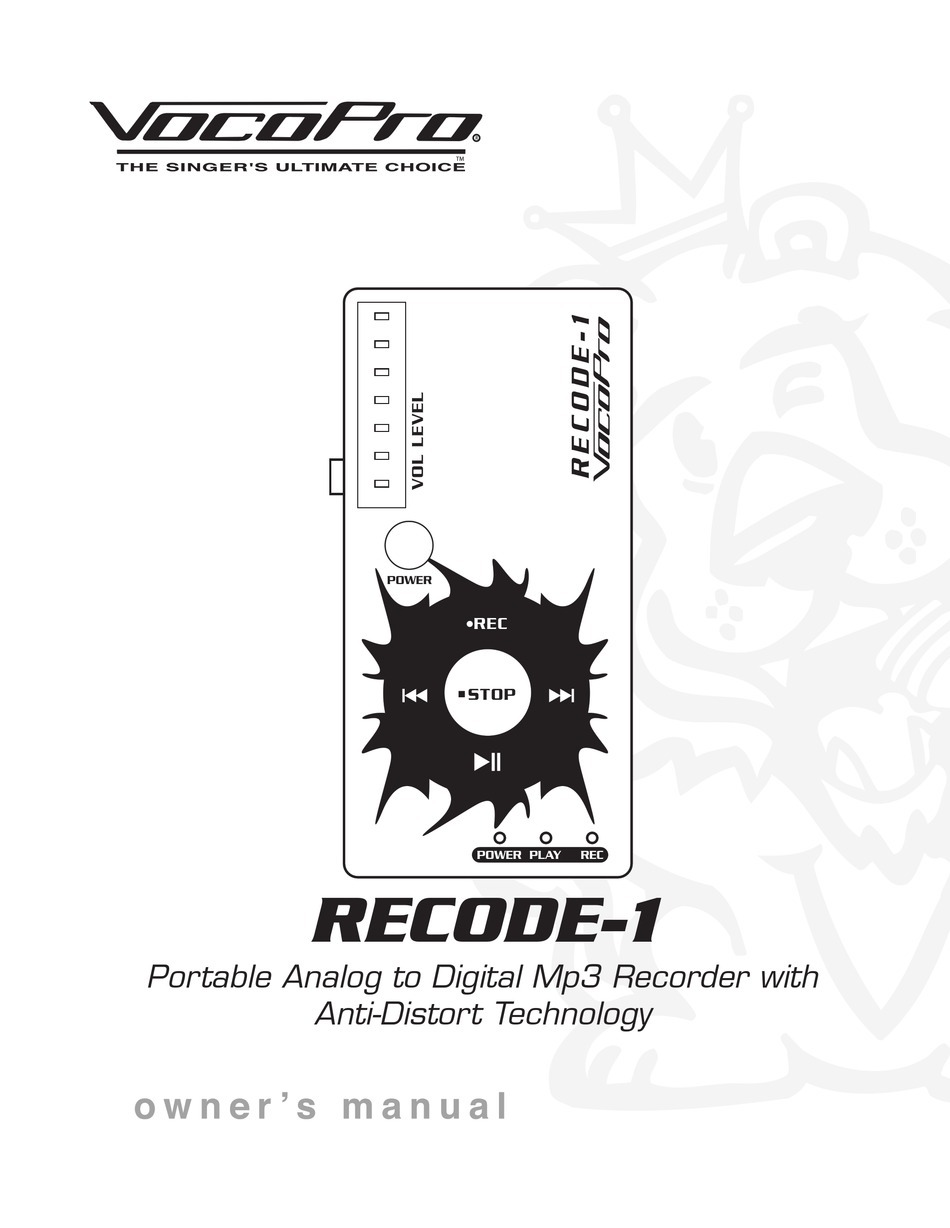

- Page 1 ����� ��� ���� ����� ���� ��� RECODE-1 Portable Analog to Digital Mp3 Recorder with Anti-Distort Technology...
-
Page 3: Table Of Contents
Returns and Warranty Getting Connected Connecting a Source to the RECODE-1 RECODE-1 Playback Mode Recording with the RECODE-1 Utilizing Expandable SD Memory Connecting the RECODE-1 to a PC or MAC Computer Descriptions & Functions Front Panel Rear Panel Bottom Panel... -
Page 4: Safety Instructions
Safety Instructions CAUTION RISK OF SHOCK CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Only refer servicing to quali- fied service personnel. Explanation of Graphical Symbols The lightning flash & arrowhead symbol, within an equilateral triangle, is intended to alert you to... - Page 5 Safety cont. power supply only of the type described in the operating instructions or as marked on the appliance. 11. Grounding or Polarization - Precautions should be taken so that the grounding or polar- ization means of an appliance is not defeated 12.
-
Page 6: Fcc Information
FCC requirements. Modifications not expressly approved by Vocopro may void your authority, granted by the FCC, to use this product. 2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables. - Page 7 FCC Information cont. Keep it in a safe place for future reference. 2. Install your unit in a cool, dry, clean place - away from windows, heat sources, and too much vibration, dust, moisture or cold. Avoid sources of hum (transform- ers, v motors).
-
Page 8: Listening For A Lifetime
Selecting fine audio equipment such as the unit you’ve just purchased is only the start of your musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. -
Page 9: Welcome
Club VocoPro for Karaoke news and events, chat rooms, club directories and even a Service directory! We look forward to hearing you sound like a PRO, with VocoPro, the singer’s ultimate choice. FOR YOUR RECORDS Please record the model number and serial number below, for easy refer- ence, in case of loss or theft. -
Page 10: Features
Features Features: • 512 MB Internal Memory - Expandable with SD Memory Card Reader (SD Card Not Incuded) • Anti-Distort Technology ensures flawless recording • Includes RCA to Stereo Cables • Review your Mp3 recordings instantly with the included Headphones •... -
Page 11: Getting Started
Getting Started Thank you for purchasing the RECODE-1. Take a few minutes to look through this manual. Before setting up, please make sure the following accessories are included. • RECODE-1 recorder/media player (1) • CARRYING BAG for RECODE-1 (1) • HEADPHONES (1) •... -
Page 12: Getting Connected
Getting Connected Connecting a Source to the RECODE-1 What you will need: • RCA to 1/8” Stereo Cable (Included) • Mixer or Audio Output Device 1. Connect one end of the cable to the output of your mixer 2. Connect the other end of the cable to the... -
Page 13: Using Headphones
What you will need: • 1/8” to RCA Cable • Headphones You are able to immediately review your tracks on the RECODE-1 as soon as the recording is com- plete Using Headphones: 1. Connect the head phones to the HEAD-... - Page 14 Getting Connected cont. Using 1/8” to RCA Cable: 1. Connect the end of the 1/8” cable to the HEADPHONE/LINE OUT on the RECODE-1’s base and connect the RCA end to an input device such as a STEREO/MIXER or AMP .
-
Page 15: Recording With The Recode-1
The RECODE-1 has 512 MB of internal memory that will provide approximately 8 hours of available time (128 kbps). 1. Power on the RECODE-1 by holding the POWER button, hold until POWER LED lights up 2. Ensure that the RECODE-1 is connected to your source via the included 1/8”... -
Page 16: Memory Card
Recording cont. Utilizing Expandable SD Memory • SD Memory Card (Not Included) 1. Ensure that the RECODE-1 is OFF 2. Insert your SD Memory Card into the slot on the bottom of the RECODE-1 3. The RECODE-1 will now record directly to the SD Memory Card 4. -
Page 17: Connecting The Recode-1 To A Pc Or
RECODE-1 2. Connect to a USB INPUT on your PC or MAC computer 3. The RECODE-1 will appear as a single drive if there is no SD card present, two drives will appear if there is an SD card present. -
Page 18: Descriptions & Functions
8. RECORD INDICATOR - This will be lit red to indicate record mode is enabled. 9. VOLUME LEVEL INDICATOR - These lights indicate the volume output level of the RECODE-1. The volume is at the maximum level when all of... - Page 19 Descriptions cont. the red lights are lit. The level indicator will stay lit after power on if battery power is low. � � � � � ����� ��� ���� ����� ���� � � � � ��� �...
-
Page 20: Left Side View
Descriptions cont. REAR VIEW 10. BATTERY COMPARTMENT - Slide the cover upwards to reveal the compartment for the single AAA battery. LEFT SIDE VIEW 11. USB SLIDER - Slide this upwards to reveal the USB connector for transferring files to or from your computer. -
Page 21: Bottom View
1/8” to RCA line to connect to any RCA input capable device. 14. SD CARD SLOT - Insert an SD memory card here to expand the RECODE-1’s memory. To remove the card, press the card in to release TOP VIEW 15. -
Page 22: Troubleshooting
3. Recording file cuts off unexpectedly during playback • The memory on the RECODE-1 filled up before you ended the recording session. Clear the memory prior to your next session. Also, use the expandable SD Memory for increased storage. - Page 23 Troubleshooting cont. 5. The recording sounds too loud or too quiet when it is played back • Check the volume level of the RECODE-1 and set it to a satisfactory setting.
