Note: Some functions, such as RGB triplets, windows patterns, APL patterns, and
Dolby Vision can be accessed ONLY with CalMAN software.

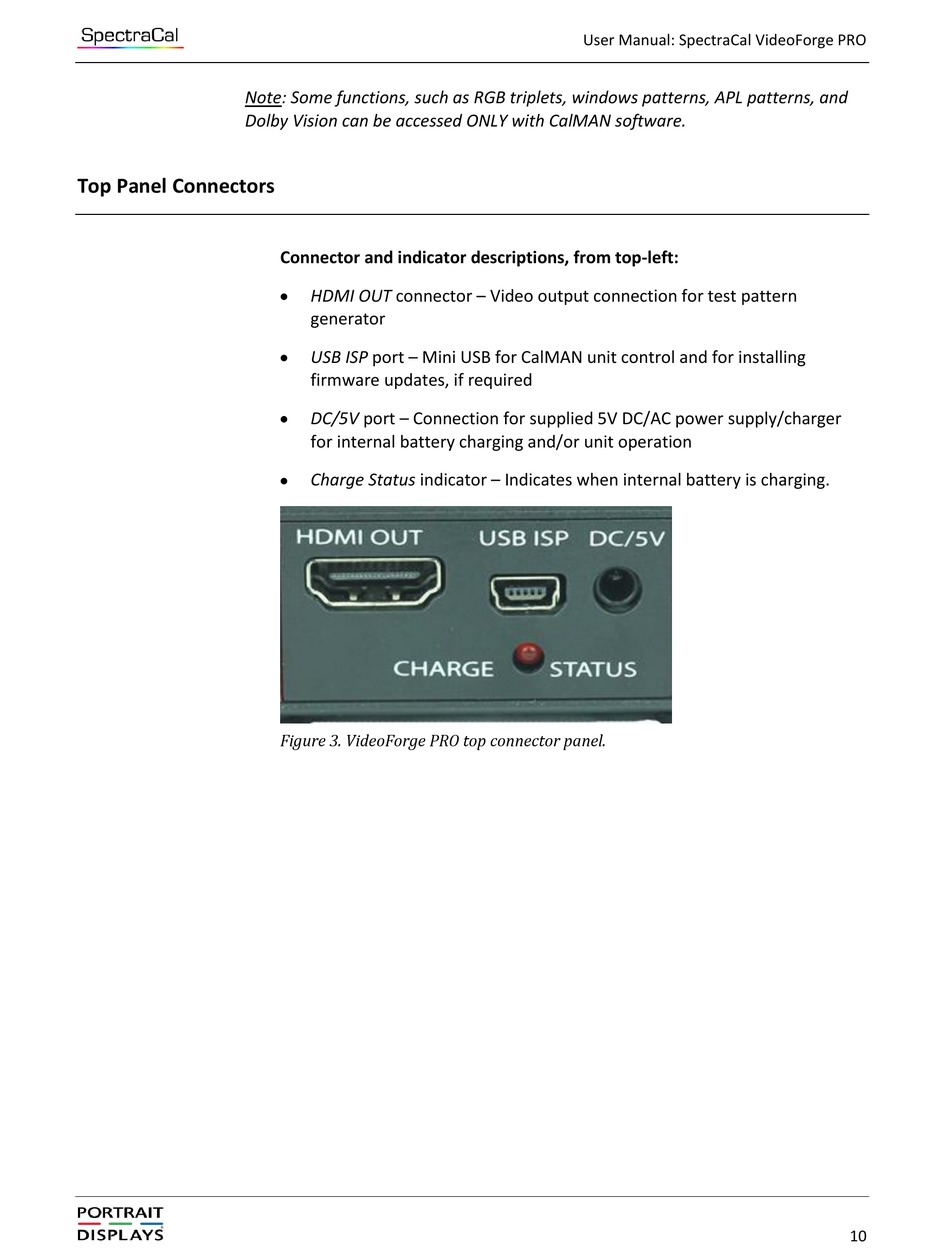

Top Panel Connectors
Connector and indicator descriptions, from top-left:

HDMI OUT connector – Video output connection for test pattern
generator

USB ISP port – Mini USB for CalMAN unit control and for installing
firmware updates, if required

DC/5V port – Connection for supplied 5V DC/AC power supply/charger
for internal battery charging and/or unit operation

Charge Status indicator – Indicates when internal battery is charging.
Figure 3. VideoForge PRO top connector panel.
