Summary of Contents for Vivitek D7 Series
- Page 1 User Manual 用戶手冊 用户手册 Manual del usuario Manuel de l'utilisateur Benutzerhandbuch 사용자 설명서 Руководство пользователя Gebruikershandleiding Instrukcja obsługi Uživatelská příručka Εγχειρίδιο χρήσης Kullanım Kılavuzu Manuale d'uso Handbok Brugervejledning Brukerveiledning Käyttöohje D7 Series Felhasználói kézikönyv ﻡﺩﺥﺕﺱﻡﻝﺍ ﻝﻱﻝﺩ Manual do Usuário...
- Page 2 Copyright This publication, including all photographs, illustrations and software, is protected under international copy- right laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. © Copyright 2010 Disclaimer The information in this document is subject to change without notice.
-
Page 3: Important Safety Information
DLP Projector – User’s Manual Important Safety Information Important: It is strongly recommended that you read this section carefully before using the projector. These safety and usage instructions will ensure that you enjoy many years of safe use of the projector. Keep this manual for future reference. -
Page 4: Projector Installation Notice
Preface Projector Installation Notice Place the projector in a horizontal position The tilt angle of the projector should not exceed 15 degrees, nor should the projector be installed in any way other than the desktop and ceiling mount, otherwise lamp life could decrease dramatically. Allow at least 50 cm clearance around the exhaust vent. - Page 5 DLP Projector – User’s Manual Power Safety Only use the supplied power cord. Do not place anything on the power cord. Place the power cord where it will not be in the way of foot traffic. Remove the batteries from the remote control when storing or not in use for a prolonged period. Replacing the Lamp Replacing the lamp can be hazardous if done incorrectly.
- Page 6 Main Features • Lightweight unit, easy to pack away and transport. • Compatible with all major video standards including NTSC, PAL, and SECAM. • A high brightness rating allows for presentations in daylight or in lit rooms. • Supports resolutions up to UXGA at 16.7 million colors to deliver crisp, clear images. •...
-
Page 7: Table Of Contents
DLP Projector – User’s Manual GETTING STARTED ... 1 ... 1 ACKING HECKLIST ... 2 IEWS OF ROJECTOR ARTS Front-right View ... 2 Rear view ... 3 Bottom view... 4 ... 5 EMOTE ONTROL ARTS EMOTE ONTROL PERATING ROJECTOR AND EMOTE ONTROL SETUP AND OPERATION... - Page 8 LED E ... 46 RROR ESSAGES ... 46 MAGE ROBLEMS ... 47 ROBLEMS ... 47 EMOTE ONTROL ROBLEMS ... 47 UDIO ROBLEMS AVING THE ROJECTOR ERVICED HDMI Q & A ... 48 SPECIFICATIONS... 49 ... 49 PECIFICATIONS ROJECTION ISTANCE VS ROJECTION Projection Distance and Size Table ...
-
Page 9: Getting Started
Packing Checklist Carefully unpack the projector and check that the following items are included: EMOTE CONTROL (WITH TWO AAA BATTERIES) CD-ROM ’ S MANUAL Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work. It is recommend that you keep the original packing material should you ever need to return the equipment for warranty service. -

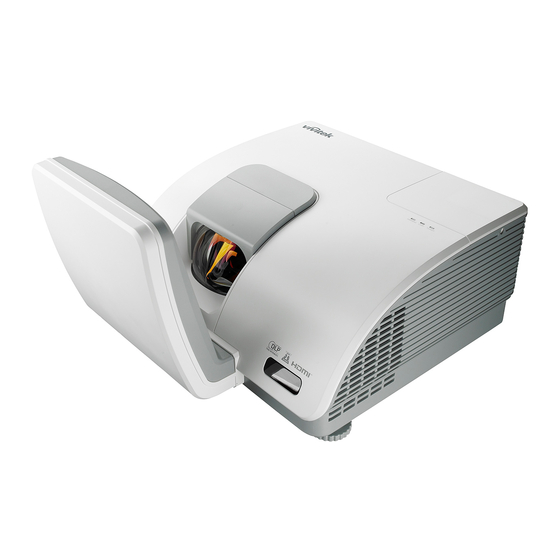

Page 10: Views Of Projector Parts
DLP Projector – User’s Manual Views of Projector Parts Front-right View ABEL Lamp cover Kensington lock Security bar Lens Aspheric mirror WARNING LED LAMP LED POWER LED Important: Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp cool. -
Page 11: Rear View
Rear view ABEL VGA OUT RS-232 VGA – 1 VGA – 2 RJ – 45 S-VIDEO IN VIDEO IN AC IN HDMI AUDIO IN AUDIO OUT Note: If your video equipment has various input sources, it is recommended to connect in priority of HDMI /DVI, component (thru VGA), S-Video, Composite for better picture quality. -
Page 12: Bottom View
DLP Projector – User’s Manual Bottom view 56.00 146.00 236.00 ABEL Security bar Tilt adjustors Ceiling support holes Note: When installing, ensure that you use only UL Listed ceiling mounts. For ceiling installations, use approved mounting hardware and M4 screws with a maximum screw depth of 12 mm (0.47 inch). -
Page 13: Remote Control Parts
DLP Projector – User’s Manual Remote Control Parts Important: 1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency fluo- rescent lights can disrupt remote control operation. 2. Be sure nothing obstructs the path between the remote control and the projector. If the path be- tween the remote control and the projector is obstructed, you can bounce the signal off certain reflective surfaces such as projector screens. - Page 14 DLP Projector – User’s Manual ABEL IR transmitter Status LED Laser Right Down Page Down Up cursor Right cursor Down cursor Volume +/- Mute Zoom+ Zoom- Freeze Blank Source Auto Menu Status Keystone top/bottom Left cursor Enter Page Up Left Enter Power Laser...
-
Page 15: Remote Control Operating Range
Remote Control Operating Range The remote control uses infrared transmission to control the projector. It is not necessary to point the remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or the rear of the projector, the remote will function well within a radius of about 7 meters (23 feet) and 15 degrees above or below the projector level. -
Page 16: Setup And Operation
DLP Projector – User’s Manual Inserting the Remote Control Batteries Remove the battery compartment cover by sliding the cover in the direction of the arrow. Insert the battery with the positive side facing up. Replace the cover. Caution: 1. Only use AAA batteries (Alkaline batteries are recommended). 2. -
Page 17: Connecting Input Devices
Connecting Input Devices A PC or notebook computer and video devices can be connected to the projector at the same time. Video devices include DVD, VCD, and VHS players, as well as movie camcorders and digital still cameras. Check the user manual of the connecting device to confirm it has the appropriate output connector. ABEL VGA OUT RS-232... - Page 18 DLP Projector – User’s Manual ABEL AUDIO IN AUDIO OUT ！ Warning: As a safety precaution, disconnect all power to the projector and connecting devices before making connections. ESCRIPTION Connect an audio cable from the input device Connect an audio cable from the output device –...
-
Page 19: Starting And Shutting Down The Projector
Starting and Shutting down the Projector Connect the power cord to the projector. Connect the other end to a wall outlet. The POWER LED on the projector light. Turn on the connected devices. Ensure the POWER LED displays a solid orange. Then press the POWER of the remote button jector. - Page 20 DLP Projector – User’s Manual When the “Power Off? /Press Power again” message appears, press the POWER button. The projector turns off. Caution: Do not unplug the power cord until the POWER LED change to orange–indicating the projector has cooled down. –...
-
Page 21: Setting An Access Password (Security Lock)
Setting an Access Password (Security Lock) You can use the four (arrow) buttons to set a password and prevent unauthorized use of the projector. When enabled, the password must be entered after you power on the projector. (See Navigating the OSD on page 18 and Setting the OSD Language on page 19 for help on using OSD menus.) Important: Keep the password in a safe place. - Page 22 DLP Projector – User’s Manual You can use the cursor buttons ▲▼◄► either on keypad or IR remote control for password entry. You can use any combination including the same arrow five times, but not less than five. Press the cursor buttons in any order to set the password.
-
Page 23: Adjusting The Projector Level
Adjusting the Projector Level Take note of the following when setting up the projector: • The projector table or stand should be level and sturdy. • Position the projector so that it is perpendicular to the screen. • Remove the Back Foot Holder on the rear adjuster foot before adjusting the projection angle. -
Page 24: Adjusting The Keystone
DLP Projector – User’s Manual Adjusting the Keystone Use the KEYSTONE buttons the remote control to correct image-trapezoid (wider top or bottom) effect. The keystone control appears on the display. Volume – 16 –... -
Page 25: Adjusting The Volume
Adjusting the Volume Press the Volume +/- buttons on the remote control. The volume control appears on the display. Press the MUTE button to turn off the volume DLP Projector – User’s Manual Volume – 17 –... -
Page 26: On-Screen Display (Osd) Menu Settings
DLP Projector – User’s Manual OSD Menu Controls The projector has an OSD that lets you make image adjustments and change various settings. Navigating the OSD You can use the remote control cursor buttons or the buttons on the top of the projector to navigate and make changes to the OSD. -
Page 27: Setting The Osd Language
DLP Projector – User’s Manual Setting the OSD Language Set the OSD language to your preference before continuing. 1. Press the MENU button. Press the cursor ◄► button to navigate to Installation I. 2. Press the cursor ▲▼ button until Language is highlighted. 3. -
Page 28: Osd Menu Overview
DLP Projector – User’s Manual OSD Menu Overview Use the following illustration to quickly find a setting or determine the range for a setting. Image Presentation, Bright, Game, Movie, TV, Display Mode sRGB, User Brilliant Color 0 ~ 10 Brightness 0 ~ 100 Contrast 0 ~ 100... -
Page 29: Osd Sub-Menu Overview
DLP Projector – User’s Manual OSD Sub-Menu Overview – 21 –... -
Page 30: Image Menu
DLP Projector – User’s Manual Image Menu Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Image Menu. Press the cursor ▲▼ button to move up and down in the Image menu. Press ◄► to change values for settings. -
Page 31: Advanced Feature
Advanced Feature Press the Menu button to open the OSD menu. Press ◄► to move to the Image menu. Press ▼▲ to move to the Advanced menu and then press Enter or ►. Press ▼▲ to move up and down in the Advanced menu. -
Page 32: Color Manager
DLP Projector – User’s Manual Color Manager Press (Enter) / ► to enter the Color Manager sub menu. Select to enter the Red Color Manager. Press the ◄► buttons to adjust the Hue, Saturation, and Gain. Select to enter the Green Color Manager. Green Press the ◄►... -
Page 33: Computer Menu
Computer Menu Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Com- puter menu. Press the cursor ▲▼ button to move up and down in the computer menu. Press ◄► to change values for settings. -
Page 34: Video/Audio Menu
DLP Projector – User’s Manual Video/Audio Menu Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Video/Audio menu. Press the cursor ▲▼ button to move up and down in the Video/Audio menu. Press ◄►... -
Page 35: Audio
Audio Press (Enter) / ► to enter the Audio sub menu. Volume Press the ◄► buttons to adjust the audio volume. Mute Press the ◄► buttons to turn on or off the speaker. Press the cursor ◄► button to select audio input. Audio Input (Range: Mini ~ RCA) DLP Projector –... -
Page 36: Installationi Menu
DLP Projector – User’s Manual Installation I Menu Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Installa- tion I menu. Press the cursor ▲▼ button to move up and down in the Installation I menu. Press ◄►... -
Page 37: Advanced Feature
Advanced Feature Press the Menu button to open the OSD menu. Press ◄► to move to the Installation I menu. Press ▲▼ to move to the Advanced menu and then press Enter or ►. Press ▲▼ to move up and down in the Advanced menu. -
Page 38: Installation Ii Menu
DLP Projector – User’s Manual Installation II Menu Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Installa- tion II menu. Press the cursor ▲▼ button to move up and down in the Installation II menu. Auto Source Press the cursor ◄►... -
Page 39: Advanced Feature
Advanced Feature Press the Menu button to open the OSD menu. Press ◄► to move to the Installation II menu. Press ▲▼ to move to the Advanced menu and then press Enter or ►. Press ▲▼ to move up and down in the Advanced menu. -
Page 40: Osd Menu Setting
DLP Projector – User’s Manual OSD Menu Setting Menu Position Press ◄► button to select different OSD location. Translucent Menu Press ◄► button to select OSD background translucent level. Menu Display Press ◄► button to select OSD timeout delay. Peripheral Test Remote Control Test Press Color Test... -
Page 41: Lamp Hour Reset
Lamp Hour Reset Please refer to Resetting the Lamp on page 42 to reset the lamp hour counter. Press ◄► to select Off, DLP-Link or IR. 3D Sync Invert Press ◄► to turn 3D Sync Invert On or Off. DLP Projector – User’s Manual ESCRIPTION –... -
Page 42: Network
DLP Projector – User’s Manual Network Network State Displays the network connection status. Press ◄► to turn DHCP On or Off. DHCP Note: If you select DHCP Off, complete the IP Address, Subnet Mask, Gateway, and DNS fields. IP Address Enter a valid IP address if DHCP is turned off. -
Page 43: Lan-Rj45
For simplicity and ease of operation, the projector provides diverse networking and remote management features. The LAN/RJ45 function of the projector through a network, such as remotely manage: Power On/Off, Brightness and Contrast settings. Also, projector status information, such as: Video-Source, Sound-Mute, etc . - Page 44 DLP Projector – User’s Manual 3. Right-click on Local Area Connection, and select Properties. 4. In the Properties window, select the General tab, and select Internet Protocol (TCP/IP). 5. Click Properties. 6. Click Use the following IP address and fill in the IP address and Subnet mask, then click OK. –...
- Page 45 7. Press the Menu button on the projector. Select Installation II → Advanced→ Network. After getting into Network, input the following: DHCP: Off IP Address: 10.10.10.10 Subnet Mask: 255.255.255.0 Gateway: 0.0.0.0 DNS Server: 0.0.0.0 10. Press (Enter) / ► to confirm settings. Open a web browser (for example, Microsoft Internet Explorer with Adobe Flash Player 9.0 or higher).
- Page 46 DLP Projector – User’s Manual ATEGORY Crestron Control Projector Network Configuration User Password Admin Password For more information, please visit http://www.crestron.com. IP Address IP ID Port Projector Name Location Assigned To DHCP (Enabled) (N/A) IP Address Subnet Mask Default Gateway DNS Server Enabled (N/A)
-
Page 47: Factory Reset
Factory Reset Press the cursor ▲▼ button to move up and down in the Installation II menu. Select the Factory Reset sub menu and press (expect Language and Security Lock). Status Press the cursor ▲▼ button to move up and down in the Installation II menu. Select the Installation II sub menu and press Active Source Display the activated source. -
Page 48: Maintenance And Security
DLP Projector – User’s Manual Replacing the Projection Lamp The projection lamp should be replaced when it burns out. It should only be replaced with a certified replacement part, which you can order from your local dealer. Important: a. The projection lamp used in this product contains a small amount of mercury. b. - Page 49 Remove the two screws from the lamp module. Lift the module handle up. Pull firmly on the module handle to remove the lamp module. Reverse steps 1 to 5 to install the new lamp module. While installing, align the lamp module with the connector and ensure it is level to avoid damage.
-
Page 50: Resetting The Lamp
DLP Projector – User’s Manual Resetting the Lamp After replacing the lamp, you should reset the lamp hour counter to zero. Refer to the following: Press the MENU button to open the OSD menu. Press the cursor to the Installation II menu. Press the cursor button to move down to Advanced. -
Page 51: Cleaning The Projector
Cleaning the Projector Cleaning the projector to remove dust and grime will help ensure trouble-free operation. Warning: 1. Be sure to turn off and unplug the projector at least 30 minutes before cleaning. Failure to do so could result in a severe burn. 2. -
Page 52: Using The Physical Lock
DLP Projector – User’s Manual Using the Physical Lock Using the Kensington If you are concerned about security, attach the projector to a permanent object with the Kensington slot and a security cable. Note: Contact your vendor for details on purchasing a suitable Kensington security cable. The security lock corresponds to Kensington’s MicroSaver Security System. -
Page 53: Troubleshooting
Common problems and solutions These guidelines provide tips to deal with problems you may encounter while using the projector. If the problem remains unsolved, contact your dealer for assistance. Often after time spent troubleshooting, the problem is traced to something as simple as a loose con- nection. -
Page 54: Led Error Messages
DLP Projector – User’s Manual LED Error Messages RROR ESSAGES Power On Power Off Cooling Over Temperature Thermal Break Sensor error Burner Fan error Lamp Fan error Lamp Door Open DMD error In the event of an error, please disconnect the AC power cord and wait for one (1) minute before re- starting the projector. -
Page 55: Lamp Problems
Lamp Problems Problem: There is no light from the projector 1. Check that the power cable is securely connected. 2. Ensure the power source is good by testing with another electrical device. 3. Restart the projector in the correct order and check that the Power LED is green. 4. -
Page 56: Hdmi Tmq & A
DLP Projector – User’s Manual HDMI Q & A Q. What is the difference between a “Standard” HDMI HDMI cable? Recently, HDMI High-Speed cables. ․Standard (or “category 1”) HDMI or up to 2.25Gbps, which is the equivalent of a 720p/1080i signal. ․High Speed (or “category 2”) HDMI 340Mhz or up to 10.2Gbps, which is the highest bandwidth currently available over an HDMI... -
Page 57: Specifications
Specifications Model name Display type Resolution Projection distance Projection screen size Projection lens Vertical keystone correction Projection methods Data compatibility SDTV/EDTV/ HDTV Video compatibility H-Sync V-Sync Safety certification Operation temperature Dimensions AC Input Power consumption Stand By Lamp Audio speaker Input Terminals Output Terminals Control Terminals... -
Page 58: Projection Distance And Size Table
DLP Projector – User’s Manual Projection Distance vs. Projection Size Projection Distance and Size Table D795WT Distance 62.3+/-10mm Diagonal 97" Image height 2089mm Image Width 1305mm 440+/-50mm Image Width WXGA 16:10 22.4+/-10mm 87" 1868mm 1167mm 342+/-50mm – 50 – Image Height... -
Page 59: Timing Mode Table
Timing Mode Table The projector can display several resolutions. The following table outlines the resolutions that can be displayed by the projector. IGNAL ESOLUTION NTSC — PAL/SECAM — 720 x 400 640 x 480 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600... - Page 60 DLP Projector – User’s Manual IGNAL ESOLUTION 720p 720p 1080i 1080i HDTV 1080p 1080p 1080p 1080p 1080p O: Frequency supported —: Frequency not supported The resolution of the panel for the D795WT is 1280 x 800. Resolution other than native resolution may display with uneven size of text or lines.
-
Page 61: Projector Dimensions
DLP Projector – User’s Manual Projector Dimensions 354.00 – 53 –... -
Page 62: Regulatory Compliance
DLP Projector – User’s Manual FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device pur- suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 63 2010 Vivitek Corporation. All rights reserved. All trademarks are the property of their respective owners. All specifications are subject to change without prior notice. 201009...
